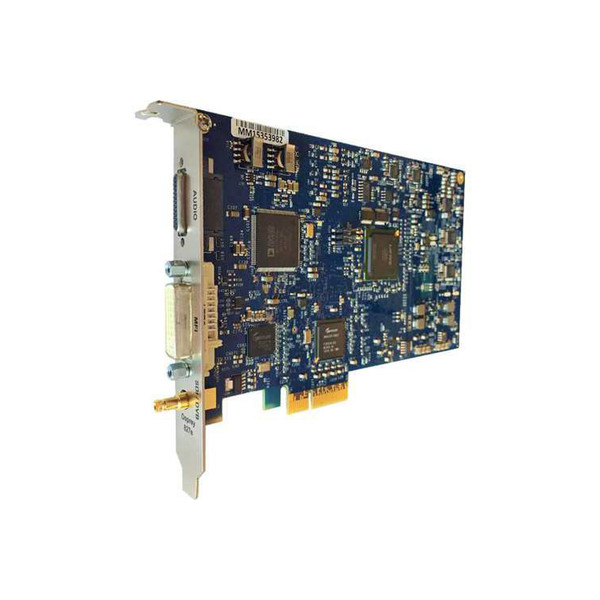

Osprey 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Audio

Osprey Video

Osprey 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Audio

DISCONTINUED, PLEASE CONTACT US FOR ITS REPLACEMENT

Part Number:
95-00487
UPC:
850189006238
Condition:
New
1:
Supports Component, S-Video, and VGA/XVGA
2:
Microsoft DirectShow API & Linux V4L2 Driver Support
3:
Card Automatically Replaces Lost Video
4:
Allows Each Input To Produce Multiple Parallel Output
5:
Free Shipping & 2-Year Osprey Warranty

Out of stock

We are sorry but the Osprey 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Audio is no longer available and has been discontinued by the manufacturer. We've left this page up for reference only.

Please call us at 833-965-3722 immediately for the replacement product.

This Osprey 95-00487 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Composite, Audio: SDI, AES/EBU, SPDIF, ANALOG, HDMI lets you input up to two video streams simultaneously. Either stream can be SD or HD in analog or digital. One card input features a DIN 1.0/2.3 coax connecter that can be adapted (adapter sold separately) to BNC for 3G-SDI, HD-SDI, SD-SDI, or composite BNC inputs . The second input connector is DVI-I, which can input VGA, HDMI, or DVI signals via the included adapters.

The Osprey 827e features SimulStream. It supports various video pre-processing features such as VBI/VANC closed-caption extraction/on-screen rendering, logo/bitmap overlay, scaling, cropping, de-interlacing, inverse telecine, ProcAmp control, Vector Scope, and Lumi Scope.

Osprey 95-00487 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Composite, Audio: SDI, AES/EBU, SPDIF, ANALOG, HDMI Features:

  • Supported Video Formats: sprey 827e supports 3G-SDI (424M), HD-SDI (292M), SD-SDI (259M), DVB-ASI MPTS/SPTS (Windows only), DVI, HDMI, Composite/CVBS, Component, S-Video, and VGA/XVGA.
  • Supported Audio Formats: 827e supports AES/EBU, SPDIF, and balance audio via the XLR. Via 4-channel LCPM, it supports HDMI. The card also supports unbalanced audio via RCA and embedded SDI via the four stereo pair.
  • Osprey SimulStream: SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.
  • Signal Loss: n the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text overlay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.
  • Driver Support: 827e supports Microsoft DirectShow API and Linux V4L2

Why not buy this Osprey 95-00487 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Composite, Audio: SDI, AES/EBU, SPDIF, ANALOG, HDMI today?

Osprey 95-00487 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Composite, Audio: SDI, AES/EBU, SPDIF, ANALOG, HDMI Specifications:

  • Driver Support
    • Microsoft Windows
    • Linux
  • Video Connectors
    • 1 x DIN 1.0/2.3
    • 1 x DVI-I
  • Video Inputs
    • SDI; HDMI (non HDCP); DVI; VGA; Composite, component (YPbPr); YCA via the included cables
  • Connectivity
    • PCI Express: x 4
    • Slots: x 4, x 8, or x 16
    • PCIe 1.1
  • Resolution
    • Video Modes: 1080i 50, 59.94, 60; 1080p 23.98, 24, 25, 29.97, 30; 720p 23.98, 24, 25, 29.97, 50, 59.94, 60; 480i 60, 59.94 (NTSC); 576i 50 (PAL); 576p 25, 50
    • Analog Modes: 1920 x 1080/23.98, 24, 25, 50, 59.94, 60; 1600 x 1200/60; 1400 x 1050/60, 75; 1360 x 768/60; 1280 x 1024/60, 85; 1280 x 960/60, 85; 1280 x 800/60; 1280 x 768/75, 85; 1280 x 720/50, 60; 1024 x 768/60, 85; 800 x 600/85; 640 x 480/60, 85
  • Audio Input
    • Balanced analog audio (2 stereo pair, 4 x mini XLR) always available
    • Two additional pairs from list below:
    • AES digital audio (2 stereo pair, 2 x mini XLR)
    • SPDIF digital audio (2 stereo pair, 2 x RCA)
    • Unbalanced analog audio (2 stereo pair, 4 x RCA)
  • System Recommendations (Minimum): PCIe bus with direct access to the CPU
  • Operating Temperature: 32 to 104°F (0 to 40° C)
  • Non-Operating Temperature: -40 to 167°F (-40 to 75°C)
  • Operating Relative Humidity: Between 5 % and 80 % (non-condensing)
  • Non-Operating Relative Humidity: 95% RH (non-condensing); gradient 30% per hour
  • Altitude (Operating): 0 to 10,000' (0 to 3,048 m)
  • Altitude (Non-Operating): 0 to 50,000' (0 to 15,240 m)
  • Dimensions: 6.60 x 4.38" (16.76 x 11.13 cm)

Why not buy this Osprey 95-00487 827e 1x 3G SDI, ASI plus 1x HDMI, VGA, Component, S-Video, Composite, Audio: SDI, AES/EBU, SPDIF, ANALOG, HDMI today?
