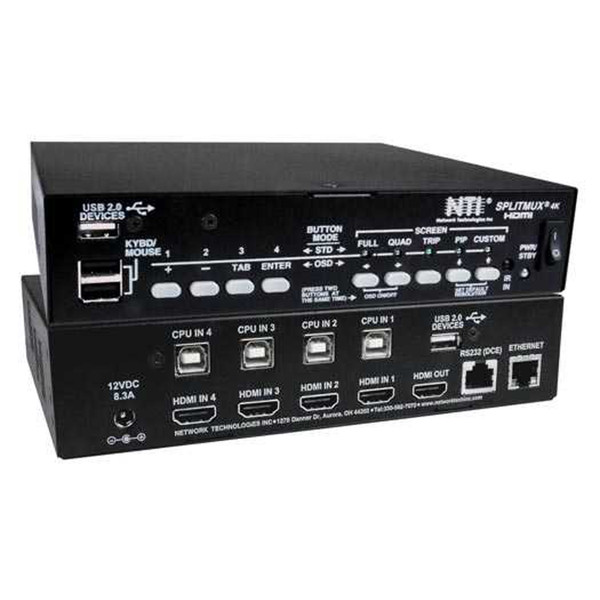

NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter

NTI

NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter
$2,715.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
SPLITMUX-USB4K18GB-4
Availability:
Usually ships the same business day
1:
4K HDMI Quad Screen Splitter
2:
HDCP 2.2 and 1.4 Compliant
3:
Quad, Picture-in-Picture & Custom Display Modes
4:
Free 15-Day Trial (See below FAQ)
5:
Free Shipping
Make a Fair Offer
Ask an Expert

This NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer with Built-In USB KVM Switch allows video from four different HDMI 2.0 Ultra-HD 4Kx2K 60Hz computers to be simultaneously displayed on a single monitor. Additionally, it can switch one of the four attached computers to a shared keyboard and mouse for operation and to two additional USB devices. It is capable of displaying the HDMI 2.0 video signals in quad, PiP, full, or custom mode.

NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer Features:

  • Quad, Picture-in-Picture, Full Screen, and Custom display modes.
    • Custom Display Mode: the size, position and selection of any or all windows are customizable.
      • 2- and 3-source viewing is possible with this method.
      • Maintain input aspect ratio if desired – no stretching necessary.
      • Layer display windows and adjust transparency of each video source display.
  • Switch one of the four attached computers to a shared USB keyboard and mouse for operation.
  • Supports input/output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4) in all display modes.
    • Independent video in to video out resolution.
  • HDMI features supported:
    • HDMI 2.0
    • Up to 36-bit color for input and 24-bit for output
    • RGB, YUV 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
    • LPCM audio
    • Bandwidth up to 600 MHz (18 Gbps)
  • HDCP 2.2 and 1.4 compliant.
  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants.
  • Zoom, pan, and crop the image from any source to focus on key areas.
  • Switch audio independently of video from connected HDMI sources.
    • Multiple audio sources can be simultaneously active in any display mode or preset layout.
    • Adjustable audio gain with VU level indicators for each input channel.
  • A customized text label can be added for each video window to provide easy input identification (UMD).
  • Control the multiviewer through Ethernet, RS232 serial port, keyboard commands, on screen display (OSD), front panel buttons, or optional IR remote.
  • Built-in 2-port USB hub - switch devices between connected computers.
    • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
  • Compliant with USB 2.0 (high-speed and low/full speed) standards.
  • Cascade multiviewers to display video from any number of video sources on one screen.
    • Each video source in the cascade can be controlled directly from the Web Server graphical user interface under Custom Mode Settings.
  • Backup and restore multiviewer configurations.
  • Supported output resolutions can be selected or set to auto detect optimal resolution from the monitor's EDID.
  • 1RU rackmount kit and cable management shelf included

Why not buy this NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer today?

NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer Specifications:

Hosts

  • Four female HDMI connectors.
  • Four female USB Type B connectors.
  • Supports video input resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
  • Supports HDCP 2.2/1.4
  • Supports USB-enabled computers with HDMI video.
    • Boots PCs, SUNs, and MACs simultaneously.
    • Also supports HDMI video-only devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11.

Monitor

  • One female HDMI connector.
  • Supports output resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4) in all display modes.
  • HDMI-embedded audio switching (four-channel stereo mixing).
  • HDCP 2.2/1.4 compliant.
  • Latency:
    • 50mS at 60Hz
    • 60mS at 50Hz
    • 100mS at 30Hz
    • 120mS at 25Hz
    • 125mS at 24Hz

Devices

  • Two female USB Type A connectors for keyboard and mouse.
    • Keyboard and mouse are hot-pluggable.
  • Two female USB Type A connectors for USB peripheral devices (touch screen monitor, printers, scanners, security cameras, flash drives, etc.)
    • Connect any type of USB device - fully transparent USB connectors.
    • Switch USB 2.0 devices between connected computers.
    • In Full Screen mode, USB touch screen monitors can be used to control the connected active computer.
  • Provides support for high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.

Protocols

  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP
  • IPV4
  • Supports HTTP REST API to configure SPLITMUX-USB4K18GB-4 with response in JSON format.

Power

  • Input: 100 to 240 VAC at 50 or 60Hz via country-specific AC adapter.
  • Output: 12V, 8.3A
  • Power consumption: 55W (max)

Dimensions

  • WxDxH:
    • Without supplied rackmount kit: 7.85x6.96x1.75 in (199x177x44mm)
    • With supplied rackmount kit: 19x6.96x1.75 in (483x177x44mm)
      • Can be mounted so that the front panel buttons are facing the front or back of the rack.
  • Includes cable management tray.
    • Adds 3” to the depth.

Environmental

  • Operating temperature: 32 to 113°F (0 to 45°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 5 to 90% non-condensing RH.

Regulatory Approval

  • CE, RoHS
  • TAA compliant

Warranty

  • Two years

Cables

  • Interface cables between the video sources/display and the multiviewer are required for proper operation.
    • Supports cable lengths to 15 feet for 4Kx2K resolutions and 50 feet for 1080p.
      • Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source or display.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
    • HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz.
    • HD-ACT-75/100-MM supports resolutions to 4K@30Hz.
  • Use DP-HD-xx-MM cables to connect a DisplayPort source up to 15 feet away from the switch.
    • Supports resolutions up to 4k@30hz 4:4:4 and 4K@60Hz 4:2:0.
  • Use USB2-AB-x-5T male USB Type A to male USB Type B interface cable between the computer and multiviewer.
  • Cables not included

Why not buy this NTI SPLITMUX-USB4K18GB-4 4K 18Gbps HDMI KVM Quad Screen Splitter/Multiviewer today?
