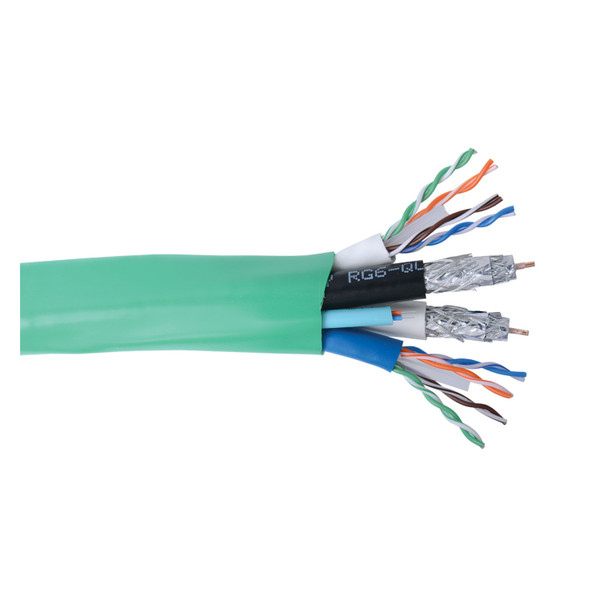

This Liberty Wire & Cable CEBUS-F 500' Green Structured Solutions 2 RG6Q BC + 2 Category 6 + a 2 Fiber OM3 Jacketed Composite Cable Reel consisting of (2) Quad shield CATV/DBS RG6 coaxial cables, (2) UTP Category 6 cables and 2 OM3 50/125 fibers under one jacket
NEC type CMG and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Liberty Wire & Cable CEBUS-F 500' Green Structured Solutions 2 RG6Q BC + 2 Category 6 + a 2 Fiber OM3 Jacketed Composite Cable Reel Features:
- Single pull multimedia cable design
- 2 RG6 bare copper quad shield RF cables
- 2 category 6 U/UTP LAN cables
- 2 fiber 50/125 OM3 multimode fiber cable
- All 5 components under one overall jacket
- NEC CM, CEC CMG FT4, RoHS compliant
Why not buy this Liberty Wire & Cable CEBUS-F 500' Green Structured Solutions 2 RG6Q BC + 2 Category 6 + a 2 Fiber OM3 Jacketed Composite Cable Reel today?
Liberty Wire & Cable CEBUS-F 500' Green Structured Solutions 2 RG6Q BC + 2 Category 6 + a 2 Fiber OM3 Jacketed Composite Cable Reel Specifications:
| Component 1: | U/UTP category 6 cable 23 AWG solid annealed bare copper conductor High density polyethylene Wall thickness: 0.0087" | 0.22mm Diameter: 0.040" | 1.02mm Polyvinyl chloride jacket Thickness: 0.020" | 0.50mm Diameter: 0.228" | 5.8mm |
| Electrical | Cat 6 DC resistance: 22.31 Ω / 1000’ | 73.20 Ω/KM Mutual capacitance: 14.0 pF/FT | 45.92 pF/M Impedance: 100 ± 15 Ω Mutual capacitance: 14.0 pF/FT | 45.92 pF/M Impedance: 100 ± 15 Ω Propagation Delay (Skew): 45ns/100m MAX Voltage rating: 300V RG6 quad DCR: 6.5 Ω / 1000’ | 21.32 Ω/KM Impedance: 75 Ω Velocity of Propagation: 82% SRL 5-2200 MHz: -20dB SRL 2.2-3 GHz:- 17dB |
| Component 2: | RG6 quad shield coaxial cable 18 AWG solid annealed bare copper conductor Foam polyethylene dielectric Diameter: 0.180" | 4.57mm 100% APA tape and 60% 34 AWG aluminum braid 100% APA tape and 40% 34 AWG aluminum braid Polyvinyl chloride jacket Thickness: 0.025" | 0.64mm Diameter: 0.287" | 7.30mm |
| Regulatory | ANSI/TIA-568C Category 6 NEC: CMG 75°C CEC: CMG FT4 60°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Category 6 jackets: Blue, Gray Pair 1: Orange, White/orange stripe Pair 2: Blue, White/blue stripe Pair 3: Green, White/green stripe Pair 4: Brown, White/brown stripe RG6 Quad jackets: White, Black Fiber jacket: Aqua Fiber buffer: Blue, White |
| Packages | Reel: 500’ | 152M Weight: 184 Lbs/1000’ | 274 Kg/KM |
| Assembly | 2 coaxial cables, 2 category 6 cables, and a 2-fiber cable cabled on a common axis and overall jacketed |
| Installation | Pull Tension: 250 Lbs | 1112 N Bend radius: 7.01" | 178mm unloaded Bend radius: 14.02" | 356mm loaded |
| Construct | Ripcord under jacket |
| Applications | Smart home systems structured wiring support cable General purpose CATV/DBS, cable modem General purpose fiber LAN, multimedia General purpose LAN, voice, and infrared General purpose BALUN support and media transmission |
| Shield | Fiber Optic 2-Fiber cable OM3 50/125 multimode fiber 2 fiber distribution construction Buffer diameter: 0.900µM Aramid yarn strength members Polyvinyl chloride jacket Thickness: 0.016" | 0.40mm Diameter: 0.138" | 3.50mm |
| Performance | LAN: 300 feet Fiber 10GBaseT to 300m Passive Baluns up to 2500 feet CATV to 236 feet |
| Jacket | Flame rated polyvinyl chloride Colors: Green Wall thickness: 0.032" | .81mm Diameter: 0.701" | 17.8mm |
| Final Outside Diameter (inches) | 0.701 |
