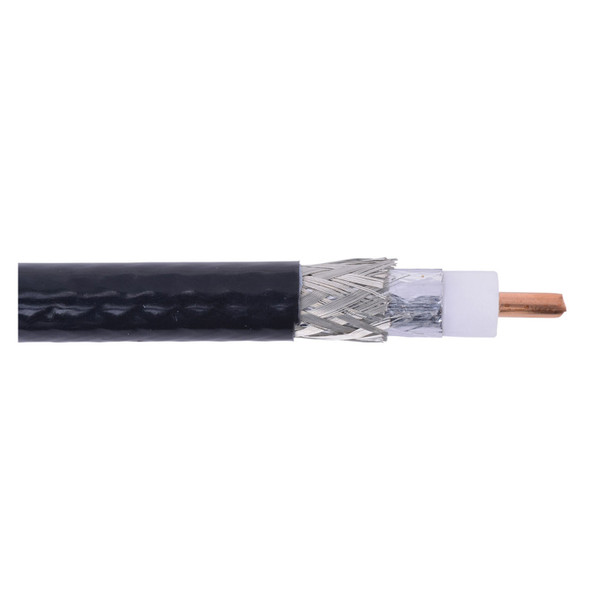

This Liberty Wire & Cable RG8-CMP-BLK 1000' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Plenum Cable Reel NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820
Liberty Wire & Cable RG8-CMP-BLK 1000' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Plenum Cable Reel Features:
- True RF-400 sized wireless broadcast cable
- 10 AWG solid copper clad aluminum conductor
- Gas-injected cellular fluoropolymer dielectric
- Dual shield 100% foil and 95% tinned copper braid
- Plenum rated PVDF jacket
- 6.0 GHz sweep, very low loss, excellent VSWR
- NEC CMP, CEC CMP FT6, RoHS compliant
- 1000 foot spools
Why not buy this Liberty Wire & Cable RG8-CMP-BLK 1000' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Plenum Cable Reel today?
Liberty Wire & Cable RG8-CMP-BLK 1000' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Plenum Cable Reel Specifications:
| Conductor | 10 AWG Solid annealed bare copper conductors Diameter: 0.108" | 2.74mm |
| Electrical | DC resistance: 0.90 Ω / 1000’ | 2.95 Ω/KM Shield DCR: 2.92 Ω / 1000’ | 9.58 Ω/KM Mutual capacitance: 24.2 pF/FT | 79.4 pF/M Impedance: 50 ± 3 Ω Velocity of Propagation: 83% Voltage rating: 300V Cutoff frequency: 16.2 GHz |
| Insulation | Cellular fluoropolymer Wall thickness: 0.086" | 2.18mm Diameter: 0.280" | 7.11mm |
| Regulatory | NEC: CMP 125°C CEC: CMP FT6 125°C EU RoHS-2 2011/65/EU Compliant |
| Color Code | Natural |
| Packages | Reel: 1000’ | 305M Weight: 93 Lbs/1000’ | 138 Kg/KM |
| Assembly | N/A |
| Installation | Pull Tension: 174 Lbs | 773 N Bend radius: 3.38" | 86mm unloaded Bend radius: 6.76" | 172mm loaded Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature |
| Construct | N/A |
| Applications | Plenum Wireless Broadcast systems for RF400 sized cables Plenum Antenna pigtails, Inventory control systems Plenum Microwave, wireless microphones |
| Shield | 100% lightly bonded aluminum/poly 90% 24x10/36 AWG tinned copper braid shield |
| Performance | N/A |
| Jacket | Polyvinylidene fluoride Colors: Black Wall thickness: 0.016" | 0.41mm Diameter: 0.338" | 8.58mm |
| Final Outside Diameter (inches) | 0.338 |
