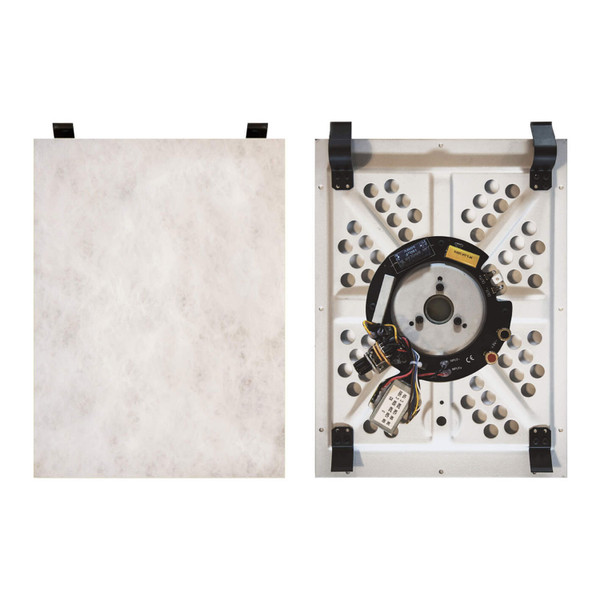

This Kramer YARDEN IH-1 Hidden In-Wall Speaker is an open–back speaker designed for mounting invisibly in the wall. It is designed for infinite baffle environments, high–power handling and excellent acoustic performance.
Kramer YARDEN IH-1 Hidden In-Wall Speaker Features:
- Type — In–wall hidden speaker.
- Drive Units — Polypropylene flat membrane, 2" voice coil, double magnet neodymium motor.
- Frequency Response — 120Hz to 20kHz @±3dB.
- Transformer Taps — 8Ω/70V/100V.
- Sensitivity — 83dB, 1W @1m.
- Power Handling — 40W RMS, 90W continuous program.
- Crossover — 2nd level @120Hz, high pass.
- Mounting Brackets — Equipped with special “insert and drop” brackets for quick, easy and intuitive installation.
- Dimensions — Overall: 35cm x 26cm (13.7" x 10.2") W, H; cutout: 32.5cm x 24cm (12.7" x 9.4") W, H; mounting depth: 5.7cm (2.2").
- Weight — 1.6kg (3.5lbs) approx.
- Package — 1 speaker.
Why not buy this Kramer YARDEN IH-1 Hidden In-Wall Speaker from HDTV Supply today?
Kramer YARDEN IH-1 Hidden In-Wall Speaker Specifications:
- Description
- Hidden in–wall speaker
- Frequency Response
- 120Hz to 20kHz @±3dB
- Drive Units
- Polypropylene 1.34mm flat membrane, 2” voice coil, double magnet
- Neodymium motor
- Voice Coil Diameter
- 50mm
- Voice Coil Wire
- Hexatech™ aluminum
- Impedance
- 8Ω (transformer tap in off position)
- Transformer Taps
- 70V–25W/12W/6W/3W/Off (Lo–Z)
- 100V–50W/25W/12W/6W/Off (Lo–Z)
- Sensitivity
- 83dB SPL, 1W@1m
- Max SPL
- Continuous: 97dB, peak: 100dB
- Power Handling
- 90W (40W RMS)
- Crossover Frequency
- 6dB — 120Hz high pass
- Resonance Frequency
- 95Hz
- Input Connector
- Terminal block
- Materials
- Steel body
- Operating Temperature
- 0° to +40°C (32° to 104°F)
- Storage Temperature
- –40° to +70°C (–40° to 158°F)
- Humidity
- 10% to 90%, RHL non–condensing
- Installation Clearance
- Mounting depth: 5.7cm (2.2”)
- Options
- Kramer BC–2S speaker cable
- Color
- White
