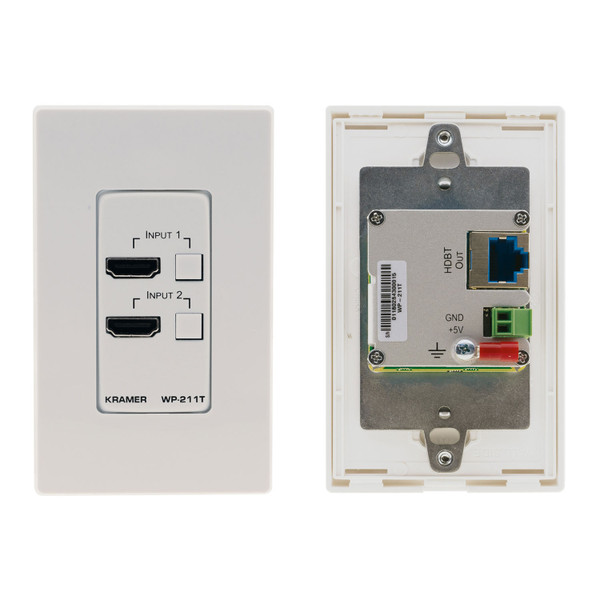

This Kramer WP-211T/20-804970590 4K60 4:2:0 HDMI Wall-Plate Auto Switcher/Transmitter over Long Reach PoE HDBaseT is a high−performance PoE−powered wall−plate automatic switcher of 4K HDMI video signals, transmitted over long−reach HDBaseT extension link. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Kramer WP-211T/20-804970590 4K60 4:2:0 HDMI Wall-Plate Auto Switcher/Transmitter Features:
- Plug & Play Auto Switcher — Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto–plays switched source signal on connected display according to user–configured preferences.
- Automatic Input Selection — Plug & play auto switching based on last connected input or manual selection.
- High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
- HDMI Signal Switching — HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D.
- Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
- Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
Why not buy this Kramer WP-211T/20-804970590 4K60 4:2:0 HDMI Wall-Plate Auto Switcher/Transmitter from HDTV Supply today?
Kramer WP-211T/20-804970590 4K60 4:2:0 HDMI Wall-Plate Auto Switcher/Transmitter Specifications:
- Inputs
- 2 HDMI: On female HDMI connectors
- Outputs
- 1 HDBaseT: On an RJ–45 connector
- Video
- Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
- Max. Resolution: 4K@60Hz (4:2:0)
- Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)
- Extension Line
- Up to 40m (130ft): At 4K@60Hz (4:2:0)
- Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
- Up to 70m (230ft): :
- Compliance: HDBaseT 1.0
- User Interface
- Controls: Panel buttons, and last connected/priority DIP–switches
- Power
- Source: 5V DC
- PoE: Acceptor
- Consumption: 780mA
- Consumption with PoE: 9 watt
- Enclosure
- Size: 1 Gang US, EU, or UK wall plate
- Cooling: Convection ventilation
- Regulatory Compliance
- EMC EN 55032
- IEC 60950–1(ed.2)
- IEC 60950–1(ed.2)am1
- IEC 60950–1(ed.2)am2
- Environmental Conditions
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- Accessories
- Included with all versions: 1 Power adapter, 1 power cord
- Included with US−D version: 2 US Frame sets and faceplates (1 in black and 1 in white)
- Included with European version: 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate
- Product Dimensions
- US: 6.98cm x 3.70cm x 11.43cm (2.75" x 1.46" x 4.50") W, D, H
- EU, UK: 8.00cm x 3.80cm x 8.00cm (3.15" x 1.50" x 3.15") W, D, H
- Product Weight
- US: 0.2kg (0.4lbs) approx.
- EU, UK: 0.2kg (0.4lbs) approx.
- Shipping Dimensions
- US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H
- EU, UK: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H
- Shipping Weight
- US: 0.6kg (1.2lbs) approx.
- EU, UK: 0.6kg (1.2lbs) approx.
