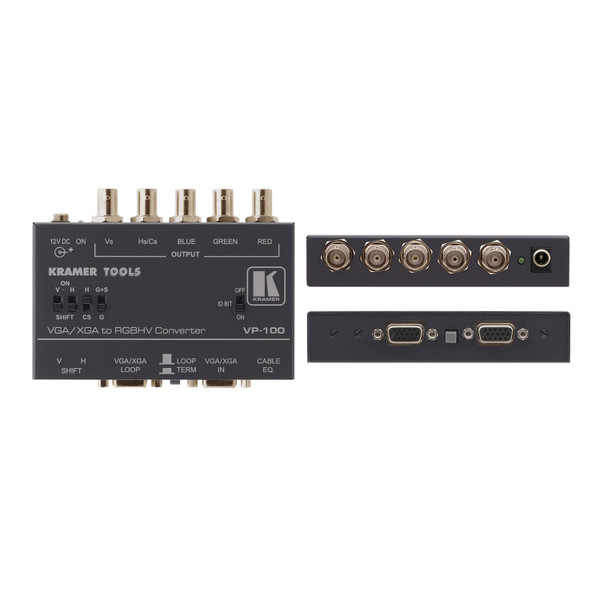

This Kramer VP-100 Computer Graphics Video to RGB/HV/S Format Converter is a high-performance format converter for computer graphics video signals. It converts a computer graphics video signal on a 15-pin HD connector to either RGBS, RGsB, or RGBHV video signals on BNC connectors.
Kramer VP-100 Computer Graphics Video to RGB/HV/S Format Converter Features:
- High Bandwidth — 350MHz (–3dB).
- Control — H/V sync shift & sync selection.
- Looping Input.
- Selectable Input Signal Termination.
- ID Bit Control.
- EQ (Peaking) Control.
- Active Line Amplification Circuitry.
Why not buy this Kramer VP-100 Computer Graphics Video to RGB/HV/S Format Converter from HDTV Supply today?
Kramer VP-100 Computer Graphics Video to RGB/HV/S Format Converter Specifications:
- INPUT
1 analog red, green, blue signals: 0.7Vpp/75Ω, H & V sync, TTL level, with loop on 15–pin HD (F) connectors - OUTPUTS
1 analog red, green (with or without composite sync), blue signals: 0.7 Vpp/75Ω
H & V syncs: TTL level (Hi–Z load) or analog level (75Ω load) on BNC connectors
1 composite sync: TTL levels (Hi–Z load) or analog level (75Ω load) - VIDEO BANDWIDTH (–3dB)
350MHz - DIFF. GAIN
0.07% - DIFF. PHASE
0.03Deg - K-FACTOR
0.05% - VIDEO S/N RATIO
71dB - CONTROLS
Cable EQ, H & V sync shift, G/sync on green switch, Hs/Cs switch, ID bit switch, input termination switch - EQ. CONTROL
0 to +9.7dB @5MHz - POWER CONSUMPTION
12V DC, 60mA - INCLUDED ACCESSORIES
Power supply, mounting bracket - Product Dimensions
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H - Product Weight
0.3kg (0.6lbs) approx. - Shipping Dimensions
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50") W, D, H - Shipping Weight
0.6kg (1.3lbs) approx.
