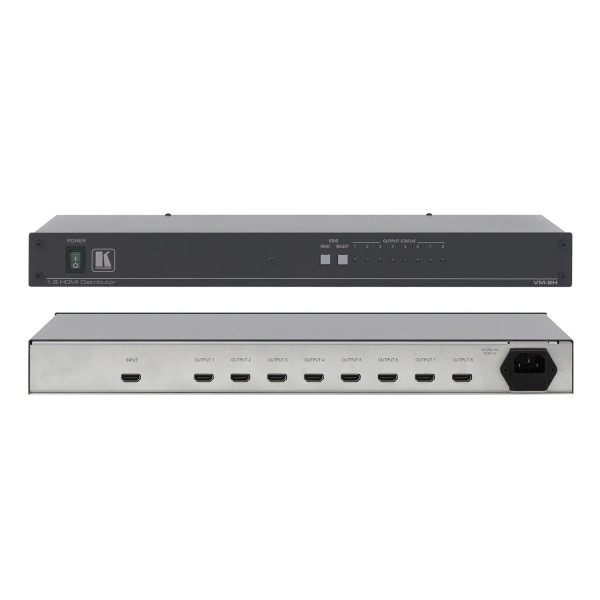

This Kramer VM-8H/10-70753110 1:8 HDMI Distribution Amplifier is a distribution amplifier for HDMI signals.
It reclocks and equalizes the signal and distributes it to 8 identical outputs.
Kramer VM-8H/10-70753110 1:8 HDMI Distribution Amplifier Features:
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Active Output LED Indicators.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
Why not buy this Kramer VM-8H/10-70753110 1:8 HDMI Distribution Amplifier from HDTV Supply today?
Kramer VM-8H/10-70753110 1:8 HDMI Distribution Amplifier Specifications:
- Input: HDMI connector
- Outputs: 8 HDMI connectors
- Bandwidth: 6.75Gbps (2.25Gbps per graphic channel)
- Compliance with HDMI Standard: Supports HDMI and HDCP
- Controls: SELECT and READ buttons for selecting and storing EDID information
- Indicator LEDs: OUTPUT STATUS 1 to 8
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Power Consumption: 100–240V AC, 50/60Hz 28VA
- Included Accessories: Power cord
- Product Dimensions
- 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
- 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
- Product Weight
- 1.7kg (3.8lbs) approx.
- 1.8kg (4.0lbs) approx.
- Shipping Dimensions
- 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21") W, D, H
- 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21") W, D, H
- Shipping Weight
- 2.7kg (5.9lbs) approx.
- 2.1kg (4.6lbs) approx.
