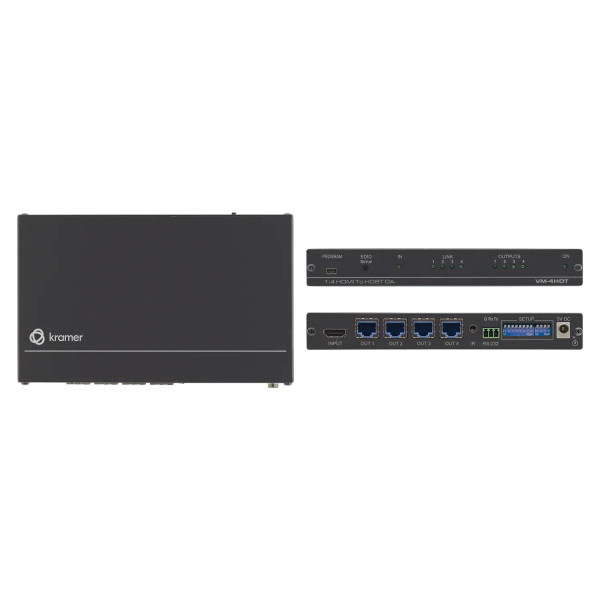

This Kramer VM-4HDT 1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers.
Kramer VM-4HDT 1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA Features:
- High Performance Distribution — Distributes one HDMI signal to four long–reach HDBaseT extension outputs with up to 4K video resolution.
- Extension–line Distribution — Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
- Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I–EDIDPro Kramer Intelligent EDID Processing — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re–Klocking Technology — Rebuilds the digital signal integrity to travel longer distances.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- LED Indicators — Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
- Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
Why not buy this Kramer VM-4HDT 1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA from HDTV Supply today?
Kramer VM-4HDT 1:4 4K60 4:2:0 HDMI to Long–Reach HDBaseT DA Specifications:
- Inputs: 1 HDMI: On an HDMI female connector
- Outputs: 4 HDBT: On RJ-45 female connectors
- Ports
- 1 IR: On a 3.5mm mini jack for IR link extension
- 1 RS-232: On a 3-pin terminal block for serial link extension
- Video
- Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
- Max. Resolution: 4K@60Hz (4:2:0) 24bpp
- Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
- HDMI Support: Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- Extension Line
- Up to 40m (130ft): At 4K@60Hz (4:2:0)
- Up to 40m (130ft): When using Kramer HDBaseT cables
- Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
- Up to 70m (230ft): When using Kramer HDBaseT cables
- General
- Controls: EDID setup button, 12 setup DIP switches
- Indicator LEDs: OUTPUTS 1-4, LINK 1-4, active input, power on
- RS-232: On a Mini-USB female connector for firmware upgrade
- Environmental Conditions
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Power
- Source: 5.2V DC, 4A
- Consumption: 5V DC, 800mA
- Enclosure
- Size: MegaTool
- Type: Aluminum
- Cooling: Fan ventilation
- Accessories
- Included: Power supply
- Product Dimensions: 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06") W, D, H
- Product Weight: 0.5kg (1.2lbs) approx.
- Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05") W, D, H
- Shipping Weight: 1.3kg (2.8lbs) approx.
