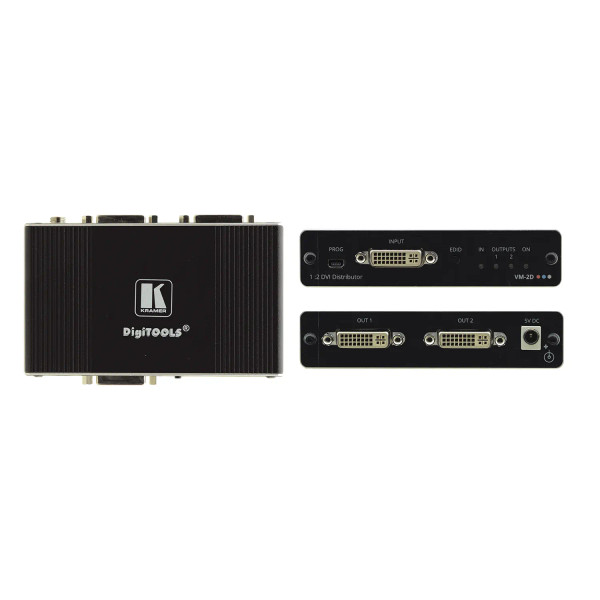

This Kramer VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier is a 1:2 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI signals, complying with HDCP 1.4 content protection standard, via single−link DVI−I connections.
The unit takes one DVI input, equalizes and reclocks the signal, and distributes it to two identical outputs.
Kramer VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier Features:
- High Performance Distributor — Professional 1:2 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single–link DVI–I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to two identical output signals, with signals rebuilt using Kramer Equalization & re–Klocking Technology to gain longer distances.
- Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
- I–EDIDPro Kramer Intelligent EDID Processing — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for DVI source and display systems.
- User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, with convenient EDID selection front panel button.
- Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade. Status indicators for fast and effective troubleshooting.
- Easy Installation — Compact TOOLS fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the optional recommended rack adapter.
Why not buy this Kramer VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier from HDTV Supply today?
Kramer VM-2D 1:2 4K60 4:2:0 DVI Distribution Amplifier Specifications:
- Inputs: 1 DVI: On a DVI-I female connector
- Outputs: 2 DVI: On DVI-I female connectors
- Video
- Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
- Max. Resolution: 4K@60Hz (4:2:0) 24bpp
- Standards Compliance: DVI 1.0 and HDCP 1.4
- HDMI Support: Deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- User Interface
- Controls: EDID setup button, RS-232 port on mini-USB female connector for firmware upgrade
- Indication LEDs: OUTPUTS 1 to 2, ACTIVE input and power ON LEDs
- Power
- Source: 5V DC, 4A
- Consumption: 5V DC, 800mA
- Enclosure
- Size: Tools
- Type: Aluminum
- Cooling: Convection ventilation
- Environmental Conditions
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Accessories
- Included: Power supply, bracket set
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H
- Product Weight: 0.3kg (0.6lbs) approx.
- Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15") W, D, H
- Shipping Weight: 0.7kg (1.5lbs) approx.
