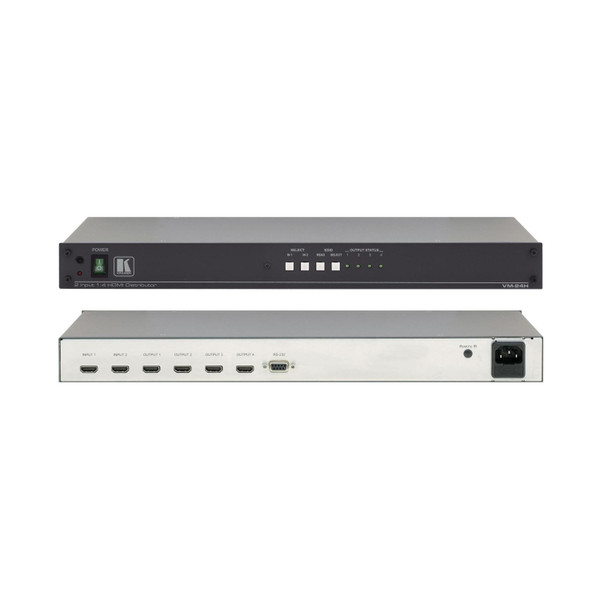

This Kramer VM-24H 2x1:4 HDMI Switchable DA is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.
Kramer VM-24H 2x1:4 HDMI Switchable DA Features:
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Active Output LED Indicators.
- Control — Front panel, RS–232, IR switching.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
Why not buy this Kramer VM-24H 2x1:4 HDMI Switchable DA from HDTV Supply today?
Kramer VM-24H 2x1:4 HDMI Switchable DA Specification:
- INPUTS: 2 HDMI connectors
- OUTPUTS: 4 HDMI connectors
- BANDWIDTH: 6.75Gbps (2.25Gbps per graphic channel)
- COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
- CONTROLS: EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR
- INDICATOR LEDs: Output status LEDs
- POWER CONSUMPTION: 100–240V AC, 50/60Hz, 16VA
- INCLUDED ACCESSORIES: Power cord, null–modem adapter, Windows®–based control software
- OPTIONS: External remote IR receiver cable
- Product Dimensions: 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
- Product Weight: 1.6kg (3.5lbs) approx.
- Shipping Dimensions: 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
- Shipping Weight: 2.5kg (5.5lbs) approx.
Why not buy this Kramer VM-24H 2x1:4 HDMI Switchable DA from HDTV Supply today?
Kramer VM-24H Quick Start Guide
