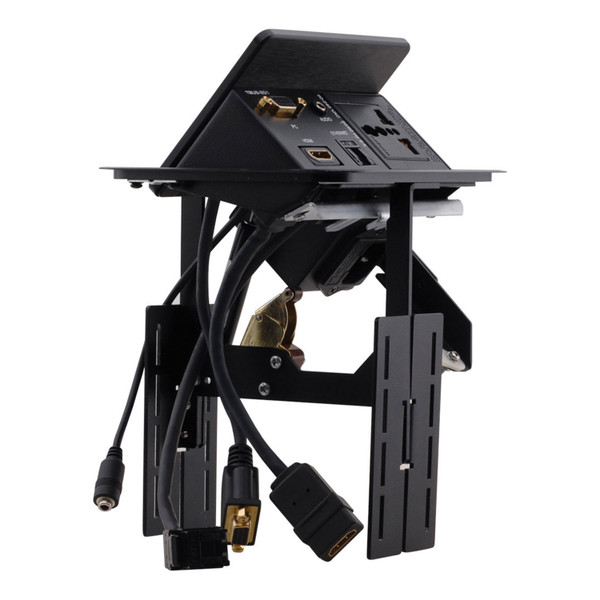

This Kramer TBUS-201XL/91-000031 Pop-Up Table-Mounted Interface Panel helps reduce cable clutter. The black Kramer TBUS-201XL is designed to provide a simple connectivity solution by consolidating HDMI, VGA, Ethernet, and 1/8" terminals into a single panel that can be popped up when needed and hidden when it's not in use. It can be customized to your specific needs, with the ability to add power connectivity with additional optional equipment. A cardboard cutout template is included to simplify installation.
Kramer TBUS-201XL/91-000031 Pop-Up Table-Mounted Interface Panel Features:
- Pneumatic Lift — The panel opens and closes by pressing down on the cover and is designed to sit flush with the table when not in use.
- Rectangular Design — The anodized aluminum enclosure is engineered to be sturdy and provide maximum connectivity in a small footprint.
- Installation — You will need tools to cut a 5.2 x 4.7" rectangular hole in the surface of the furniture.
- Optional Power Input — Universal, USA, European, and other worldwide power sockets are available and sold separately.
- Additional Features
- Helps in keeping cables organized on the tabletop
- Engineered for easy installation
- Customizable design
- Suitable for use in boardrooms, conference rooms, classrooms, and training facilities
Why not buy this Kramer TBUS-201XL/91-000031 Pop-Up Table-Mounted Interface Panel from HDTV Supply today?
Kramer TBUS-201XL/91-000031 Pop-Up Table-Mounted Interface Panel Specs:
- Ports
- 1 x HDMI
- 1 x 15-pin VGA
- 1 x Ethernet RJ45
- 1 x 1/8" (3.5 mm)
- Power Connectors
- Optional, not included
- Fuse Rating
- T 6.3 A, 250 V
- Operating Conditions
- Temperature: 41 to 113°F (5 to 45°C)
- Humidity: 10 to 90% RHL, non-condensing
- Storage Conditions
- Temperature: -4 to 158°F (-20 to 70°C)
- Humidity: 5 to 95% RHL, non-condensing
- Construction Material
- Top Plate: Sand-blasted anodized aluminum
- Compliance
- CE qualified
- Cutout Size
- 5.2 x 4.7" (133 x 120 mm)
- Desktop Thickness Range
- Up to 3" (7.3 cm)
- Dimensions
- With Outer Rim: 5.71 x 6.81 x 5.2" (14.5 x 17.3 x 13.2 cm)
- Without Outer Rim: 5.24 x 6.81 x 4.72" (13.3 x 17.3 x 12 cm)
- Weight
- 1.87 lb (0.85 kg) without mounting brackets
- 2.65 lb (1.2 kg) with mounting brackets
- Packaging Info
- Package Weight: 3.55 lb
- Box Dimensions (LxWxH): 8.6 x 8.3 x 7.6"
