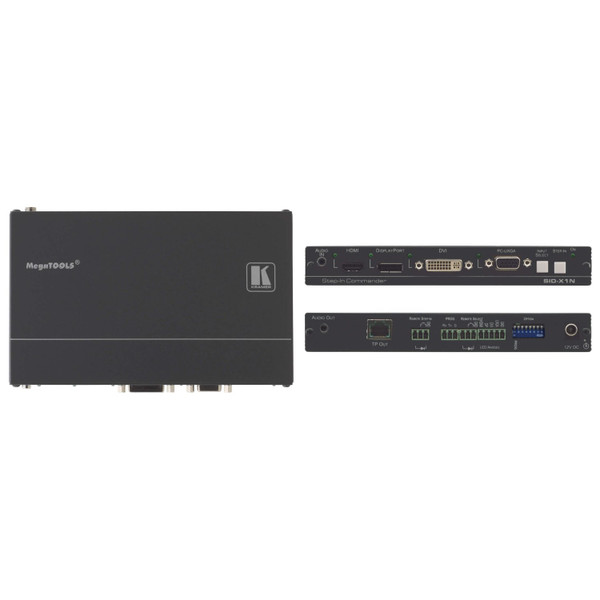

This Kramer SID-X1N DisplayPort, HDMI, VGA & DVI Auto Switcher over DGKat is a DGKat™ twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source on the main display through the main switcher.
Kramer SID-X1N DisplayPort, HDMI, VGA & DVI Auto Switcher over DGKat Features:
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphics channel).
- Compatible Switcher — VP–81SIDN.
- HDTV Compatible.
- HDCP Compliant. — Works with sources that support HDCP repeater mode.
- HDMI Support — x.v.Color™ and 3D.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Data Equalization and Reclocking.
- Input Signal Detection — Based on video clock presence.
- Automatic Input Selection — Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De–embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- Cable — Requires STP (shielded twisted pair) cable. For optimum range and performance, use shielded Kramer CAT 6 or CAT 7 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non–Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Power Connect™ System — A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
- Local Step–In Switching — Button & contact closure.
- Power Supply — Requires independent power supply
Why not buy this Kramer SID-X1N DisplayPort, HDMI, VGA & DVI Auto Switcher over DGKat from HDTV Supply today?
Kramer SID-X1N DisplayPort, HDMI, VGA & DVI Auto Switcher over DGKat Specification:
- INPUTS
- 1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI–D on a DVI–I connector
- 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack
- OUTPUTS
- 1 twisted pair on an RJ–45, 1 unbalanced stereo audio in a 3.5mm mini jack
- PORTS
- 1 RS–232 3–pin terminal block for programming
- CONTROLS
- Front panel buttons, remote step–in switch, remote input selection switches
- ANALOG AUDIO INPUT
- Maximum level — 3Vpp
- REMOTE LED IMPEDANCE
- 5V, 300? approx
- STANDARDS
- HDMI with x.v.Color™ and 3D
- HDCP: works with sources that support HDCP repeater mode
- MAXIMUM DATA RATE
- 4.95Gbps (1.65Gb per graphics channel)
- MAXIMUM STEP-IN DISTANCE
- 50m (164ft) up to 1080p @60Hz @24bpp
- POWER CONSUMPTION
- 12V DC, 1.1A
- COMPLIANCE STANDARDS
- CE, UL
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- –40° to +70°C (–40° to 158°F)
- HUMIDITY
- 10% to 90%, RHL non–condensing
- COOLING
- Convection, vents
- ENCLOSURE TYPE
- Aluminum
- INCLUDED ACCESSORIES
- Power adapter
- Product Dimensions
- 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H
- Product Weight
- 0.5kg (1.0lbs) approx.
- Shipping Dimensions
- 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
- Shipping Weight
- 1.4kg (3.1lbs) approx.
