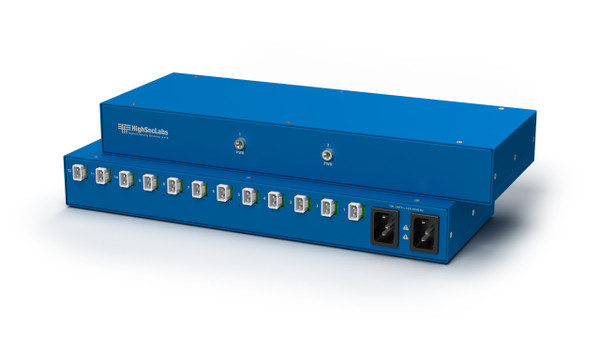

The Kramer PDUI12 centralizes power for compatible 12V HighSecLabs devices. Twelve DC outputs and redundant power supplies reduce the number of separate adapters in a rack.
PDUI12 Detailed Features
- Power several compatible HSL devices centrally. Twelve 12V DC outputs provide a common power location for supported isolators and other compatible equipment. This reduces the number of individual wall adapters in a rack.
- Use redundant power supplies. The unit provides two AC inputs and redundant supply operation. Plan the AC feeds appropriately if the installation needs protection from the loss of one power source.
- Simplify rack wiring. Centralized DC distribution can reduce bulky adapters and make individual device power leads easier to identify. This helps keep the equipment area organized for maintenance.
- Reserve fewer separate AC outlets. Multiple compatible devices can receive DC from the distribution unit rather than each requiring a separate adapter outlet. Include the PDU's own AC connections in the rack power plan.
- Check the combined load. The published maximum power consumption is 84W. Confirm the supported output loading and each connected device's requirements before commissioning the full set of outlets.
- Select the correct equipment family. This model is specified for compatible 12V HSL devices and is not listed as compatible with the Neous transmitter/receiver-plus-isolator arrangement. Check connectors and model compatibility rather than voltage alone.
Specifications
| Manufacturer part number | 22-00004330 |
|---|---|
| PDUI Features — Required AC Input Sources | 2 |
| PDUI Features — Redundant Power Supply | Yes |
| PDUI Features — Required Operating Inputs | 1 |
| PDUI Features — DC Outlets | 12 |
| PDUI Features — DC Output | 12V |
| PDUI Features — Max Power Consumption | 84W |
| PDUI Features — Compatible with Neous (Tx/Rx Endpoint + Isolator) | No |
| PHYSICAL — Dimensions | 342x148x42mm / 13.7x5.8x1.7in |
| ENVIRONMENTAL — Operating Temperature | 0°C to 50° C / 32°F to 122° F |
| ENVIRONMENTAL — Storage Temperature | -20°C to 60° C / -4°F to 140° F |
| ENVIRONMENTAL — Humidity | 0%-80% RH, non-condensing |
| GENERAL INFORMATION — Manufactured | TAA and BAA Compliant |
| GENERAL INFORMATION — Product Life-Cycle | 10 Years |
Technical Questions and Answers
What does the PDUI12 do?
The Kramer PDUI12 centralizes power for compatible 12V HighSecLabs devices. Twelve DC outputs and redundant power supplies reduce the number of separate adapters in a rack.
What are the required ac input sources requirements?
2
What are the redundant power supply requirements?
Yes
What is specified for required operating inputs?
1
What is specified for dc outlets?
12
What is specified for dc output?
12V
What are the max power consumption requirements?
84W
What is specified for compatible with neous (tx/rx endpoint + isolator)?
No
Choosing the Right Product
What is the Kramer PDUI12 used for?
It is used for powering multiple compatible HighSecLabs isolators. Centralizes power for compatible 12V HighSecLabs devices. Twelve DC outputs and redundant power supplies reduce the number of separate adapters in a rack.
Who should choose the PDUI12?
Choose this model when your project needs powering multiple compatible HighSecLabs isolators. Compare the model-specific connections and specifications above with the equipment in your system.
What should I check before ordering the PDUI12?
Confirm manufacturer part 22-00004330, the required connections and the installation requirements. Use the linked documentation to check compatible equipment and required accessories.
