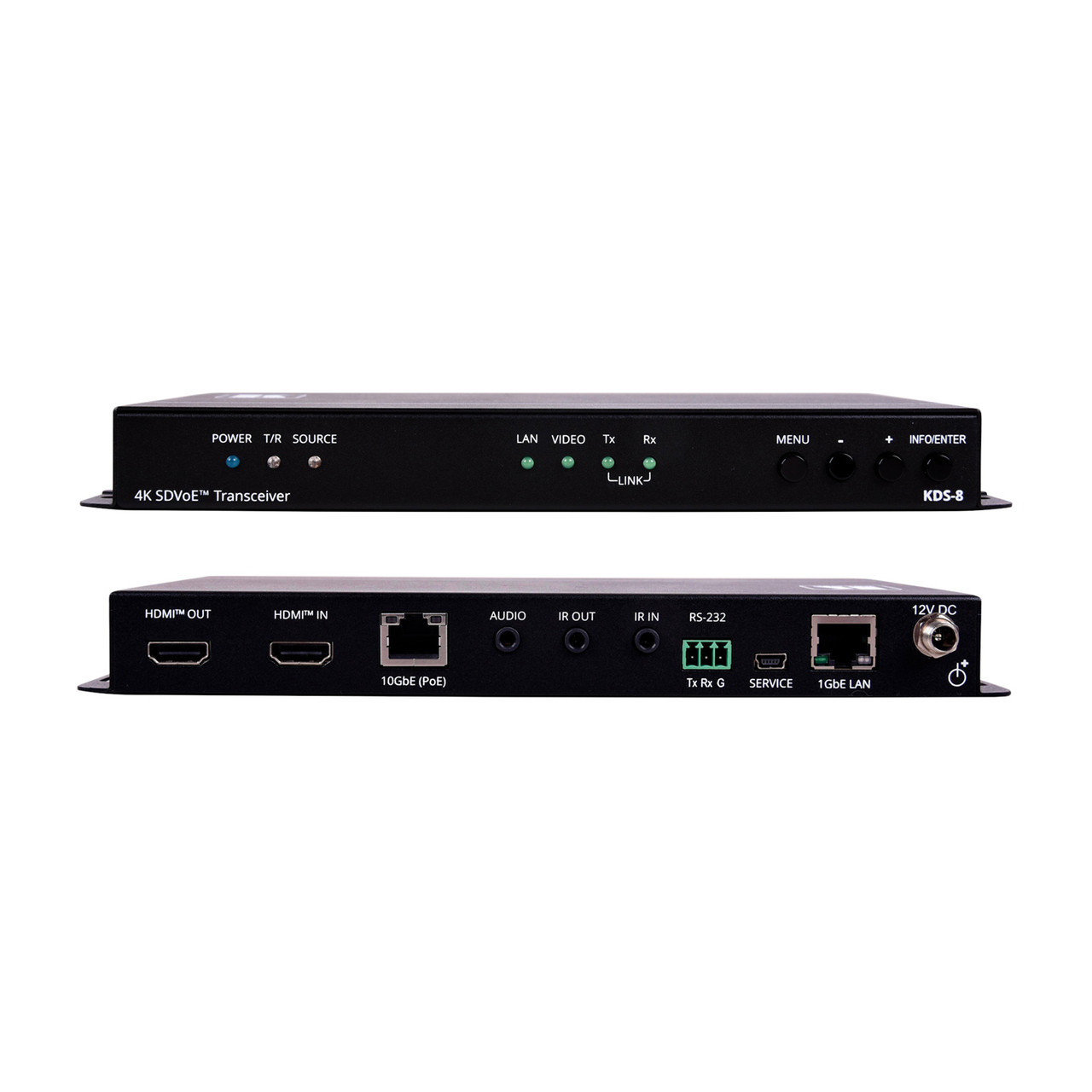

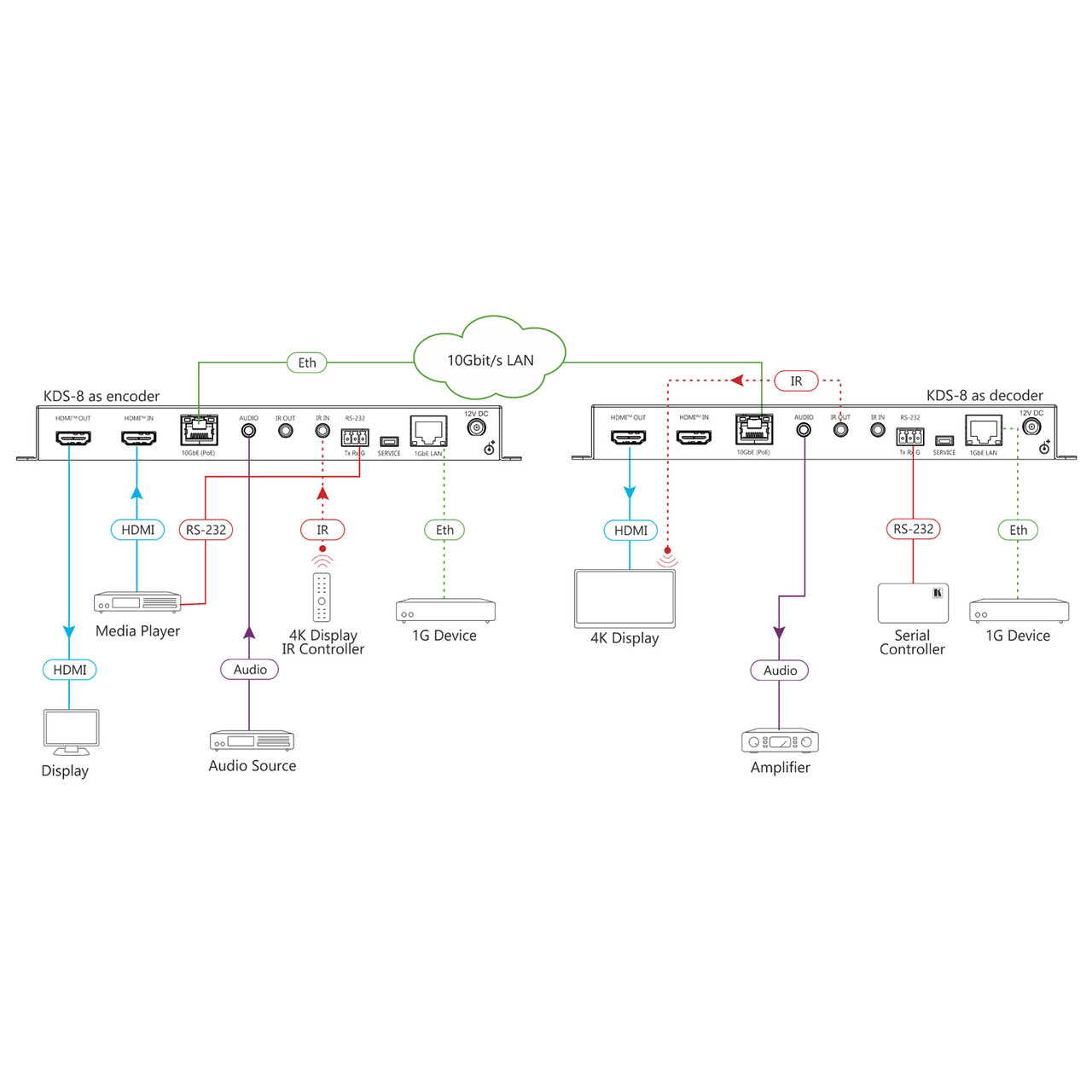

This Kramer KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Kramer KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper Features:
- High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
- Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
- Streamlined Management and Configuration — Kramer KDS–8–MNGR device (sold separately) provides a central point of management and enables creating multiple virtual matrices, video walls and multi–view configurations. In addition, KDS–8–MNGR supports preset configurations that can be activated using Kramer Control.
- HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support
- High–Speed 10G Network Switch — Managed switch provides: multicast, jumbo frames, IGMP snooping and fast leave.
- Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.
- Bi–directional IR over IP — Control an IR device located on the decoder side from the encoder and vice versa.
- Bi–directional RS–232 over IP — Control a serial device located on the decoder side from the encoder and vice versa.
- Video Wall Support.
- Multiview Support
- Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI video source detection, and Tx and Rx transmission enable easy local maintenance and troubleshooting.
- Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
Why not buy this Kramer KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper from HDTV Supply today?
Kramer KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper Specification:
- INPUTS
- 1 HDMI: On a female HDMI connector
- 1 IR: On a 3.5mm mini jack
- For IR extension, order Kramer accessories:
- 3300–500028 PT–5R/T IR receiver cable 2m, 3.5mm mini jack
- 3300–500029 PT–5R/T IR emitter cable 2m, 3.5mm mini jack
- For IR extension, order Kramer accessories:
- OUTPUTS
- 1 HDMI: On a female HDMI connector
- 1 IR: On a 3.5mm mini jack
- For IR extension, order Kramer accessories:
- 3300–500028 PT–5R/T IR receiver cable 2m, 3.5mm mini jack
- 3300–500029 PT–5R/T IR emitter cable 2m, 3.5mm mini jack
- For IR extension, order Kramer accessories:
- PORTS
- 1 10GbE Ethernet: On an RJ–45 connector
- 1 Unbalanced Stereo Audio: On a 3.5mm mini jack
- 1 1GbE Ethernet: On an RJ–45 connector
- 1 RS-232: On a 3–pin terminal block connector
- VIDEO
- Standards Compliance: 10/12–bit HDR (Point–to–Point and Genlock mode only), HDCP 2.2 & 1.4, DVI 1.0
- EXTENSION LINE
- Signal Compression: Ultra–light compression, lossless for most content
- Range: Up to 100m in point–to–point mode
- AUDIO
- Standards Compliance: Supports pass–through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources
- Analog Audio: 20 Hz~20 kHz, 24–bit 48 kHz sampling rates
- POWER
- Source: 12V DC
- Consumption: 3A
- PoE Budget: 25W (not including cable loss)
- ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32°F — 104°F), 10% to 90%, non–condensing
- Storage Temperature: –20° to +60°C (–4°F to +140°F), 10% to 90%, non–condensing
- Humidity: 10% to 90%, non–condensing
- GENERAL
- Product Dimensions: 23.10cm x 11.60cm x 2.50cm (9.09" x 4.57" x 0.98") W, D, H
- Product Weight: 0.5kg (1.1lbs) approx.
- Shipping Dimensions: 39.00cm x 20.20cm x 6.20cm (15.35" x 7.95" x 2.44") W, D, H
- Shipping Weight: 1.2kg (2.6lbs) approx.
