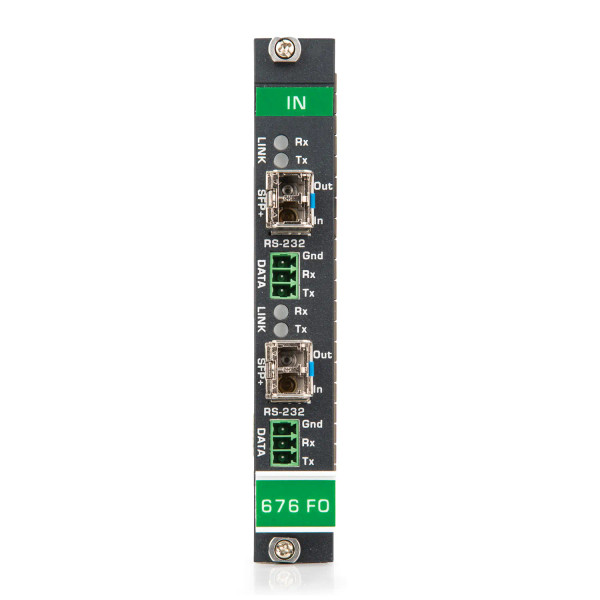

This Kramer F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card is a high−performance HDMI fiber optic modular matrix input card for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals.
Designed for the VS−34FD modular matrix, F676−IN2−F34 receives the transmitted optical signal from a compatible transmitter and converts it to an HDMI and RS−232 signals.
F676−IN2−F34 includes 2 multi−mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceivers, such as single−mode SFP+ transceivers.
Kramer F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card Features:
- High Performance Standard Fiber Extender — HDMI fiber transmitter for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi–mode SFP+ included). Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units. - HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD.
- I–EDIDPro Kramer Intelligent EDID Processing — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, to enable data transmission and control of devices.
- Cost–Effective Maintenance — Fiber link connection LEDs facilitate easy local troubleshooting.
Why not buy this Kramer F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card from HDTV Supply today?
Kramer F676-IN2-F34 4K60 4:4:4 HDMI over Ultra-Reach MM/SM Fiber Optic Input Card Specifications:
- Inputs
- 2 Fiber Optic: On LC connectors
- Ports
- 2 RS-232: On a 3-pin terminal block connector
- Video
- Max Bandwidth: 18Gbps
- Max Resolution: 4K@60 (4:4:4)
- HDMI Support: 18G (6G per channel) data rate, LPCM 7.1, Dolby TrueHD, and DTS-HD
- Content Protection: HDCP 2.2
- Extension Line
- Optical Fiber: Multi-mode (MM) or single-mode (SM)
- Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
- Multi-mode Line
- Compliance: G.651.1 OFNR fiber
- Max Reach over OM3 MM Fiber: 3km (1.8 miles)
- Single-mode Line
- Compliance: G.652D OFNR fiber
- Max Reach over OS1 SM Fiber: 33km (20.5 miles)
- Standards Compliance
- Laser Safety Compliance: Class 1
- SFP Regulatory Certifications: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950-2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368-1 and IEC 60825-1 and -2
- Extended RS-232
- Baud Rate: 300 to 115200
- User Interface
- Indicators: Optical link LEDs
- Power
- Consumption: 9W
- Environmental Conditions
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Regulatory Compliance (Standards Compliance)
- Safety: CE, UL
- Environmental: RoHS, WEEE
- Accessories
- Included: 2 MM SFP+ transceivers
- Product Dimensions: 25.50cm x 13.00cm x 2.00cm (10.04" x 5.12" x 0.79") W, D, H
- Product Weight: 0.2kg (0.5lbs) approx.
- Shipping Dimensions: 29.20cm x 16.50cm x 6.00cm (11.50" x 6.50" x 2.36") W, D, H
- Shipping Weight: 0.4kg (0.9lbs) approx.
