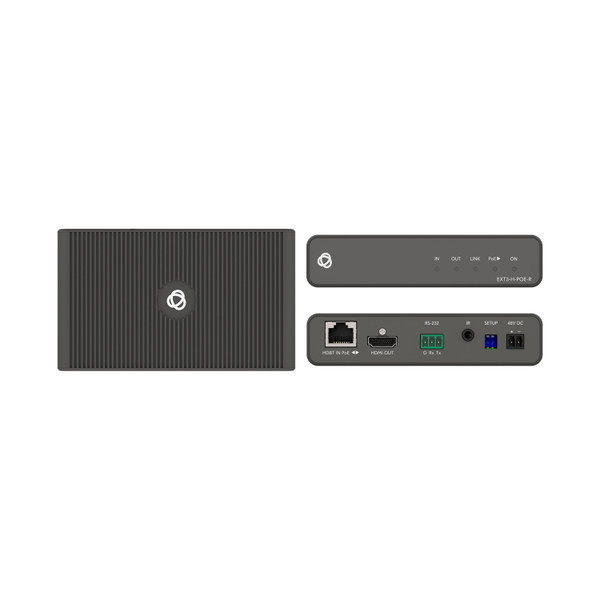

This Kramer EXT3-H-POE-R 4K60 4:4:4 HDR HDMI Receiver with Bidirectional PoE is a high−performance, long−reach HDBaseT 3.0 receiver for 4K60 4:4:4 HDR HDMI, RS−232 and IR signals over twisted pair. EXT3−H−POE−R converts the HDBaseT 3.0 signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 40m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT−compliant extenders at up to 4K@60Hz 4:4:4 video resolutions.
Kramer EXT3-H-POE-R 4K60 4:4:4 HDR HDMI Receiver with Bidirectional PoE Features:
- High Performance Standard Extender — Professional HDBaseT extender for providing signals over twisted–pair copper infrastructures. Video signals are received uncompressed with near–zero latency.
- PoE powered from either transmitter or receiver unit
- Future–proof, Standard Extender — EXT3–H–POE–R is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals
- Intelligent Compression Handling — HDR HDCP 2.3 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200 bps with no need for pre configuration.
- Bidirectional Infrared Extension — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
- Cost–Effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
- Easy Installation — Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Why not buy this Kramer EXT3-H-POE-R 4K60 4:4:4 HDR HDMI Receiver with Bidirectional PoE from HDTV Supply today?
Kramer EXT3-H-POE-R 4K60 4:4:4 HDR HDMI Receiver with Bidirectional PoE Specification:
- OUTPUTS
- 1 HDMI: On a female HDMI connector
- PORTS
- HDBaseT 3.0: Input port
- 1 RS-232: On a 3–pin terminal block connector for serial link extension
- 1 IR: On a 3.5mm mini jack connector
- EXTENSION LINE
- Standard Compression: Up to 40m (130ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at 4K@30Hz (4:4:4) or Full HD (1080p @60Hz 36bpp)
- High Compression: Up to 70m (230ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or Full HD (1080p @60Hz 36bpp)
- Standards Compliance (Range): Up to 40m (130ft) at 4K@60Hz (4:2:0)
- Up to 70m (230ft) at Full HD (1080p @60Hz 36bpp)
- Standards Compliance: HDBaseT 3.0
- Note: When using recommended Kramer cables
- VIDEO
- Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
- Compliance: HDCP 2.3, HDR 10
- HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b
- EXTENDED BIDIRECTIONAL RS-232
- 300 to 115200 baud rate
- EXTENDED BIDIRECTIONAL IR
- 20kHz to 100kHz frequency
- USER INTERFACE
- Indicators: IN, OUT, LINK, and ON LEDs
- Controls: DIP–switches
- POWER
- Source: 48V DC
- Consumption: 330mA
- ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RHL non–condensing
- REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Safety: CE, UL
- Environmental: RoHs, WEEE
- ENCLOSURE
- Size: DigiTOOLS®
- Type: Aluminum
- Cooling: Convection ventilation
- ACCESSORIES
- Included: Power adapter, power cord, bracket set
- GENERAL
- Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H
- Product Weight: 0.3kg (0.6lbs) approx.
- Shipping Dimensions: 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15") W, D, H
- Shipping Weight: 0.7kg (1.5lbs) approx.
- PRODUCT DIMENSIONS
- 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H
- PRODUCT WEIGHT
- 0.3kg (0.6lbs) approx.
- SHIPPING DIMENSIONS
- 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H
- SHIPPING WEIGHT
- 0.7kg (1.6lbs) approx.
