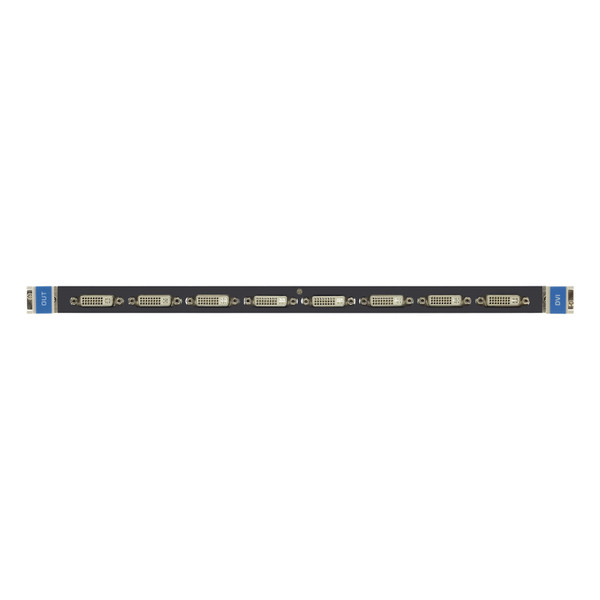

This Kramer DVI-OUT8-F64 8-Channel DVI Output Card is an eight−channel DVI output card for the VS−6464 Series Modular Multi−Format Digital Matrix Switchers. The DVI−OUT8−F64 outputs eight DVI signals from the chassis.
Kramer DVI-OUT8-F64 8-Channel DVI Output Card Features:
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- DVI Rev. 1.0.
Why not buy this Kramer DVI-OUT8-F64 8-Channel DVI Output Card from HDTV Supply today?
Kramer DVI-OUT8-F64 8-Channel DVI Output Card Specification:
- OUTPUTS: 8 DVI–D on Molex 24–pin (F) connectors
- BANDWIDTH PER CHANNEL: 1.65Gbps
- TOTAL BANDWIDTH: 4.95Gbps
- MAXIMUM RANGE: 15m (49ft)
- Power Consumption: 9W
- 3D PASS THROUGH: Not supported
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
- HUMIDITY: 10% to 90%, RHL non–condensing
- STANDARD COMPLIANCE: DVI 1.0
- SAFETY REGULATORY COMPLIANCE: CE, FCC
- ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE
- Product Dimensions: 39.50cm x 18.00cm x 2.00cm (15.55" x 7.09" x 0.79" ) W, D, H
- Product Weight: 0.4kg (1.0lbs) approx.
- Shipping Dimensions: 44.00cm x 22.50cm x 5.50cm (17.32" x 8.86" x 2.17" ) W, D, H
- Shipping Weight: 0.8kg (1.8lbs) approx.
Why not buy this Kramer DVI-OUT8-F64 8-Channel DVI Output Card from HDTV Supply today?
Kramer DVI-OUT8-F64 Installation Sheet
