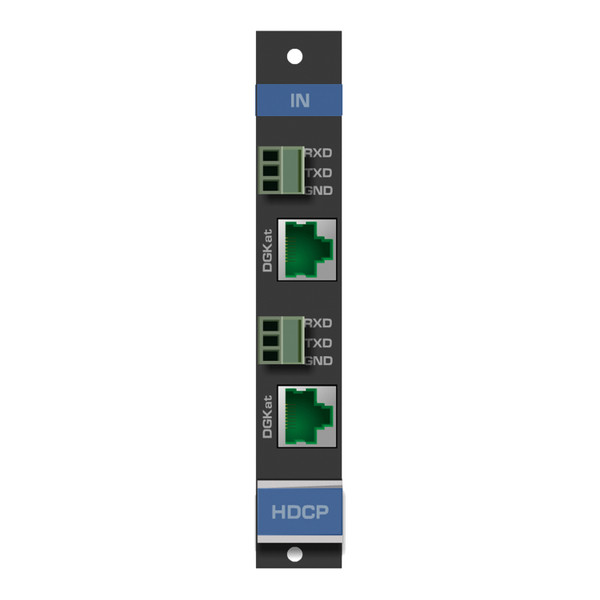

This Kramer DGKat-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card is a two−channel HDMI and RS−232 over DGKat twisted pair input card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DGKat−IN2−F16 inputs two HDMI and RS−232 over DGKat signals to the chassis.
Kramer DGKat-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card Features:
- Max. Data Rate — 4.95Gbps.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
Note: Transmission range depends on the signal resolution, graphics card and display used. If using third–party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly. - HDMI and HDCP Compliant.
- DGKat™ Signal Integration.
- 3D Pass–Through.
- Bidirectional Local RS–232 Port.
- Kramer Equalization & re–Klocking Technology.
- Power Connect System — For supplying power to compatible TP transmitters
Why not buy this Kramer DGKat-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card from HDTV Supply today?
Kramer DGKat-IN2-F16 2-Channel HDMI & RS-232 over DGKat Input Card Specification:
- PORTS: 2 TP ports on RJ–45 connectors, 2 serial ports on 3–pin terminal blocks
- BANDWIDTH PER CHANNEL:
- Video: 1.65Gbps
- serial data: 19200
- TOTAL BANDWIDTH:
- Video: 4.95Gbps
- serial data: 19200
- MAXIMUM RANGE: 90m (300ft) — 1080p @60Hz
- 3D PASS THROUGH: Supported
- POWER CONSUMPTION: 12W
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
- HUMIDITY: 10% to 90%, RHL non–condensing
- STANDARD COMPLIANCE: HDCP 1.4, HDMI 1.3a
- SAFETY REGULATORY COMPLIANCE: CE, FCC
- ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE
- Product Dimensions: 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
- Product Weight: 0.2kg (0.4lbs) approx.
- Shipping Dimensions: 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
- Shipping Weight: 0.3kg (0.6lbs) approx.
