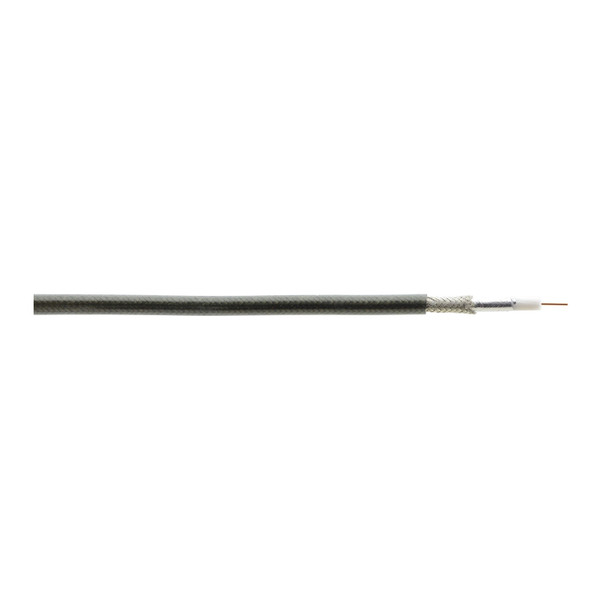

This Kramer BC-RG63G-152M 152m/500ft 1 Coax RG-6 Broadcast Quality Optimized for 3G HD-SDI Bulk Cable is a high−performance broadcast−grade RG−6 cable for 3G HD−SDI applications. It has been optimized for the Sierra Aspen 3G HD−SDI routers that have a system range of 500ft.
Kramer BC-RG63G-152M 152m/500ft 1 Coax RG-6 Broadcast Quality Optimized for 3G HD-SDI Bulk Cable Features:
- Quality Construction - 18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation. Tested to 3G.
- Universal Compatibility - Compatible with Kramer’s compression connectors as well as typical crimp systems.
- Length - Available in reels of 152/305m (500/1000ft).
Why not buy this Kramer BC-RG63G-152M 152m/500ft 1 Coax RG-6 Broadcast Quality Optimized for 3G HD-SDI Bulk Cable from HDTV Supply today?
Kramer BC-RG63G-152M 152m/500ft 1 Coax RG-6 Broadcast Quality Optimized for 3G HD-SDI Bulk Cable Specification:
- CONDUCTORS
- Material: Bare copper
- Construction: 18AWG (1/18)
- Diameter: 1.02 ±0 .005mm
- INSULATION
- Material: Foam PE
- Nom. Thickness: 1.70mm
- Diameter: 4.57 ±0.05mm
- SCREENING
- Material: Heat–sealed aluminum/polyester
- Coverage: ≥125%
- OVERALL SHIELD
- Material: Tinned copper
- Construction: 16/10/0.12Tmm
- Coverage: ≥95%
- JACKET
- Material: PVC
- Nom. Thickness: 0.85mm
- Color: Black
- Outer diameter: 6.9 ±0.10mm
- ELECTRICAL
- Rated Voltage: 300V
- Rated Temperature: 75˚C
- DCR (20°C): 6.52Ω/1000FT
- Capacitance (20°C): 16.2pF/FT
- SRL (20°C): 23dB min @ 5–850 MHz, 21dB min @ 851–3000 MHz, 18dB min @ 3000–4500 MHz
- Impedance (20°C): 75 ±3Ω
- Attenuation db/100ft (20°C): 0.28 dB @1 MHz
- Attenuation db/100ft (20°C): 0.77 dB @ 10 MHz
- Attenuation db/100ft (20°C): 1.53 dB @ 50 MHz
- Attenuation db/100ft (20°C): 1.98 dB @ 100 MHz
- Attenuation db/100ft (20°C): 2.73 dB @ 200 MHz
- Attenuation db/100ft (20°C): 3.9 dB @ 400 MHz
- Attenuation db/100ft (20°C): 5.24 dB @ 700 MHz
- Attenuation db/100ft (20°C): 6.35 dB @ 1000 MHz
- Attenuation db/100ft (20°C): 7.75 dB @ 1450 MHz
- Attenuation db/100ft (20°C): 9.47 dB @ 2000 MHz
- Attenuation db/100ft (20°C): 11.64 dB @ 3000 MHz
- STANDARDS COMPLIANCE
- UL/cUL: CM/CMG
- CSA: FT4
- RoHS: 2011/65/EU
