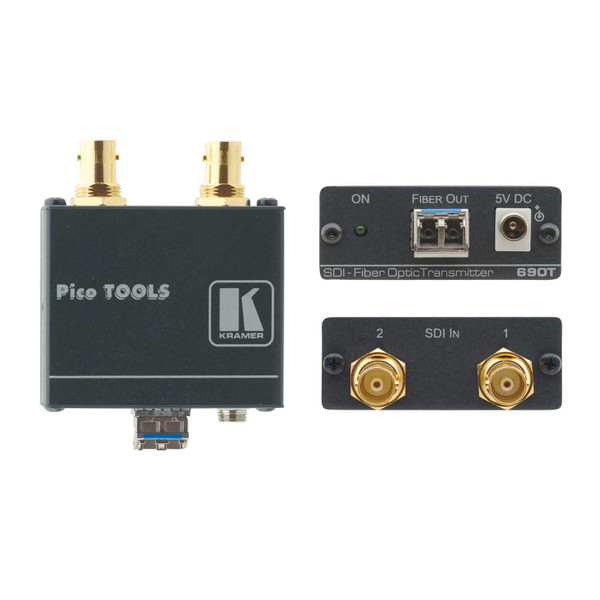

This Kramer 690T 2x3G SDI Transmitter over Ultra-Reach SM Fiber is a high−performance fiber optic transmitter for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS−88FO.
Kramer 690T 2x3G SDI Transmitter over Ultra-Reach SM Fiber Features:
- Max. Data Rate - 3Gbps.
- Inputs - 2 SDI on BNC connectors.
- Outputs - 2 single–mode fiber optic on LC connectors.
- HDTV Compatible.
- Multi–Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Laser Standards Compliance - IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
- Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
- System Range - Up to 10km (6.2mi).
Why not buy this Kramer 690T 2x3G SDI Transmitter over Ultra-Reach SM Fiber from HDTV Supply today?
Kramer 690T 2x3G SDI Transmitter over Ultra-Reach SM Fiber Specification:
- INPUTS: 2 SD/HD/3G HD–SDI on BNC connectors
- OUTPUTS: Dual single–mode fiber (9/125) over LC connectors
- BANDWIDTH: Supports up to 3Gbps bandwidth for each input
- FIBER OPTIC EXTENSION: Up to 10km (>6.2 miles) for 3G–SDI
- INPUT CABLE EQUALIZATION: 200m for SDI, 100m for 3G–SDI
- POWER CONSUMPTION: 5V DC, 480mA
- OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
- HUMIDITY: 10% to 90%, RHL non–condensing
- INCLUDED ACCESSORIES: Power supply
- Product Dimensions: 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
- Product Weight: 0.1kg (0.2lbs) approx.
- Shipping Dimensions: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
- Shipping Weight: 0.5kg (1.1lbs) approx.
