Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set

Kramer

Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set
Price: $1,850.00
Today's Price: $1,480.00

10% Discount. Apply Code 10percentOff at Checkout!

Part Number:
612R/T
Condition:
New
Availability:
In Stock
1:
Supports Dual-Mode DP
2:
Pure Fiber Connectivity
3:
Compact Design
4:
Easy Plug & Play Installations
5:
Free USA Shipping
6:
Kramer Factory Warranty

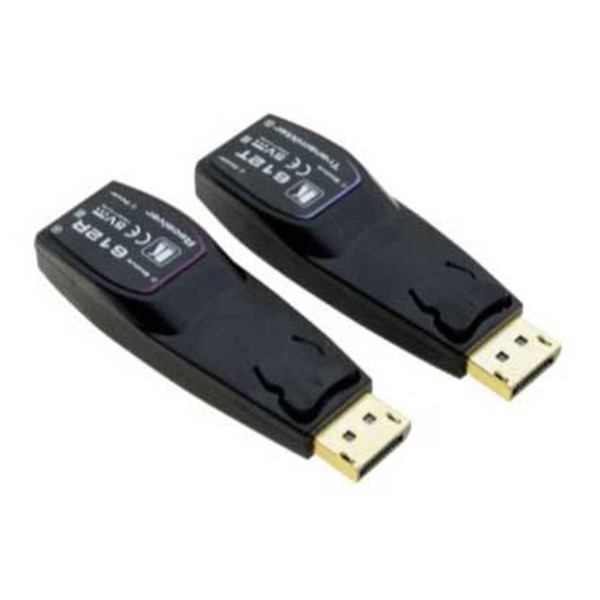

This Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set is a compact fiber optic transmitter and receiver capable of extending uncompressed DisplayPort 1.2 over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi-mode fiber cable.

Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set Features:

  • Compliant with DisplayPort™ v1.2 specifications
  • Max. Resolution - 4096x2160@60Hz
  • Max. Data Rate - 21.6Gbps (5.4Gbps per lane)
  • Supports Dual-mode DP (DP++)
  • Max. Extension - 656ft (200m) over dual LC multi-mode OM3 fiber optic cable
  • Supports Auxiliary /l²C channel over fiber
  • Compact Design - For easy plug and play installations
  • Pure fiber connectivity for secure applications

Why not buy this Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set from HDTV Supply today?

Kramer 612R/T 4K60 4:4:4 DisplayPort 1.2 Transmitter/Receiver over Extended-Reach MM/LC Fiber Optic - Set Specification:

  • VIDEO
    • Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
    • Data Rate: Maximum 21.6 Gbps (HBR2)
    • Compliance: Supports HDCP 2.2, EDID and DPCP (DisplayPort Content Protection)
    • DisplayPort Support: Dual-mode DP (DP++)
  • PORTS
    • 612T (source end): Male DisplayPort gold plated
    • 612R (display end): Male DisplayPort gold plated
    • 612T (source end): Micro USB (for power supply)
    • 612R (display end): Micro USB (for power supply)
  • POWER
    • 5V: Via USB source, external source, or DisplayPort PIN #20
  • RECOMMENDED CABLE
    • Structure: Dual Multi-mode OM3 (50/125um) glass fiber
    • Optical Connectors: Duplex LC connectors
    • Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM
    • Max. Skew: 0.4ns
    • Max. Insertion Attenuation: 0.5dB
    • Total Optical Attenuation: 1dB max @ 656ft/200m extension
    • Maximum Length: 200m (656ft)
  • ENVIRONMENTAL CONDITIONS
    • Operating Temperature: 0° to +50°C (32° to 122°F)
    • Storage Temperature: -30° to +70°C (-22° to 158°F)
    • Operating Humidity: 0 to 85%
  • STANDARDS COMPLIANCE
    • CE: EN 55032:2012/AC: 2013 (Class A), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
    • FCC: CFR 47 part 15 SUBPART B, Section 15.101
    • Environmental: RoHS (2011/65/ EU)
