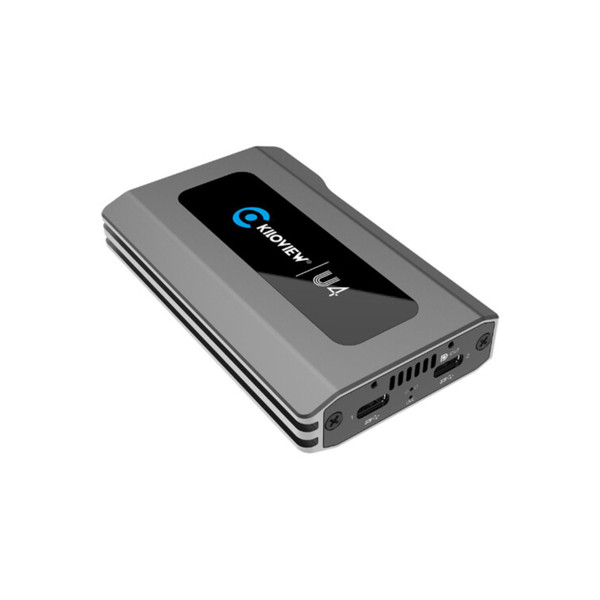

This Kiloview KVW-U4 All-in-One IP Video Dock with USB 3.0, HDMI, DisplayPort & PoE is a compact IP video decoder and output dock. Designed for modern AV and UC environments, it bridges the gap between professional IP video and everyday meeting and display workflows.
Supporting NDI, SRT, RTSP, RTMP, UDP, RTP, and HLS, U4 converts IP video into USB UVC/UAC, HDMI, and DisplayPort outputs for UC platforms, room displays, and monitoring.
HDMI and DisplayPort outputs support up to 4K60 video, while USB UVC/UAC enables plug-and-play integration with Zoom, Teams, Google Meet, OBS, and more.
By reducing the need for software-based workflows and multiple conversion devices, U4 simplifies IP video deployment across meeting rooms, classrooms, auditoriums, studios, and beyond.
Kiloview KVW-U4 All-in-One IP Video Dock with USB 3.0, HDMI, DisplayPort & PoE Features:
- Ready for the IP Video Sources Already in Your Project: U4 supports NDI High Bandwidth, NDI HX3/HX2, SRT, RTSP, RTMP, UDP, RTP, HLS, and more, making it easy to bring IP cameras, NDI devices, switchers, and media servers into one compact hardware workflow.
- IP Video In. USB 3.0, HDMI, and DisplayPort Out: U4 converts IP video into USB 3.0 UVC/UAC, HDMI, and DisplayPort outputs, bringing network video to UC apps, room displays, and monitoring screens through one compact device.
- USB-C to UC Meetings. No More Software Workarounds: Through standard USB 3.0 UVC/UAC output, U4 is recognized as a USB camera and audio device by meeting laptops. It works with Zoom, Teams, Google Meet, OBS, and more - no drivers, software, or virtual camera required.
- 4K60 Display & Monitoring Crystal - Clear on Any Screen: For room displays, confidence monitors, and local preview, U4 delivers up to 4K60 video via HDMI and DisplayPort - ideal for meeting rooms, classrooms, auditoriums, studios, and ProAV spaces.
- Hardware Decoding. Less Work for Your PC: With built-in hardware decoding, U4 processes IP video directly on the device instead of relying on the meeting PC. This reduces software complexity, lowers PC workload, and minimizes the need for virtual cameras or additional capture hardware.
Why not buy this Kiloview KVW-U4 All-in-One IP Video Dock with USB 3.0, HDMI, DisplayPort & PoE from HDTV Supply today?
Kiloview KVW-U4 All-in-One IP Video Dock with USB 3.0, HDMI, DisplayPort & PoE Specifications:
| Supported Protocols | NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTSP, RTMP, UDP, RTP, HLS, and more |
| Decoding Capability | Decoding of NDI High Bandwidth, H.264, and H.265 video sources up to 4K60 |
| Video Outputs | Same-source output via USB, HDMI, and DisplayPort: USB UVC/UAC: up to 4K60 HDMI / DisplayPort: up to 4K60 HDMI and DP cannot output 4K60 simultaneously; only one 4K output is supported when both are connected. |
| Interfaces | 2 × USB 3.0 Type-C 1 × HDMI 2.1 1 × USB-C port supports DisplayPort Alt Mode output |
| Management | Web UI control and centralized management via KiloLink Server Pro |
| Firmware Upgrade | Web UI or remote upgrade via KiloLink Server Pro Forced USB flash drive upgrade supported for system recovery |
| DHCP | Supported |
| Ethernet | 1 × RJ45, 10/100/1000 Mbps Base-T |
| USB NET | Supports USB virtual network adapter |
| Power Supply | Dual USB Type-C power input supported USB PD power supported, up to 25W |
| Indicators | 1 × Power / running indicator 1 × Warning/Error LED |
| Dimensions | 100 mm × 62 mm × 18 mm |
