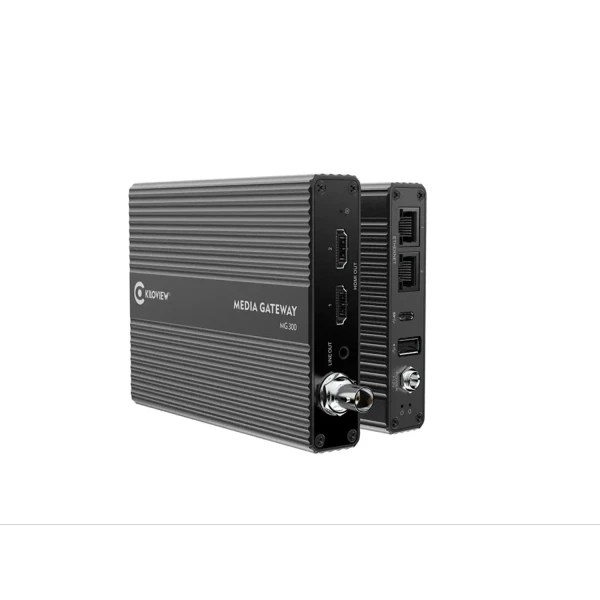

This Kiloview KVW-MG300V2 4K HDMI & 3G-SDl Media Gateway is a high-performance embedded multi-functional IP Media Gateway device.
It integrates functions such as transcoding between H.265 and H.264, multi-channel video decoding to SDI and HDMI output and protocol conversion between NDI HX, SRT, RTMP, RTSP, TS-UDP, and HLS, as well as video combination streaming-all in one.
Designed to interconnect systems and devices from different manufacturers and protocols, MG300v2 enables seamless IP video interoperability.
It functions not only as a versatile converter, but also as a powerful streaming media server-ideal for building flexible IP video workflows.
READ MORE
Kiloview KVW-MG300V2 4K HDMI & 3G-SDl Media Gateway Features:
- RTMP Server Supported: With RMTP server enabled, the encoder can directly transmit the video to MG300 V2 using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.
- Dual Output, Same or Different: 3G-SDI and 4K HDMI dual interface for outputting, output content can be either the same or different. *Note：HDMI output up to 3840×2160@60Hz, SDI up to 1920×1080@60Hz.
- Customize Your Output: Free Layout: The output Layout can be either in grids or a free layout with customized de-sign, PIP, PBP, POP, all as you wish.
- Video Preview Function: With updated feature, you can preview 16 streams of real-time video streams or images on its web page, from which you can choose 9 of the streams for output on displaying screen.
- Audio and Intercom Capabilities: Supports external USB headsets and enables multi-party voice communication through the Kiloview Intercom Server (KIS).
- Centralized Management with KiloLink Server: MG300v2 seamlessly integrates with KiloLink Server, optimizing media transmission across all Kiloview products using any available network links. It enables efficient management, monitoring, and control of all devices throughout the process.
- Standard API Provided for Easy Integration: With optimized API, MG300v2 offers a more convenient interface for video stream functionality development. Utilizing the included demo program, developers can quickly integrate and call features, streamlining the development process and improving efficiency.
Why not buy this Kiloview KVW-MG300V2 4K HDMI & 3G-SDl Media Gateway today?
Kiloview KVW-MG300V2 4K HDMI & 3G-SDl Media Gateway Specifications
| Decoding Output | 1× 3G-SDI Max: 1920×1080@60Hz (1080p60), backward compatible 2× HDMI Max: 3840×2160@60Hz (4Kp60), backward compatible |
| Video Decoding | H.264(AVC), H.265(HEVC) |
| Streaming Protocols | NDI HX2 / NDI HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTP / RTSP / Zixi |
| Video Decoding Capability | H.264/H.265: 16× 720P25 streams 9× 1080P60 streams 4× 4KP30 streams 2× 4KP60 stream |
| Multi-View Layouts | Custom 1/2/3/4/5/6/7/8/9/16-screen layouts |
| Audio Decoding | AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM |
| Audio Channels | 4-channel SDI embedded audio 2-channel HDMI embedded audio 1× 3.5mm Line-out (2-channel) |
| Audio Bitrate Range | AAC: 8Kbps ~ 320Kbps G.711: 64Kbps |
| Network Port | 2× 1000Mbps Ethernet ports |
| Stream Distribution Capacity | 36× SRT/RTMP streams (9 destination × 4 streams each) Concurrently supports 50× NDI HX/RTSP streams |
| Protocol Conversion Capability | 9-channel simultaneous 1080P transcoding |
| OSD/Graphics Overlay | Custom background images + text/graphics overlay |
| Management | Web-based control or centralized management via KiloLink Server Pro |
| Voice Intercom | Supports USB headsets and communicate via Kiloview Intercom System (KIS) |
| USB Port | 1*USB 2.0 Type-A 1*USB 3.0 Type-C |
| Power Supply | DC 12V/1A |
| Power Consumption | 7W(MAX) |
| Weight | 340g |
| Dimensions | 162mm×104mm×25mm |
| Working Temperature | -20℃~60℃ |
