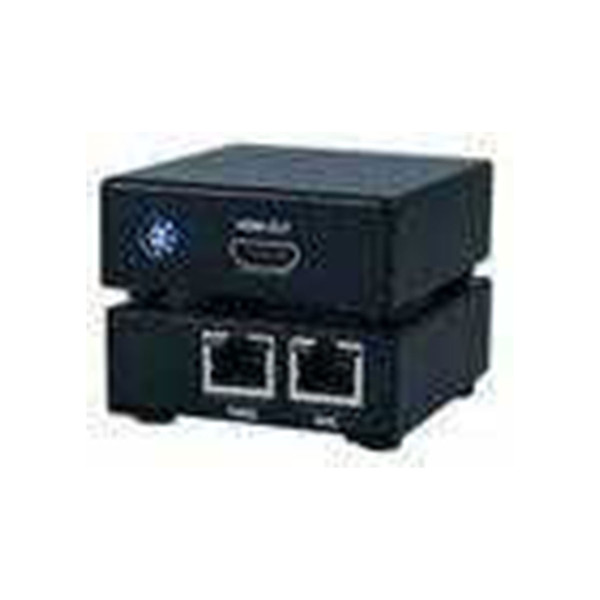

HDMI to CAT-5/6 to 130' - Silicon Image EDID Chipset

HDMI to CAT-5/6 to 130' - Silicon Image EDID Chipset
HDMI to CAT-5/6 to 130' - Silicon Image EDID Chipset

Send a 1080p video & audio HDMI signal >100 feet & optionally control the source device from a far-away area

Latest Premier EDID learning Silicon Image chip set

Skew Adjustment for a Better Picture

Part # LCB-HDMI-C5K
Usually ships the same business day
Today's Price: $149.95
Extend 1 yr warranty to 3 yrs @ $18:
Ask Our WolfPack Experts
Live Chat|833-965-3722|Request Callback|Email

Features

This HDMI 1.3c Rated HDMI over CAT5/6 Extender Set supports a full 1080p HDMI audio and video signal at >100 feet. The HDMI to CAT5 / CAT6 system consists of a transmitter unit and a receiver unit. At the source end, the high-speed transmitter transcodes HDMI signals over two CAT5 cables. At the display end, the externally powered receiver unit transcodes signals back to HDMI.

HDMI over CAT-5 or CAT-6 Extender Features:

  • HDMI 1.3c Rated
  • All HDMI 1.3 compliant devices as well as with older 1.0, 1.1, 1.2 and 1.3 versions
  • ROHS compliant
  • Supports both HDMI audio and HDMI video
  • EDID learning
  • Deep color support up to 12 bits
  • 8 settings of skew equalizer
  • 720p, 1080i, 1080p @ 60Hz for up to 130 feet
  • 720p, 1080i @ 60Hz for up to 200 feet
  • Supports 1080p/24 as well as the new HDTV's that have the 1080p/120/200 and higher options to support 24 FPS
  • Video Bandwidth: 2.25 Ghz
  • Connectors: Standard HDMI 19 pin, RJ45 (CAT5E)
  • HDCP / DDC Compliant
  • Deep Color Support to 12bit
  • Power Supply: 5v 1A DC on receiver unit
  • Compliance: HDMI 1.3c and RoHS
  • Includes transmitter & receiver and 1 - power adapter.
  • Recommended Cables: CAT5E or CAT6.
  • HDMI cables are included with the non-IR unit and must be ordered with IR unit.
  • One year warranty
NOTE 1: This HDMI over CAT5 extender uses the latest Silicon Image HDMI v1.3 EDID chipset which increases the compatibility with more HDMI devices. Many PC's, laptops and surround receivers have major problems outputting to devices other than short HDMI cables and this HDMI over CAT5 extender should solve those problems.

The HDMI to CAT-5 or CAT-6 adapter set comes with one transmitter, one receiver, and one AC adapter that is used with the receiver. The device requires 2-CAT5 or CAT6 cables, one for audio / video and one for the HDCP copy protection signal. If HDCP is not transmitted then only one CAT5 or CAT6 cable is needed. HDMI cables are included with the non-IR unit and must be ordered with IR unit.

This HDMI to CAT5 / CAT6 Extender supports a 2.25 GHz bandwidth, and provides 8 levels of skew compensation adjustments for variations in CAT5 or CAT6 cables. The receiver comes with an AC power adapter to provide low voltage power for the device. The sender does not need an AC adapter.

NOTE 2: 2 - CAT5 cables must be used with this HDMI to CAT5 converter as the 19 HDMI wires are converted to the 2 - CAT5 cables.

NOTE 3: We recommend strongly that you use good CAT5 / 6 cables with any CAT5 / 6 converting products like this one. Most of our "no picture" support calls are due to poor quality and cheap CAT5 cables. Since it is high definition video we only recommend CAT5/6 cables with specs like our CAT-5 /6 cables either bought from us or another high quality supplier.

Compared to regular copper HDMI cable using a booster or repeater, or a fiber cable solution, it is great cost effective way to wire HDMI long distances. Two CAT5 or CAT6 cables are easy to install and terminate in the field to fit exact length requirements. Both the below PVC and Plenum grade CAT5 are low in cost to fit most budgets.

For the best results will be achieved we recommend using Solid CAT5 or CAT6 cable terminated in T-568B. The wires will be in the following order when looking at the CAT5 connector with the tab end DOWN. White/Orange, Orange, White/Green, Blue, White/Blue, Green, White/Brown, Brown.

Why not buy this HDMI over CAT-5 or CAT-6 Extender today?

Specs

EDID Learning: our HDMI over CAT5 this extender can learn the EDID of a Television or projector, and simulate that information for your HDMI video device.

To do this, connect the TELEVISION or HIGH DEFINITION SCREEN to the Transmitter unit and make sure the Television AND the Transmitter unit are both on, and turn the MODE dial on the Transmitter unit to 7. Now, the lights will turn off for a couple of seconds, then come back on. At this time, EDID has been learned. Turn the MODE dial to 0 or 1 by turning Clockwise. DO NOT TURN THE DIAL COUNTER-CLOCKWISE.

This will erase the EDID (Mode 6), and you will have to follow these instructions again. Once the mode is back to 0 or 1, now you can hook up your HDMI device and your Television to the correct units, attach your CAT5 cable, and enjoy your High Definition video at very long distances.

HDMI Version 1.3c give you:

  • Lipsync: They coordinate the output of audio and video which is important as all many types of video and audio equipment can cause unequal delay in the signal.
  • Double the Data Rate: Upgraded from 4.95 gigabits per second to 10.2 Gbps.
  • Deep color: The new spec HDMI 1.3c spec and above allows for billions of colors instead of millions.
  • Uncompressed audio: Dolby TrueHD and DTS-HD Master Audio can be sent uncompressed.

This HDMI over CAT-5 or CAT-6 package includes:

  • 1 - Transmitter
  • 1 - Receiver
  • 1 - Power adapter for receiver end at your projector HDTV
  • The 2 prong AC adapter supplied has an input rating of 100-240V
  • 2 - HDMI cables are included
Compatibility

This HDMI to CAT-5 or CAT-6 extender can be used with:

  1. Any high definition Dish Network and DirecTV receiver with HDMI outputs
  2. High definition TiVo's with HDMI outputs
  3. Any high definition cable receiver with HDMI outputs
  4. Canadian Rogers, Shaw, Bell ExpressVu and Star Choice receivers with HDMI out, or DVI out with a converter
  5. Any "Over The Air" (OTA) high definition receiver with HDMI outputs
  6. Sony PS3, HD DVD and Blu-ray DVD players
  7. Any Xbox360 with HDMI outputs
  8. Any upconverting DVD player with HDMI outputs
  9. Any DVHS VCR with HDMI outputs
  10. An APPLE TV with HDMI outputs
  11. An Roku with HDMI outputs
  12. An VuduTV with HDMI outputs
  13. Many PC video cards with HDMI outputs
  14. Any high definition camcorder with an optional type C to standard HDMI cable
  15. Many A/V surround sound receivers with HDMI switching that include the proper chip set. Call your AV receiver supplier to discuss your application or us.
  16. Any HDCP compliant HDTV, monitor and projector. If the source is HDCP compliant and your TV is not, you will not get a picture.
    17. Please check your TV manual or the manufacturers web site.
  17. and other similar devices.
