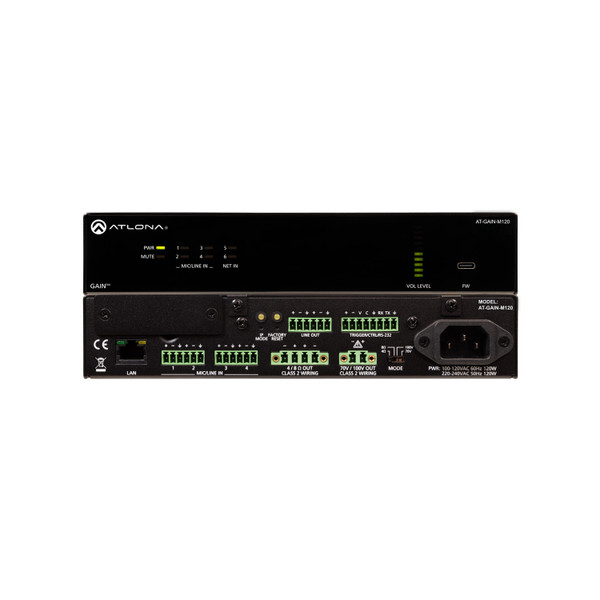

This Gain Audio (Atlona) AT-GAIN-M120 120W Stereo / Mono Mixer Amplifier is a mixer amplifier designed for low or high impedance education and commercial applications. A mode selector switch allows the GAIN-M120 to deliver two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts.
Gain Audio (Atlona) AT-GAIN-M120 120W Stereo / Mono Mixer Amplifier Feature:
- Four analog inputs may be configured for mono or stereo as well as mic (with Phantom power support) or line levels.
- On-board mixer supports gain and ducking adjustments for each input as well as delay, high/low pass filters, equalization and attenuation for each output.
- Supports separate mixes for the amplifier and line outputs including independent gain control.
- Selectable low or high impedance operation.
- 2 x 120 watts @ 4 or 8 ohms.
- 1 x 240 watts @ 70 or 100 volts.
- Ducking lowers the level of program audio sources when signal is detected on the selected input.
- Balanced line level output allows the mixed signal to be passed to an assistive listening system or separate amplifier.
- Standby mode for reducing power consumption and energy costs when not in use.
- Contact closure to engage mute or standby mode from an external system.
- LAN and RS-232 interfaces for configuration as well as control from Velocity or third-party automation systems.
- Status LEDs for power, mute, and input and output levels.
- Rack-mountable 1U half-rack-width enclosure.
- Integrated power supply—no external converter required.
- Optional AT-GAIN-VOL volume control wall plate.
- Optional AT-GAIN-NET network audio interface.
- Includes captive screw connectors, power cord, short rack ear, long rack ear, and dual mounting plate.
Why not buy this Gain Audio (Atlona) AT-GAIN-M120 120W Stereo / Mono Mixer Amplifier from HDTV Supply today?
Gain Audio (Atlona) AT-GAIN-M120 120W Stereo / Mono Mixer Amplifier Specifications:
- Inputs
- 4 analog inputs (mic/line selectable)
- Mic level: −50 dBV
- Consumer line: −10 dBV
- Pro line: +4 dBV
- Dante: 2 channels (optional AT-GAIN-NET)
- Impedance: > 20 kΩ
- Signal detection: ≤ 1 Vrms (−60 dBV)
- Phantom power: +48 VDC, 10 mA
- Outputs
- Class D amplifier
- Stereo (4/8 Ω) or Mono (70V/100V)
- Impedance: < 10 kΩ
- Line-level stereo output
- Amplifier Performance
- Power: 2 × 120 W (4/8 Ω), 1 × 240 W (70V/100V mono)
- Frequency response:
- Low Z: 20 Hz – 20 kHz (±1 dB)
- High Z: 200 Hz – 12 kHz (±1 dB), 80 Hz – 20 kHz (±3 dB)
- THD+N: 0.1% @ 1 kHz, 0.3% (100 Hz–16 kHz)
- SNR: > 85 dB
- CMRR: > 75 dB
- Ethernet
- 1 x RJ45
- Protocols: HTTP, HTTPS, mDNS
- Speed: 10/100/1000 Mbps
- DHCP / Static IP
- RS-232
- 8-pin port (TX, RX, GND)
- Baud: 9600–115200
- Bidirectional
- Buttons & Indicators
- Buttons: IP Mode, Reset, Mode switch
- LEDs: Power, Mute, Input status, Network, Volume meter
- Connectors
- Mic/Line In: 6-pin
- Speaker Out: 4-pin (4/8Ω), 2-pin (70V/100V)
- Line Out: 6-pin
- Control/RS-232: 8-pin
- LAN: RJ45
- USB-C (firmware)
- Power: IEC
- Power
- Idle: 0.5 W
- Network standby: 2 W
- Auto standby: 1–1440 min
- Supply: 100–240 V AC
- Physical
- Size: 44 x 225 x 330 mm
- Weight: 3.15 kg
- Certification
- CE, RoHS, FCC
- NDAA-889 compliant
- TAA: No
