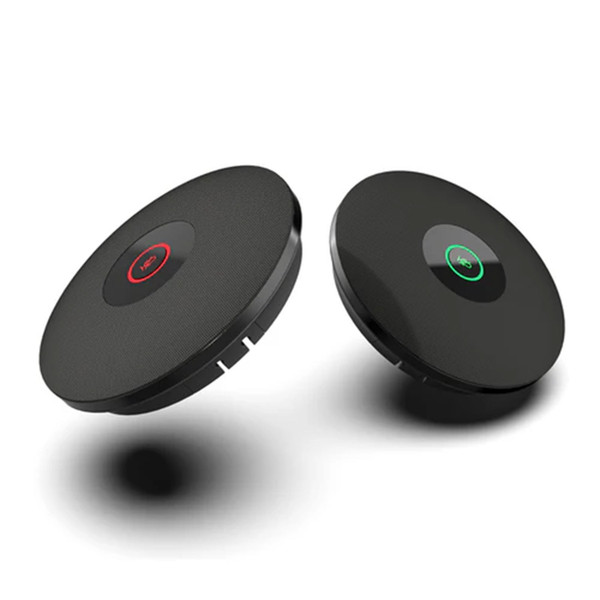

This DVDO Mic-Extension-2 Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera is an extension microphone for the DVDO-C6DL-1-G all-in-one camera with a voice pickup range up to 3m / 10ft.
It includes advanced connectivity with USB and 3.5mm audio interfaces as well as two RJ45 ports: one port that connects to the camera and a second port to daisy chain up to 2 additional microphones.
It features cutting edge audio technologies including echo cancellation (AEC), noise reduction (ANS) and gain control (AGC).
It has a mute button that is green when the microphone is enabled and turns red when it is muted.
DVDO Mic-Extension-2 Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera Features:
- Up to 3 cascading microphones over LAN (PoE)
- 6 built-in digital microphones with high SNR forming a ring array
- Blind beamforming automatically detects speaker and adjusts audio pickup direction
- Advanced audio technologies including echo cancellation (AEC), noise reduction (ANS) and gain control (AGC)
- Ultra low latency for seamless conference calls
- Multiple interfaces including network, USB and 3.5mm audio
Why not buy this DVDO Mic-Extension-2 Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera today?
DVDO-Mic-Extension-2 Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Mic-Extension-2 Extension Microphone for C6DL-1-G Dual-Lens All-in-One Camera today?
1.What audio interfaces are available on the extension microphone?
A: The unit provides a USB Type-C audio interface plus two 3.5mm audio outputs labeled AECOUT and SPKOUT.
2.What is the microphone pickup range I can expect in a room?
A: The microphone pickup range is up to 3 m (10 ft).
3.What microphone array and beamforming does this unit use?
A: It uses six built-in digital microphones forming a ring array and blind beamforming to detect speakers and adjust pickup direction.
4.What are the audio performance specs (sampling rate, frequency response, SNR)?
A: The microphone samples at 32 kHz, has a frequency response of 50 Hz to 16 kHz, and an SNR of 65 dB(A).
5.How is the Mic-Extension-2 powered?
A: It can be powered through USB (5V 500mA) or via the network using 48V PoE.
6.What physical size and weight should I plan for when mounting or placing this microphone?
A: Its dimensions are 170 mm diameter by 40 mm high and it weighs 370 g.
7.Will the mute button tell me when the microphone is muted?
A: Yes; the mute button is green when enabled and turns red when muted.
8.Can I use this microphone as a USB audio device?
A: Yes; it includes a USB Type-C audio interface for connecting to a USB host.
9.Does the microphone provide outputs for connecting external speakers or an AEC return?
A: Yes; it offers two 3.5mm outputs labeled AECOUT and SPKOUT for audio output connections.
