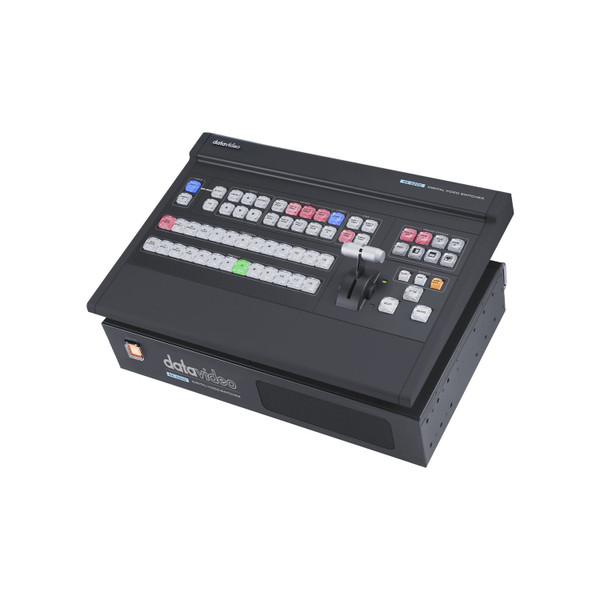

This Datavideo SE-3200 HD 12-Channel Digital Video Switcher Completely customizable 12 input full HD production switcher.
The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.
Datavideo SE-3200 HD 12-Channel Digital Video Switcher Features:
- Designed for Easy Installation
- SE-3200's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.
- Professional Switcher for Studio and Outdoor Broadcast Van:
- The SE-3200 is a lightweight switcher solution with the main unit mountable on the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.
- The SE-3200 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
- The SE-3200 is designed for large scale event production. The switcher equips with intuitive and reliable physical buttons.
- Supports full HD 1080P with scaling on each available input: The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.
- Create stunning video effects with advanced features: Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.
- Built-in Stinger Transitions and backgrounds: Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.
- Included CG Title Creator
- All 3200 series switchers have built-in support for Datavideo CG software.
- This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.
- Custom Multiview layout & dual Multiview output
- Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!
- Flex Source to go that extra mile
- Flex Source gives you nearly the power of a 2 M/E switcher, in a 1 M/E switcher!
- Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.
- The Flex Source provides 4 PIPs with 3D Borders, with Background layer and an additional Key Layer allowing many sophisticated.
- 4 Chromakeyers for a complete virtual studio experience: Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.
- Up to 8 picture-in-picture frames with unique 3D borders: Create up to 8 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.
- Variety of video and audio input/output: Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
- Plug-and-Play: There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Why not buy this Datavideo SE-3200 HD 12-Channel Digital Video Switcher today?
Datavideo SE-3200 HD 12-Channel Digital Video Switcher Specifications:
- Model Number: SE-3200
- Video Standard: Full HD
- Video Format
- 1080p 50/59.94/60Hz
- 1080i 50/59.94/60Hz
- 720p 50/59.94/60Hz
- Video Processing
- SDI: 4:2:2
- HDMI: YUV 4:2:2, RGB: 4:4:4
- Input Routable / Crosspoint: All 12, repeatable
- Video Input: 8x SDI, 4x HDMI
- Mix HD & SD Source: ----
- Computer Graphic Interface: 4 via HDMI
- Video Output
- 6x SDI Outputs assignable:
- Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
- 3x HDMI assignable:
- Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
- Down-converted Output: 1x SDI
- Built-in Multi-view Monitoring Out: HDMI & SDI assignable
- Analogue Audio Input: 4x Balanced XLR
- Analogue Audio Output: 2x Balanced XLR
- Digital Embedded Audio Support: Input 2 channels, Output 4 channels
- Audio Delay Calibration: Up to 16 fields or 8 frames per channel
- A+V Switching: Yes
- Chromakey: 4
- Title Creator: Yes, CG-200 software free download
- USK: 4x Keyer support Chromakey/ Linear/ Luma Key
- DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 8 (4x PIP, 4x Flex Source)
- Logo Insertion: 2
- Still Store: 999+
- Effects: DVE, FTB, Cut, 32 Wipe with border
- Transition Preview: Full transitions preview
- Sync / Reference In/Out
- Built-in Genlock
- Support external sync with loop thru
- Tally Output: 1x D-sub 25pin, dual color
- PC Remote Control: RS-232 / DVIP (Ethernet)
- Camera Control: ----
- Built-in Audio Mixer: ----
- Storage: ----
- Recording File System: ----
- Recording File Format: ----
- Video Encode: ----
- Audio Encode: ----
- Streaming Protocol: ----
- Firmware Update: Ethernet
- Special Features
- 4 User Memory Preset
- Free Virtual Set and Stinger transition included
- Chassis: 2 units, 2RU rack-mount mainframe
- Dimension (LxWxH)
- 433 x 312 x 76 mm (switcher)
- 432 x 252 x 88 mm (main unit)
- Weight: 4 kg
- Power: DC 12V, 69W
- Operating Temp. Range: 0~40 °C
- What's in the Box
- 1 x SE-3200 Main Unit
- 1 x SE-3200 Control Board
- 2 x AD Switch DC 12V
- 1 x AC Cord
- 1 x DB9P TO DB9P Cable
- 12 x Screw
- 2 x 2U Ear Rack
