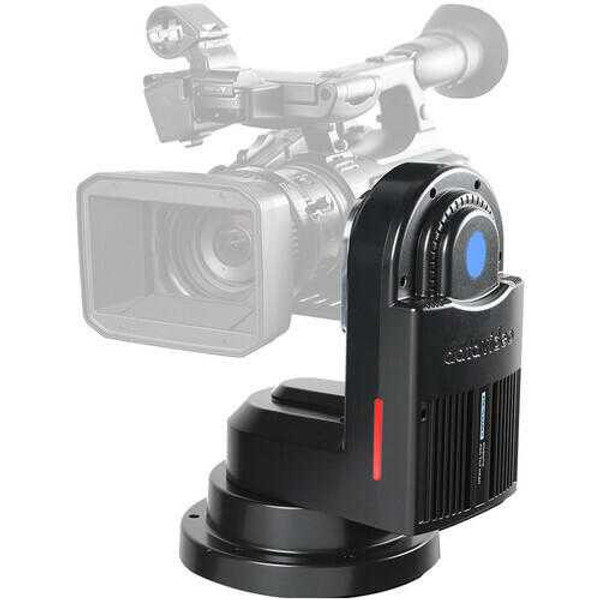

This Datavideo PTR-10-MK-II Robotic Pan Tilt Head (DVIP) - B-Stock & Open Box is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic. A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10 MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.
Cost-Effective
PTR-10 MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.
Wide Range of Compatible Cameras Supported
The PTR-10 MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.
Light Weight, Strong, and Sturdy Design
With a weight of 3.4 kg, PTR-10 MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Diversified Controller Options
Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series (T model only) will fit your need.
Built-in Tally Light
With the big tally light in the front to show the status of your camera.
D-tap Connector for DC Output
The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras. Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )
Datavideo PTR-10-MK-II Robotic Pan Tilt Head (DVIP) - B-Stock & Open Box Features:
- Cost-Effective
- Wide Range of Compatible Cameras Supported
- Light Weight, Strong, and Sturdy Design
- Diversified Controller Options
- Built-in Tally Light
- D-tap Connector for DC Output
Why not buy this Datavideo PTR-10-MK-II Robotic Pan Tilt Head (DVIP) - B-Stock & Open Box today?
Datavideo PTR-10-MK-II Robotic Pan Tilt Head (DVIP) - B-Stock & Open Box Specifications:
- Video Interface: HDMI x 1, SDI x 1
- Video Output: 2160p 29.97/25, 1080p 59.94/50, 1080i 59.94/50, 720p 59.94/50
- Control Unit: RMC-180, RMC-300A, VISCA Protocol Controller, IP Control, IR remote
- Panning / Tilting Range: Pan: 340°, Tilt: ±45°
- Panning / Tilting Speed: Pan: 0.12~15° /Sec, Tilt: 0.06~10° /Sec
- Preset: Pan/Tilt position 50
- Control Distance: Sony VISCA, DVIP
- Control Protocal: Sony VISCA, DVIP
- Control Input: RS-422, DVIP
- Maximum Load: 4 KG Max
- Control Output: RS-232, RS-422, BX-Lens, LanC
- Power Requirement: DC 12V~ 18V, 3A (Without Camera) / DC 12V~ 18V, 5A (With Camera)
- Power Supply: DC 12/10/8.4/7.4V, 24W Max
- Operating Temp. Range: 0~40 C°
- Operating Humidity Range: 10~80%
- Storage Temp. Range: -10~60C°
- Storage Humidity Range: 5~80%
- Weight: 3.4 kg
- Dimension (LxWxH)t: 230 x 190 x 300 mm
