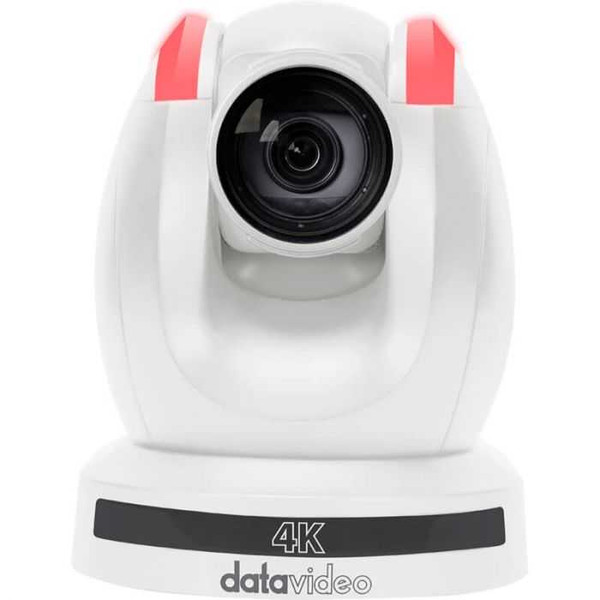

Datavideo PTC-280W 12x 4K PTZ Camera White

Datavideo

Datavideo PTC-280W 12x 4K PTZ Camera White
$1,799.00
Part Number:
PTC-280W
UPC:
793132862140
Condition:
New
Availability:
In Stock
1:
4K PTZ Camera
2:
1/2.5 CMOS Sensor"
3:
4K Video Interfaces
4:
External Audio Input
5:
Free Shipping
6:
TAA Compliant
SAVE PRICE WITH B-STOCK:

This Datavideo PTC-280W 12x 4K PTZ Camera White can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. It supports dual streaming output for A/V applications, plus you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Datavideo 4K HDMI/3G-SDI PTZ Camera with 12x Optical Zoom (Black)

PTZ VIEW ASSIST: CONTROL UP TO FOUR CAMERAS

The camera control app is tailored for all Datavideo PTZ cameras. It can monitor the live streaming video from PTC-140, PTC-280 and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets and adjust white balance, focus and IRIS. The app is able to decode the live stream via RTSP, SRT, HLS and NDI (only RTSP available now), easily monitor the live streaming video and set up the parameters promptly in one application. PTZ View Assist is avaialble on Google Play and App Store for free!

  • Low Noise in Low Light
    Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
  • Multiple Simultaneous Video Outputs
    Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
  • Multiple Network Protocol with Dual Stream Function
    Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
  • Supports H.264/H.265 Video Compression
    Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.
  • Compatible with Various Controllers
    Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
  • RS-422, DVIP and Ethernet Camera Control
    RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
  • Tally Light
    Green and red lights tally to show the preview and program status for broadcast applications.

SEAMLESSLY COMPATIBLE WITH DVCLOUD

Get the most out of your streaming hardware using DVCloud. The PTC-280 is seamlessly compatible with Datavideo’s DVCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

Datavideo PTC-280W 12x 4K PTZ Camera White Features:

  • 4K PTZ Camera
  • 2160p50/59.94/60 PTZ Camera
  • 1/2.5" CMOS sensor
  • 12x Optical Zoom, 16x Digital Zoom
  • 4K Video interfaces: HDMI, IP (H.264 & H.265)
  • 2160p and 1080p (3G-SDI) Simultaneous video output
  • RS-422 Serial Port Control
  • External audio input: 3.5mm audio in/line in (switchable on the web UI)
  • User-friendly Web UI

Why not buy this Datavideo PTC-280W 12x 4K PTZ Camera White today?

Datavideo PTC-280W 12x 4K PTZ Camera White Specifications:

  • MODEL NUMBER: PTC-280
  • VIDEO FORMAT/RESOLUTION
    • HDMI:
      • 2160p 60/59.94/50/30/29.97/25
      • 1080p 60/59.94/50/30/29.97/25
      • 1080i 60/59.94/50
      • 720p 60/59.94/50
    • SDI:
      • 1080p 60/59.94/50/30/29.97/25
      • 1080i 60/59.94/50
      • 720p 60/59.94/50
    • (2160p 60/59.94/50 YUV 4:2:0 only)
  • IMAGE SENSOR: 1/2.5" CMOS
  • EFFECTIVE PIXELS (APPROX.): 8.51Mega Pixels
  • S/N RATIO: ≥55dB
  • MIN. ILLUMINATION: 0.5 Lux @ (F1.8, AGC ON)
  • ELECTRONIC SHUTTER: 1/30s ~ 1/10000s
  • ZOOM RATIO: 12x Optical Zoom, 16x Digital Zoom
  • GAMMA CONTROL: Off / Normal
  • IRIS CONTROL: Auto / Manual
  • DIGITAL NOISE REDUCTIONS: 2D/3D
  • ON-SCREEN DISPLAY (OSD): English/Simplified Chinese/Traditional Chinese
  • WHITE BALANCE: Auto, Indoor, Outdoor, OnePush, Manual, VAR
  • AGC / GAIN CONTROL: Yes
  • MIRROR / FLIP IMAG: Yes
  • FOCUS MODE: Auto/Manual
  • PANNING / TILTING RANGE
    • Pan: 300°
    • Tilt: +130° to -15°
  • PANNING / TILTING SPEED
    • Pan: 0.876°/s~43°/s
    • Tilt: 0.693°/s ~21.32°/s
  • PRESET: 255
  • FOCAL LENGTH: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • FIELD OF VIEW (HORIZONTAL, WIDE): 71°
  • IMAGE COMPENSATION: Back light compensation
  • VIDEO OUTPUT
    • HDMI 2.0 x1
    • 3G-SDI x1
    • 10/100/1000M RJ45 x1
  • AUDIO INPUT: 3.5mm x1
  • TALLY LED: Yes
  • LENS FILTER: N/A
  • CONTROL PROTOCOL
    • Pelco-D, Pelco-P,
    • VISCA, VISCA over IP
    • DHCP, RTSP, RTMP (IP Cam), RTMPS,
    • DVIP
  • REMOTE CONTROL INTERFACE
    • IR
    • Web UI
    • RS-422
    • DVIP
  • VIDEO COMPRESSION FORMAT: H.264/H.265/MJPEG
  • AUDIO COMPRESSION FORMAT: AAC
  • AUDIO BITRATE: 96Kbps, 128Kbps, 256Kbps
  • HD IP INTERFACE: ----
  • STREAMING PROTOCOLS: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
  • FIRST STREAM SUPPORTED RESOLUTION
    • 3840x2160
    • 1920x1080
    • 1280x720
    • 1024x576
    • 960x540
    • 640x480
    • 640x360
  • SECOND STREAM SUPPORTED RESOLUTION
    • 1280x720
    • 1024x576
    • 720x576 (50Hz)
    • 720x480 (60Hz)
    • 720x408
    • 640x360
    • 480x270
    • 320x240
  • VIDEO BITRATE: 32Kbps ~ 50Mbps (Single Stream)
  • VIDEO BITRATE MODE: VBR, CBR
  • ENCODING FRAME RATE
    • 50Hz: 1-50fps
    • 60Hz: 1-60fps
  • POE
    • Yes.
    • IEEE 802.3AT.
  • F/W UPDATE: Via Web UI or USB 2.0
  • IR CONTROL: Yes
  • CAMERA CONTROL UNIT: RMC-180 series/RMC-300 series/PTZ View Assist APP
  • TRIPOD MOUNT: 1/4-20 UNC
  • OPTIONAL ACCESSORIES: WM-1/ WM-10/ WM-11
  • COLOR: Dark Blue/White
  • DIMENSION (LXWXH): 173 (W) x 219 (H) x 189.08 (D)
  • WEIGHT: 2.8 kg
  • OPERATING TEMP. RANGE: 0~40 °C
  • POWER: DC 12V 12W
