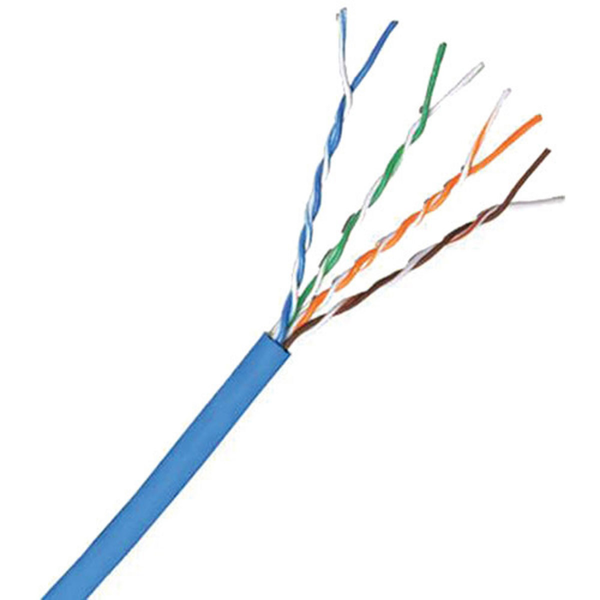

This Comprehensive Connectivity CAT6PB-1000 1000ft Cat6 550Mhz Plenum UTP Bulk Cable, Solid Blue stands as a reliable solution. This cable features four unshielded twisted pairs of solid 23 AWG, designed to support all category 6 applications, making it an ideal choice for both commercial and residential use.
Whether you're setting up a 100BASE-TX Ethernet, 100BASE-VG, or 155 ATM, this Cat 6 cable is particularly suited for high bandwidth applications. It's capable of handling advanced applications such as 622 ATM, Wideband, and Ethernet 1000BASE-T, and is future-proofed for emerging applications with anticipated data rates up to 3.2Gbps.
With a nominal O.D. of 0.25 inches, this bulk cable is not only robust but also easy to install and manage. It's UL listed NEC, CMP/MPP, ensuring its compliance with safety standards and its suitability for plenum spaces.
This cable meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations, guaranteeing its performance and reliability. The solid blue color of the cable adds a touch of professionalism to your setup, making it a perfect blend of functionality and aesthetics.
In a world where fast and reliable data transmission is key, the Comprehensive 1000' Cat 6 550Mhz Plenum UTP Solid Blue Bulk Cable is your go-to choice for a seamless and efficient networking experience.
Comprehensive Connectivity CAT6PB-1000 1000ft Cat6 550Mhz Plenum UTP Bulk Cable, Solid Blue Features:
- 4-pair unshielded twisted pair cable
- Polyethylene separator for enhanced NEXT, ELFEXT and RL Bandwidth
- 23AWG solid bare copper conductors for superior conductivity
- Meets EIA/TIA CAT6 specifications
- Durable, high-density polyethylene insulation, PVC jacket
- Ideal for 10Base-T(IEEE 802.3), 100Base-TX(IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN(IEEE 802.12), Token Ring(IEEE 802.5), TP-PMD(ANSI X3T9.5), 550 Mbps CDDI, ATM 155 and all proposed Category 6 requirements for high-speed, full duplex, parallel transmission protocols
- CMP rated for single floor, general purpose use in walls and ceilings
- Verified compliant with EIA/TIA standards by ETL
- CSA listed
Why not buy this Comprehensive Connectivity CAT6PB-1000 1000ft Cat6 550Mhz Plenum UTP Bulk Cable, Solid Blue from HDTV Supply today?
Comprehensive Connectivity CAT6PB-1000 1000ft Cat6 550Mhz Plenum UTP Bulk Cable, Solid Blue Specifications:
- Conductors: 4 Twisted Pairs 23 AWG Plenum Solid bare copper cable
- Bandwidth: Supports voice/data/video distribution applications up to 550Mhz
- Standards: Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2
- Conductor DC Resistance: 9.8 Ohm at 100m maximum
- Outer Diameter: 6.3mm
- UL Rating: CMP
- Jacket: Plenum
- RoHS Compliant: Yes
- Weight: 27lbs / 12.15kg
