Product Overview

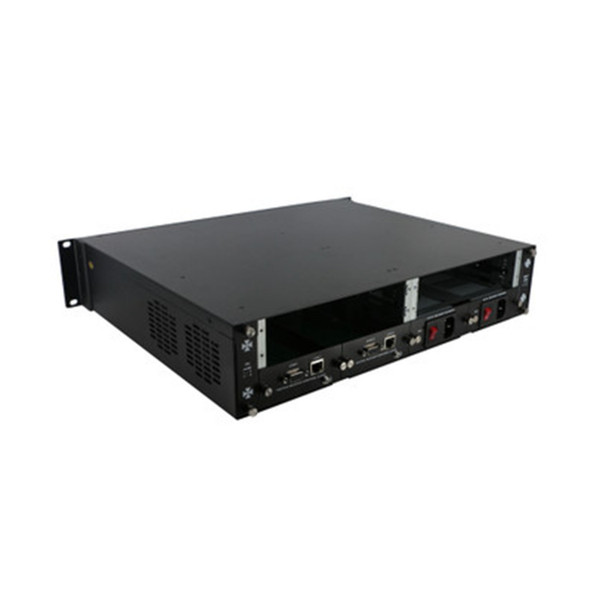

HDTV Supply's WolfPack™ 4K@60Hz 8x8 Modular HDMI Matrix Switcher Chassis (Part No. HDTV-MM08-4K60) is a professional-grade, rack-mountable AV distribution system engineered for demanding multi-source, multi-display installations. Built on a 16x16 backplane architecture, the 8x8 chassis accepts up to two slide-in input cards and two slide-in output cards — each providing four ports — delivering a fully configurable 8-input by 8-output routing matrix in a compact 4U rack footprint.
Unlike fixed-port matrix switches, this modular design allows you to mix and match HDMI input cards, HDMI output cards, and HDBaseT CAT6 extension cards within the same chassis. This eliminates the need for external signal converters and lets you build exactly the system your installation requires — whether you need all direct HDMI connections, all long-distance HDBaseT runs over CAT6, or a hybrid of both.
Every signal path supports 4K resolution at 60 frames per second (3840×2160@60Hz, 4:4:4 color space), delivering four times the pixel density of 1080p and the smooth 60fps motion essential for live sports, gaming, and broadcast content. The system is fully HDCP 2.3 compliant, ensuring that 4K protected content from streaming services, 4K Blu-ray players, and cable/satellite providers displays correctly on every connected screen.
HDTV Supply, Inc. is a certified HDBaseT.Org Approved Adopter of HDBaseT™ products, guaranteeing interoperability and compliance with the global HDBaseT standard for long-distance AV signal distribution.
Key Features
The WolfPack 8x8 chassis is engineered with the reliability and flexibility required for permanent commercial AV installations. The following features distinguish it from fixed-port consumer and prosumer matrix switches.
True 4K@60Hz Performance
Supports 3840×2160 at 60 frames per second with 4:4:4 color space — four times sharper than 1080p and essential for live sports, gaming, and broadcast content.
Modular Hot-Pluggable Cards
Slide-in 4-port input and output cards allow quick field replacement without system downtime. Mix HDMI and HDBaseT cards in the same chassis for maximum flexibility.
HDBaseT Extension over CAT6
Optional HDBaseT cards extend 4K@60Hz signals up to 110 feet — or 1080p up to 220 feet — over standard CAT6 cable, eliminating costly long HDMI cable runs.
HDCP 2.3 & HDMI 2.0 Compliant
Full compliance with the latest content protection standard ensures 4K protected content from Netflix, Amazon, 4K Blu-ray, and cable/satellite displays without authentication errors.
Advanced EDID Management
Intelligent EDID handling ensures each source always receives the correct display capability data, preventing resolution mismatches, black screens, and audio dropouts when switching.
40 Customizable Preset Scenes
Save and recall up to 40 custom routing configurations with a single button press — ideal for venues that switch between regular programming, events, and presentations.
18 Control Methods
Control via iOS/Android app, Web GUI, RS232 serial, LAN/IP, and front-panel buttons. Optional certified drivers for Crestron, RTI, Elan, and 2-way Control4 are available.
Dual Redundant Power Supplies
Two independent 110V–240V AC power supplies provide automatic failover, ensuring uninterrupted operation in mission-critical environments like broadcast and hospitality.
Closed Caption Pass-Through
Full CC data pass-through ensures ADA compliance and accessibility for public venues including restaurants, bars, airports, and healthcare facilities.
Optional 7" Color Touch Screen
An optional touch screen panel provides intuitive on-site control without requiring a separate control system — ideal for sports bars and smaller venues.
Optional Sports Bar Control
Dedicated sports bar control integration lets staff manage all TVs and sources from a single iPad interface — no expensive control pads required.
Optional Video Wall Processor
Add optional video wall processing cards to create multi-screen video wall displays from any source — perfect for lobbies, command centers, and event spaces.
Technical Specifications
The following specifications apply to the 8x8 chassis. Individual card specifications may vary; refer to each card's product page for detailed technical data.
| Specification | Detail |
|---|---|
| Part Number | HDTV-MM08-4K60 |
| Chassis Configuration | 8×8 modular (8 inputs, 8 outputs) |
| Backplane Architecture | 16×16 (expandable) |
| Card Slots | 2 input + 2 output (4 ports per card) |
| Video Resolution | Up to 4K@60Hz (3840×2160, 4:4:4) |
| HDMI Version | HDMI 2.0 |
| HDCP Compliance | HDCP 2.3 (backward compatible with 2.2, 1.4) |
| Input Signal Types | HDMI 2.0 / HDBaseT (card-dependent) |
| Output Signal Types | HDMI 2.0 / HDBaseT (card-dependent) |
| HDBaseT Range — 4K@60Hz | Up to 110 feet (33 m) over CAT6 |
| HDBaseT Range — 1080p | Up to 220 feet (67 m) over CAT6 |
| HDBaseT Range — 4K@60Hz (Extended Cards) | Up to 220 feet (67 m) over CAT6 |
| HDBaseT Range — 1080p (Extended Cards) | Up to 330 feet (100 m) over CAT6 |
| EDID Management | Advanced, per-input programmable |
| Preset Scenes | 40 save/recall configurations |
| Control Methods | 18 total: Web GUI, RS232 (×2), LAN/IP, Front Panel, iOS App, Android App, Crestron*, RTI*, Elan*, Control4* (*optional drivers) |
| Control Ports | Dual RS232 + Dual LAN (redundant paths) |
| Power Supply | Dual redundant 110V–240V AC, auto-switching |
| Rack Size | 4U (standard 19" rack) |
| Audio | HDMI embedded audio pass-through; analog extraction (card-dependent) |
| Closed Caption | Full CC pass-through |
| Optional Accessories | 7" color touch screen, video wall processor, sports bar control system |
| Warranty | 2-Year Advance Replacement |
| Tech Support | Free lifetime (phone, chat, email) |
| Certifications | HDBaseT.Org Approved Adopter |
Card Options & Pricing
The chassis is sold as a base unit and configured to your exact requirements by selecting input and output cards below. Each card occupies one slot and provides four ports, enabling a maximum of 8 inputs and 8 outputs.
Input Cards
| Card Type | Signal | Range | 4 Inputs | 8 Inputs |
|---|---|---|---|---|
| 4K60 HDMI Input w/Audio & HDCP 2.3 | HDMI 2.0 | Standard HDMI cable | $200 | $400 |
| 4K60 HDBaseT Input — Standard | HDBaseT / CAT6 | 4K@60Hz to 110 ft / 1080p to 220 ft | $400 | $800 |
| 4K60 HDBaseT Input — Extended | HDBaseT / CAT6 | 4K@60Hz to 220 ft / 1080p to 330 ft | $450 | $900 |
Output Cards
| Card Type | Signal | Range | 4 Outputs | 8 Outputs |
|---|---|---|---|---|
| 4K60 HDMI Output w/Audio & HDCP 2.3 | HDMI 2.0 | Standard HDMI cable | $200 | $400 |
| 4K60 HDBaseT Output — Standard | HDBaseT / CAT6 | 4K@60Hz to 110 ft / 1080p to 220 ft | $400 | $800 |
| 4K60 HDBaseT Output — Extended | HDBaseT / CAT6 | 4K@60Hz to 220 ft / 1080p to 330 ft | $450 | $900 |
HDBaseT Transmitters (TX) & Receivers (RX)
HDBaseT output cards require a Receiver (RX) unit at each display location to convert the CAT6 signal back to HDMI. HDBaseT input cards require a Transmitter (TX) at each source location.
| Device | Range | 1 Unit | 2 Units | 3 Units |
|---|---|---|---|---|
| TX — Standard (4K@60Hz) | 110 ft via CAT6 | $100 | $200 | $300 |
| TX — Extended (4K@60Hz) | 220 ft via CAT6 | $150 | $300 | $450 |
| RX — Standard (4K@60Hz) | 110 ft via CAT6 | $100 | $200 | $300 |
| RX — Extended (4K@60Hz) | 220 ft via CAT6 | $150 | $300 | $450 |
1× 8x8 Chassis ($600) + 2× 4-Port HDMI Input Cards ($400) + 2× 4-Port HDMI Output Cards ($400) = $1,400 total for a complete 4K@60Hz 8×8 HDMI matrix switch.
Who Needs an 8x8 HDMI Matrix Switch?
The WolfPack 8x8 modular chassis is designed for professional AV installations where multiple sources must be distributed to multiple displays with independent routing control, long-distance signal extension, and reliable 24/7 operation.
Sports Bars & Restaurants
Route up to 8 cable/satellite feeds to 8 TV zones. Staff control any source to any TV from an iPad — no expensive control pads needed.
Hotels & Hospitality
Distribute 4K content to guest rooms, lobbies, and conference areas over existing CAT6 infrastructure — up to 220 feet per run.
Corporate Conference Rooms
Switch between laptops, video conferencing systems, and presentation sources across multiple meeting rooms from a centralized AV rack.
Education & Lecture Halls
Route instructor workstations, document cameras, and streaming sources to classroom displays and overflow screens simultaneously.
Houses of Worship
Manage cameras, presentation computers, and streaming sources across sanctuary screens, overflow rooms, and lobby displays from one system.
Broadcast & Production
Route 4K camera feeds, graphics, and replay sources to production monitors, confidence monitors, and on-air displays with frame-accurate switching.
Retail Digital Signage
Distribute promotional content and brand video to display zones throughout a retail environment from a single centralized media server.
Control Rooms
Mission-critical environments benefit from dual redundant power, 18 control methods, and hot-pluggable cards for zero-downtime operation.
Compare WolfPack Matrix Switch Models
All WolfPack modular chassis models share the same card ecosystem, control infrastructure, and 2-year warranty. Choose the chassis size that matches the scale of your installation.
| Feature | 8×8 Chassis This Model |
16×16 Chassis | 36×36 Chassis |
|---|---|---|---|
| Starting Price | $600 | $1,000 | $2,500 |
| Max Inputs | 8 | 16 | 36 |
| Max Outputs | 8 | 16 | 36 |
| 4K@60Hz | ✔ Yes | ✔ Yes | ✔ Yes |
| HDCP 2.3 | ✔ Yes | ✔ Yes | ✔ Yes |
| HDBaseT over CAT6 | ✔ Optional | ✔ Optional | ✔ Optional |
| 40 Preset Scenes | ✔ Yes | ✔ Yes | ✔ Yes |
| Dual Power Supplies | ✔ Yes | ✔ Yes | ✔ Yes |
| Crestron / Control4 | ✔ Optional | ✔ Optional | ✔ Optional |
| Rack Size | 4U | 4U | 8U |
| Best For | 8-TV sports bars, small conference rooms, boutique hotels | Mid-size venues, hotels, multi-room AV | Large venues, stadiums, broadcast facilities |
Frequently Asked Questions
The following questions are answered for AV integrators, IT managers, and venue operators evaluating this product. These answers are structured for Google AI Overviews, ChatGPT, and Perplexity citation.
Warranty & Support
HDTV Supply stands behind every WolfPack product with industry-leading warranty and support commitments designed to protect your investment and minimize installation downtime.
2-Year Advance Replacement
We ship your replacement before you return the defective unit — minimizing downtime in your installation.
Free Lifetime Tech Support
Phone, live chat, and email support from AV specialists — free for the life of the product, no expiration.
25 Years in Business
HDTV Supply has been a trusted AV specialist since 1999 with over 5,000 five-star customer ratings.
HDBaseT Approved Adopter
Certified by HDBaseT.Org, guaranteeing interoperability and compliance with the global HDBaseT standard.
