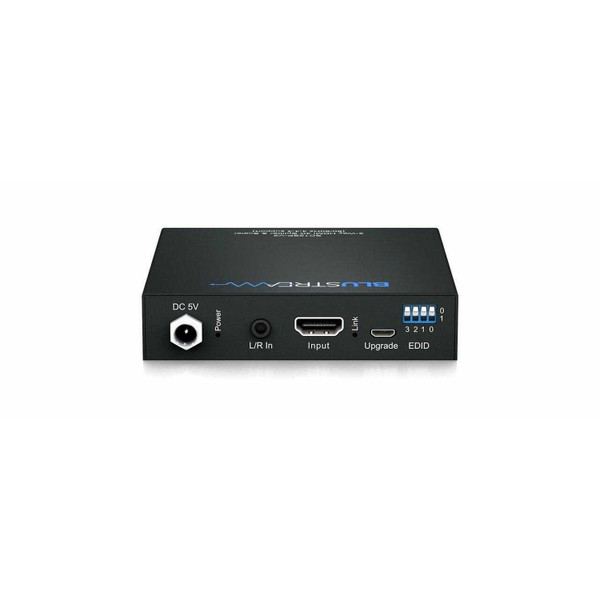

This Blustream SC12SP-V2 1x2 4k - 1080p down scaler with 4k pass trough designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions.
The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats.
The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.
Blustream SC12SP-V2 1x2 4k - 1080p down scaler with 4k pass trough Features:
- Features 1 x HDMI input that is replicated to 2 x HDMI outputs
- Supports HDMI 2.0 18 Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- HDMI output 2 supports 4K UHD video pass-through
- HDMI output 1 will down-scale the video input to the following formats:
- 1080p @24/25/30/50/60Hz* (for screens that do not support 4K)
- 4K @50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD
- Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 support
Why not buy this Blustream SC12SP-V2 1x2 4k - 1080p down scaler with 4k pass trough today?
Blustream SC12SP-V2 1x2 4k - 1080p down scaler with 4k pass trough Specifications:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female
- Video Output Connectors: 2 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1 x RCA (SPDIF), 1 x 3.5mm stereo jack (L/R)
- EDID: 4-pin DIP switch
- Product Upgrade: 1 x 3-Pin Phoenix connector & 1 x Type A USB female
- Dimensions (W x H x D): 122mm x 23mm x 135mm
- Shipping Weight: 0.8kg
- Operating Temperature: 32?F to 104?F (0?C to 40?C)
- Storage Temperature: -4?F to 140?F (-20?C to 60?C)
- Power Supply: 5V/1A DC
Why not buy this Blustream SC12SP-V2 1x2 4k - 1080p down scaler with 4k pass trough today?
What HDMI input and outputs does the SC12SP-V2 have?
A: It has 1 HDMI Type A 19-pin input and 2 HDMI Type A 19-pin outputs.
Which output passes 4K unchanged and which output is downscaled?
A: HDMI output 2 supports 4K UHD video pass-through while HDMI output 1 down-scales the video input.
What video formats can the SC12SP-V2 downscale to on the downscaled output?
A: The downscaled output can deliver 1080p at 24/25/30/50/60Hz and 4K at 50/60Hz 4:2:0.
Does the SC12SP-V2 support HDCP and which version?
A: Yes; it supports HDCP 2.2.
What audio outputs and formats does the unit provide?
A: It provides an RCA (SPDIF) coaxial output and a 3.5mm stereo jack (L/R), and supports HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD.
Can I use this with a 4K 60Hz 4:4:4 source?
A: Yes; the SC12SP-V2 supports up to 4K UHD 60Hz 4:4:4 on the input.
Will it pass HDR from my 4K source?
A: Yes; the product supports the HDMI 2.0 18 Gbps specification including HDR.
Does the SC12SP-V2 let me extract audio to analog and coaxial at the same time?
A: Yes; HDMI audio breakout to analogue L/R and coaxial digital outputs is supported concurrently.
How is EDID managed on this unit?
A: EDID is managed with a 4-pin DIP switch for advanced EDID management.
What power specification does the SC12SP-V2 require?
A: The unit lists a 5V/1A DC power supply requirement.
