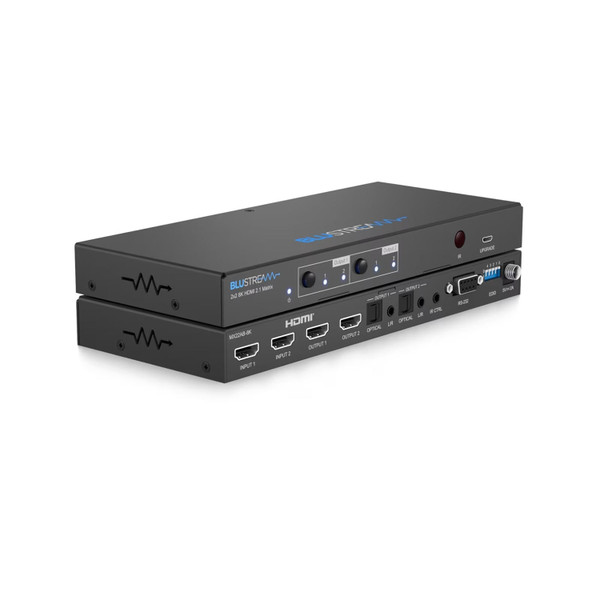

The Blustream MX22AB-8K is a compact 2x2 HDMI 2.1 matrix supporting up to 8K@60Hz and 4K@120Hz, enabling flexible routing of two sources to two displays with auto or manual control via RS-232, IR, or front panel. It features analogue and optical audio breakout, HDCP 2.3 compliance, and advanced EDID management for reliable performance and compatibility.
Blustream MX22AB-8K 2x2 8K HDMI 2.1 Matrix Features:
- Features 4x HDMI 2.1 inputs that can be switched to a single HDMI output
- Supports HDMI 2.1 40Gbps specification including HDR
- Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
- Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Auto HDMI source switching via 5V and / or TMDS signal sensing
- Manual HDMI source switching via front panel, IR and RS-232
- Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
- 5V / 12V IR Compatible
- HDCP 2.3 compliant with advanced EDID management
Why not buy this Blustream MX22AB-8K 2x2 8K HDMI 2.1 Matrix today?
Blustream MX22AB-8K 2x2 8K HDMI 2.1 Matrix Specification
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1 x Optical (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
- IR Input Ports: 1 x 3.5mm stereo jack
- RS-232 Serial Port: 1 x DB9, female
- Dimensions (WxDxH): 196 x 104 x 41mm, including connections, without feet (removable) • Shipping Weight: 0.9kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 1 x 5V/2A DC
Why not buy this Blustream MX22AB-8K 2x2 8K HDMI 2.1 Matrix today?
What video resolutions and frame rates does the MX22AB-8K support?
A: The MX22AB-8K supports up to 8K@60Hz (YCbCr 4:2:0 10bit), 8K30 (RGB/YCbCr 4:4:4 10bit), and 4K120 (RGB/YCbCr 4:4:4 10bit).
How many HDMI inputs and outputs does this matrix have and what type are they?
A: It has four HDMI inputs and one HDMI output, all listed as HDMI Type A, 19-pin, female.
Does the MX22AB-8K support HDCP and EDID management?
A: Yes; the unit is HDCP 2.3 compliant and includes advanced EDID management.
What audio outputs are available for external audio devices?
A: The matrix provides both an optical S/PDIF output and an analogue L/R output via a 3.5mm stereo jack.
Is a power supply included with the MX22AB-8K?
A: The specification lists the required power supply as 5V/2A DC but does not state whether an AC adapter is included in the package.
Can I route two different HDMI sources to two displays at the same time?
A: Yes; the MX22AB-8K is a 2x2 HDMI matrix designed to route two sources to two displays with flexible switching.
Will this matrix pass modern HDR and high-bandwidth HDMI 2.1 signals?
A: Yes; it supports the HDMI 2.1 40Gbps specification including HDR and includes features like ALLM and VRR.
How can I control source switching on the MX22AB-8K?
A: You can switch sources automatically via 5V and/or TMDS sensing, or manually using the front panel, IR, or RS-232.
Can I connect an IR remote or integrate this with an IR system?
A: Yes; the unit supports 5V/12V IR and lists an IR input port using a 3.5mm stereo jack.
What physical space and operating conditions should I allow for this unit?
A: The MX22AB-8K measures 196 x 104 x 41mm (including connections, without feet) and operates between 32°F and 104°F (0°C to 40°C).
