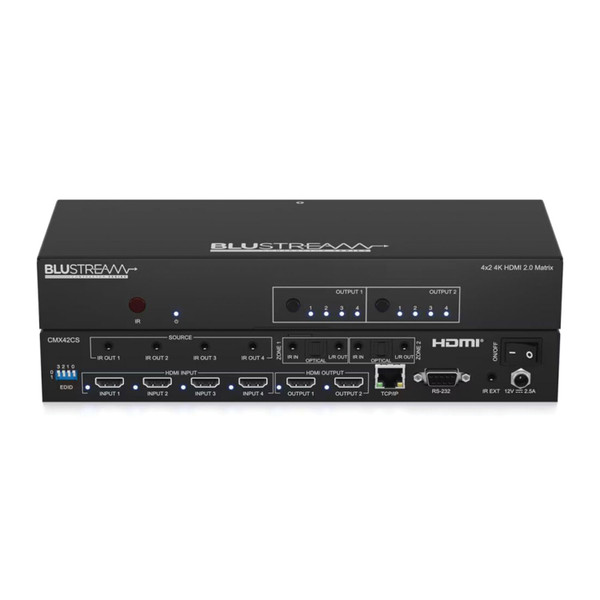

This Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix is a compact yet powerful 4x2 HDMI 2.0 matrix switch engineered for high-performance AV signal routing in demanding custom installation environments.
Delivering premium 4K video support and advanced integration capabilities, it represents unmatched value and flexibility for professional AV installers.
Supporting full HDMI 2.0 with HDCP 2.2 compliance, the CMX42CS enables the reliable distribution of up to four HDMI source devices to two independent HDMI outputs.
All video resolutions up to 4K UHD at 60Hz 4:4:4 (18Gbps) are supported, ensuring full compatibility with the latest UHD and HDR content.
With its robust feature set and installer-centric design, the CMX42CS is an ideal solution for residential AV systems, boardrooms, classrooms, and multi-zone commercial environments requiring reliable 4K video distribution and system control.
Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix Features:
- Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video output
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
- Control via front panel, TCP/IP, IR and RS-232
- IR routing
- Supplied with Blustream 5V IR receivers and emitters
- 3rd Party drivers available for all major control brands
- Advanced EDID management
- HDCP 2.2 support
Why not buy this Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix from HDTV Supply today?
Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix Specifications:
- Dimensions (W x D x H ): 255mm x 104mm x 40mm
- Shipping Weight: 1.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
- Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking
- Audio Output Connectors: 2 x Optical (S/PDIF), 2 x Analogue audio L/R (3.5mm stereo Jack)
- TCP/IP Control: 1x RJ45, female
- RS-232 Serial Port: DB-9, female
- IR Input Ports: 3 x 3.5mm stereo jack
- IR Output Ports: 4 x 3.5mm mono jack
Why not buy this Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix from HDTV Supply today?
Why not buy this Blustream CMX42CS 4x2 4K HDMI 2.0 Matrix from HDTV Supply today?
Q: What is the Blustream CMX42CS 4x2 HDMI Matrix?
A: The Blustream CMX42CS is a 4x2 HDMI matrix switcher that allows four HDMI sources to be distributed to two displays independently or simultaneously.
Q: What resolution does this HDMI matrix support?
A: It supports up to 4K UHD resolution at 60Hz with HDMI 2.0, ensuring high-quality video performance.
Q: Can different sources be shown on each display?
A: Yes, the matrix allows independent switching, so each display can show a different source or the same source if required.
Q: Does the CMX42CS support HDR content?
A: Yes, it supports HDR formats, delivering enhanced contrast and color for a better viewing experience.
Q: What audio features are supported?
A: It supports advanced audio formats and includes audio breakout options for flexible audio integration.
Q: What control options are available?
A: The device can be controlled via front panel buttons, IR remote, and RS-232 for integration with control systems.
Q: Is it suitable for commercial installations?
A: Yes, it is ideal for conference rooms, retail displays, digital signage, and other professional AV setups.
Q: Can it be used in home entertainment systems?
A: Yes, it is also suitable for residential use where multiple HDMI sources need to be distributed to multiple displays.
Q: Is installation easy?
A: Yes, it features a straightforward setup and integrates easily into existing AV systems.
Q: Why buy from HDTV Supply?
A: HDTV Supply offers expert technical support, competitive pricing, fast shipping, and a wide selection of professional AV and HDMI matrix solutions.
