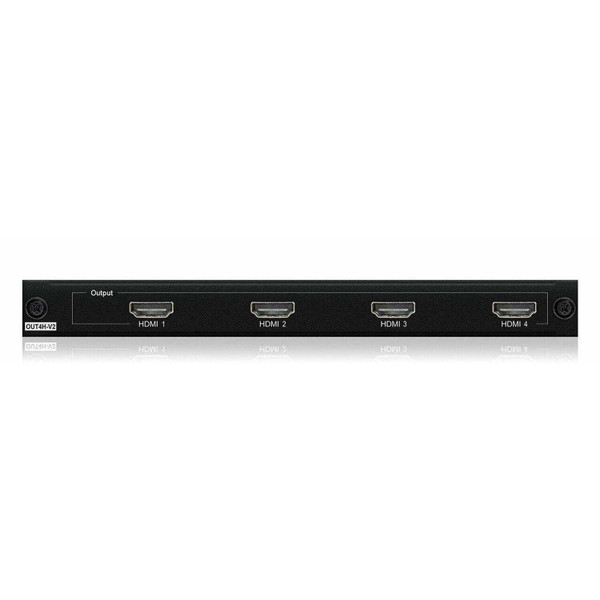

This Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 with HDCP 2.2, allowing distribution of inputs to 4 independent displays.
The PRO-OUT4H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 Features:
- Features 4 x HDMI outputs for connection to HDMI displays
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4*
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
- HDCP 2.2 support
Why not buy this Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 today?
Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 Specifications:
- Video Output Connectors: 4 x HDMI Type A, 19-pin, female
- Card Dimensions (W x H x D): 182mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
- Shipping Weight: 0.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Why not buy this Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 today?
Blustream PRO-OUT4H-V2 User Manual
Blustream PRO-OUT4H-V2 Data Sheet
Blustream PRO-OUT4H-V2 Declaration of Conformity
Blustream PRO-OUT4H-V2 Configuration Guide
Why not buy this Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 today?
Why not buy this Blustream PRO-OUT4H-V2 4 Output HDMI 2.0 Board Supporting 4K 60Hz 4:4:4 today?
How many HDMI outputs does the PRO-OUT4H-V2 provide?
A: It provides four HDMI Type A (19-pin) outputs for connection to displays.
Does this board support HDCP 2.2?
A: Yes. The PRO-OUT4H-V2 includes HDCP 2.2 support.
What video resolution and chroma does the board support?
A: It supports up to 4K UHD at 60Hz with 4:4:4 chroma.
Which HDMI specification and features does this board support?
A: The board supports the HDMI 2.0 18 Gbps specification and includes HDR support.
Can this card be installed in a Custom Pro Matrix hub?
A: Yes. It uses quick-release card module fittings for simple installation into the Custom Pro Matrix hub.
Will this let me send the same source to four independent displays?
A: Yes. The board allows distribution of inputs to four independent displays.
Can it pass HDR and advanced HDMI audio formats?
A: Yes. It supports HDR and transmits HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio.
What are the card dimensions and size with connections?
A: The card measures 182mm x 22mm x 177mm and 202mm x 22mm x 188mm including connections.
What are the operating and storage temperature ranges?
A: Operating temperature is 32°F to 104°F (0°C to 40°C) and storage is -4°F to 140°F (-20°C to 60°C).
What physical connector type do the outputs use?
A: The outputs use HDMI Type A, 19-pin, female connectors.
