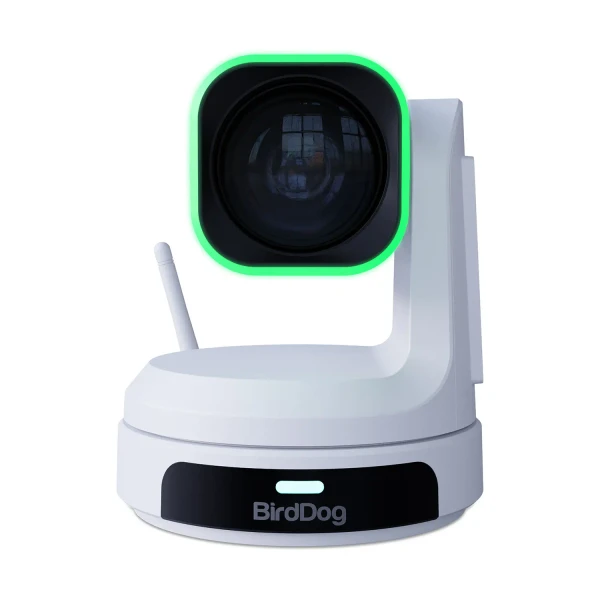

This BirdDog BDX1UW X1 Ultra 4K PTZ Camera with 12x Zoom, White featuring 12x zoom, color matrix, API, and Kelvin control, the X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.
The camera includes an HDMI output and a USB/UVC output with independent resolution settings for direct connection to Microsoft Teams, Zoom, and other compatible applications.
A built-in Halo tally light and a 2.93-inch E-Ink display add to its functionality.
Power over Ethernet (PoE) support allows the camera to receive power through a single Ethernet cable for simplified installation.
Integrated NDI Decoder: The camera features an NDI|HX decoder designed for confidence monitoring, return feeds, and teleprompter use. Its connectivity options support simplified integration with compatible equipment.
AI Tracking: AI tracking intelligently follows subject movements in real time to help maintain framing during live events, hybrid productions, and sports applications.
Wi-Fi Connectivity: Alongside Ethernet with PoE, the camera features built-in Wi-Fi connectivity. This supports installations in locations where running network cables may be difficult.
NDI|HX2 and NDI|HX3 Integration: NDI|HX2 and NDI|HX3 integration provides network video connectivity with reduced network impact and excellent image quality.
Built-In Halo Tally Light: The Halo tally system features a large, daylight-visible border and an interchangeable illuminated numbering system, helping presenters and production crews identify the active camera.
BirdDog BDX1UW X1 Ultra 4K PTZ Camera with 12x Zoom, White Features:
- UHD 4K30 Video: Captures video at resolutions up to UHD 4K30.
- 12x Zoom: Provides flexible subject framing.
- AI Auto Framing: Helps keep subjects in frame during production.
- AI Tracking: Follows subject movements in real time.
- Advanced Image Controls: Includes color matrix, API, and Kelvin control.
- Exceptional Low-Light Performance: Supports capture in low-light environments.
- Wi-Fi 5 Connectivity: Provides wireless connectivity options.
- NDI|HX2 and NDI|HX3 Support: Provides network video connectivity with reduced network impact.
- HDMI and USB/UVC Outputs: Connects to compatible equipment, Microsoft Teams, Zoom, and other applications.
- Independent Output Resolutions: Supports independent resolution settings for HDMI and USB/UVC outputs.
- Integrated NDI|HX Decoder: Supports confidence monitoring, return feeds, and teleprompter use.
- Built-In Halo Tally Light: Features a daylight-visible border and interchangeable illuminated numbering system.
- 2.93-Inch E-Ink Display: Adds camera display functionality.
- Power over Ethernet: Supports power delivery through a single Ethernet cable.
Why not buy this BirdDog BDX1UW X1 Ultra 4K PTZ Camera with 12x Zoom, White today?
BirdDog BDX1UW X1 Ultra 4K PTZ Camera with 12x Zoom, White Specifications
- Imaging
- Image Sensor: 1/2.8"-Type CMOS
- Horizontal Resolution (TV Lines): 2160 TV Lines
- Effective Sensor Resolution: 8.29 Megapixel (3840 x 2160)
- IR Cut Filter: No
- Focus Control:
- Autofocus
- Manual Focus
- Exposure Control
- Shutter Speed: 1/10000 to 1/25 Second
- Signal-to-Noise Ratio: 50 dB
- White Balance:
- Range: 2500 to 9000K
- Presets: Manual, VAR
- Lens
- Focal Length: 4.1 to 49.2mm
- Max Optical Zoom: 12 x
- Field of View:
- Horizontal: 70.28 to 6.57°
- Vertical: 42.06 to 3.76°
- Diagonal: 78.36 to 7.5°
- Maximum Aperture: f/1.8 to 2.68
- Video Capture
- Video Output:
- Via HDMI / RJ45 / USB
- 3840 x 2160 at 25/29.97/30.00 fps
- 1920 x 1080p at 25/29.97/30.00 fps
- 1280 x 720 at 25/29.97/30.00 fps
- Embedded Audio: HDMI/LAN (RJ45)/SDI
- Internal Recording: No
- Broadcast Output: NTSC/PAL
- Video Output:
- Control
- Presets: 255
- Tally Light: Yes
- Networking
- Wireless: Wi-Fi 5 (802.11ac) / IR
- Interface
- Video I/O: 1 x HDMI Output
- Other I/O:
- 1 x USB-C
- 1 x RJ45 (NDI, RS-232) Control
- Built-In Microphone: No
- Built-In Speaker: No
- Power
- PoE Support: Yes: PoE 802.3af
- Power I/O: 1 x RJ45 (12VDC at 2 A) Input
- Power Consumption: 13 W
- Environmental
- Operating Conditions: 14 to 104°F / -10 to 40°C at 20 to 80% Humidity
- General
- Mounting: 1 x 1/4"-20 Female
- Dimensions (W x H x D): 10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm
- Weight: 3.15 lb / 1.43 kg (Body Only)
- Packaging Info
- Package Weight: 5.905 lb
- Box Dimensions (L x W x H): 11.8 x 9.1 x 7"
Why not buy this BirdDog BDX1UW X1 Ultra 4K PTZ Camera with 12x Zoom, White today?
Can this camera receive power over Ethernet (PoE)?
A: Yes — the camera supports PoE 802.3af and its listed power consumption is 13 W.
Does the camera offer a wired network mode plus wireless (Wi‑Fi) connectivity?
A: Yes — it supports wired Ethernet (NDI over RJ45) and built-in Wi‑Fi 5 (802.11ac).
Can I use the camera as a direct USB camera for Microsoft Teams or Zoom?
A: Yes — it provides a USB/UVC output intended for direct connection to Microsoft Teams, Zoom, and similar applications.
Does the camera include NDI features for return feeds or confidence monitoring?
A: Yes — the camera includes an integrated NDI|HX decoder intended for confidence monitoring, return feeds, and teleprompter use.
Will the camera follow a presenter automatically during a live event?
A: Yes — the camera supports AI tracking and AI auto framing to follow subject movements and help keep subjects in frame in real time.
Does the camera record internally or include a built‑in microphone or speaker?
A: No — the camera does not provide internal recording and it does not include a built‑in microphone or speaker.
Is there a visible tally and a front display to help talent and operators identify camera status?
A: Yes — it has a built‑in Halo tally light with an interchangeable numbering system and a 2.93‑inch E‑Ink display on the camera.
Can I run the camera without an Ethernet cable using Wi‑Fi?
A: Yes — you can connect the camera over Wi‑Fi 5 (802.11ac) where running network cable isn't practical, but wired Ethernet and PoE are also supported.
Will the camera work with NDI|HX2 and NDI|HX3 network workflows?
A: Yes — the camera supports NDI|HX2 and NDI|HX3 for network video connectivity with reduced network impact.
Does the camera provide independent output resolution settings for HDMI and USB?
A: Yes — the camera supports independent resolution settings for its HDMI and USB/UVC outputs.
Can I use the camera for low‑light shooting?
A: Yes — the product description states the X1 Ultra offers exceptional low‑light performance.
