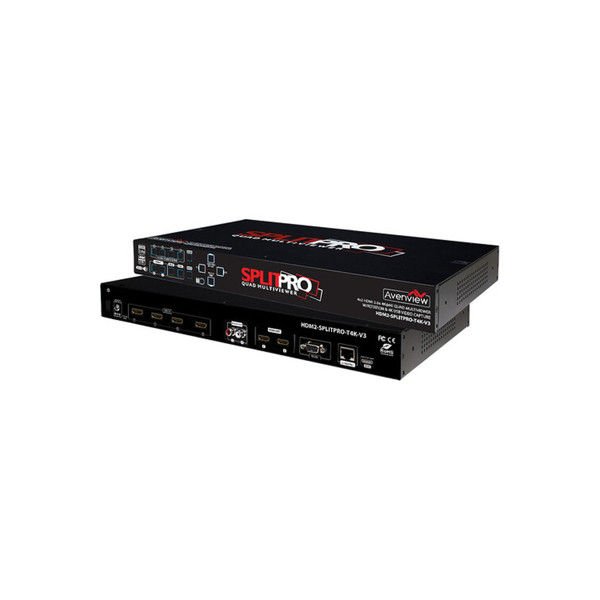

This Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation combines four HDMI sources into flexible multi-window layouts on 4K displays. It supports 4K60 video, independent input rotation, and USB video capture. Multiple control options provide convenient operation for professional AV environments.
The HDM2-SPLITPRO-T4K-V3 accepts four HDMI 2.0 sources and provides two HDMI outputs, with the second output automatically downscaling according to the connected display's EDID. Users can display sources in quad-view, full-screen, PIP, PAP, multi-window, overlay, and customized layouts.
Each input can be cropped, resized, positioned, zoomed, panned, blended, or rotated 90° left or right. Background images and logos are supported, while fade, wipe, and dissolve transitions can be used in full-screen mode.
The built-in USB 3.0/3.1 video capture function can capture video up to 4K2K@30 for compatible computers. Control is available through the front panel, IR remote, RS-232, Ethernet, and supported cloud control functions.
Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation Features:
- Four HDMI 2.0 4K Inputs
- Two HDMI 2.0 4K Outputs
- 4K60 4:4:4 Video Support
- Up to 18 Gbps HDMI Bandwidth
- Built-In USB Video Capture
- USB Capture Up to 4K2K@30
- Quad-View and Full-Screen Modes
- PIP, PAP, and Multi-Window Layouts
- Individual Input Cropping
- Individual Input 90° Left or Right Rotation
- Resize, Position, Zoom, Pan, and Blend Functions
- Background Picture and Logo Support
- Fade, Wipe, and Dissolve Transitions
- Eight Preset Control Software Hotkeys
- Four Custom Layouts and Four Full-Screen Layouts
- Four Custom IR Remote Presets
- Uncompressed 7.1-Channel Digital Audio
- RS-232 and Ethernet Control
- IR Remote and Front-Panel Control
- Factory Reset Function
Why not buy this Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation from HDTV Supply today?
Ask a Question (0):
There are no questions for this product, click the button below to ask one.
Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation Specifications:
| Specification | Details |
|---|---|
| Model | HDM2-SPLITPRO-T4K-V3 |
| Product Type | HDMI 2.0a 4x2 Quad Multiviewer with Rotation and USB Video Capture |
| HDMI Compliance | HDMI 2.0a |
| HDCP Compliance | HDCP 1.4 / 2.2 |
| Video Bandwidth | 600 MHz / 18 Gbps |
| Video Format | HDMI 2.0 |
| HDMI Inputs | 4 x HDMI 2.0 Female |
| HDMI Outputs | 2 x HDMI 2.0 Female |
| HDMI Input Resolution | Up to 3840 x 2160@60 Hz, 4K2K@60 4:4:4 8-bit; 1920 x 1200@60; 1080p 24/25/30/50/60; 720p 60 and other supported formats |
| HDMI Output Resolution | Up to 3840 x 2160@60 Hz, 4K2K@60 4:4:4 8-bit; 1920 x 1200@60; 1080p 24/25/30/50/60; 720p 60 and other supported formats |
| USB Video Capture | Up to 4K2K@30 |
| USB 3.0/3.1 Video Format | RGB, YUY2, NV12 |
| USB 2.0 Video Format | YUY2, NV12; capture up to 720p@30 |
| USB Connector | USB-C |
| Audio Support | LPCM 2CH, 6CH, 8CH; AC3; DTS; Dolby Digital Plus; Dolby TrueHD; DTS-HD |
| HDMI Audio | Uncompressed 7.1-channel digital audio |
| Audio Output | 2 x RCA stereo audio breakout |
| IR Input | 1 x 3.5 mm |
| RS-232 | 1 x DB-9 for control and service |
| Ethernet | 1 x RJ45 for IP Control |
| Control Methods | Front Panel, IR Remote, RS-232, Ethernet/IP, Supported Cloud Control |
| Multiview Modes | Quad View, Full Screen, PIP, PAP, Multi-Window, Overlay |
| Input Rotation | 90° Left and Right |
| EDID | Supported |
| HDR Support | No |
| Power Supply | 12 VDC / 5 A |
| Power Consumption | 22 W maximum |
| Dimensions (L x W x H) | 440 x 237 x 44 mm (17.3 x 9.3 x 1.7 in) |
| Unit Weight | 2.3 kg (5 lbs) |
| Package Weight | 3.5 kg (7.8 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 20% to 90% RH, non-condensing |
| ESD Protection | ±15 kV air-gap / ±8 kV contact discharge |
| Certifications | CE, FCC, UL, RoHS |
| Included Accessories | HDM2-SPLITPRO-T4K-V3 Unit, 12V/5A Power Supply, IR Remote, 2 Rackmount Brackets, User Manual, Software CD |
| UPC | 606825937530 |
Why not buy this Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation from HDTV Supply today?
Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation Manuals:
What is the Avenview HDM2-SPLITPRO-T4K-V3?
A: The HDM2-SPLITPRO-T4K-V3 is a 4x2 HDMI 2.0a quad multiviewer with 4K video support, image rotation, and built-in USB video capture.
How many HDMI inputs does the HDM2-SPLITPRO-T4K-V3 have?
A: It has four HDMI 2.0 inputs for connecting compatible video sources.
How many HDMI outputs does the HDM2-SPLITPRO-T4K-V3 have?
A: It has two HDMI 2.0 outputs. HDMI Output 2 automatically downscales according to the EDID of the connected display.
Does the HDM2-SPLITPRO-T4K-V3 support 4K60?
A: Yes. It supports output resolutions up to 3840 x 2160 at 60 Hz, including 4K2K@60 4:4:4 8-bit.
Can the HDM2-SPLITPRO-T4K-V3 display multiple HDMI sources at once?
A: Yes. It supports quad-view, PIP, PAP, multi-window, overlay, and full-screen layouts.
Can individual inputs be rotated?
A: Yes. Individual HDMI input windows can be rotated 90° left or right.
Does the HDM2-SPLITPRO-T4K-V3 support video capture?
A: Yes. Its built-in USB video capture can capture compatible video up to 4K2K@30.
What type of USB connection does the HDM2-SPLITPRO-T4K-V3 use?
A: The unit provides a USB-C connection for video capture and firmware update functions.
Does the HDM2-SPLITPRO-T4K-V3 support audio?
A: Yes. It supports uncompressed 7.1-channel digital audio over HDMI and provides RCA audio breakout outputs.
How can the HDM2-SPLITPRO-T4K-V3 be controlled?
A: The unit can be controlled through the front panel, IR remote, RS-232, Ethernet/IP, and supported software or cloud-control functions.
What is the maximum video resolution of the Avenview HDM2-SPLITPRO-T4K-V3?
A: The HDM2-SPLITPRO-T4K-V3 supports output video up to 3840 x 2160 at 60 Hz, including 4K2K@60 with 4:4:4 8-bit color.
Can the Avenview HDM2-SPLITPRO-T4K-V3 capture 4K video to a computer?
A: Yes. Its USB video capture function supports capture up to 4K2K@30 using compatible USB 3.0/3.1 operation.
Can the Avenview HDM2-SPLITPRO-T4K-V3 crop and resize video windows?
A: Yes. The multiviewer supports cropping, resizing, positioning, zooming, panning, and blending of input windows.
Does the Avenview HDM2-SPLITPRO-T4K-V3 support HDCP?
A: Yes. The unit is compliant with HDCP 1.4 and HDCP 2.2.
What is included with the Avenview HDM2-SPLITPRO-T4K-V3?
A: The package includes the HDM2-SPLITPRO-T4K-V3 unit, 12V/5A power supply, IR remote, two rackmount brackets, user manual, and software CD.
Why not buy this Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation from HDTV Supply today?
Avenview HDM2-SPLITPRO-T4K-V3 4x2 HDMI 4K Quad Multiviewer V3 with Rotation Warranty:
The Avenview HDM2-SPLITPRO-T4K-V3 is covered by Avenview's 3-year limited warranty from the date of original retail purchase. Product registration at the time of purchase and proof of purchase are required to obtain warranty service under the published warranty terms.
