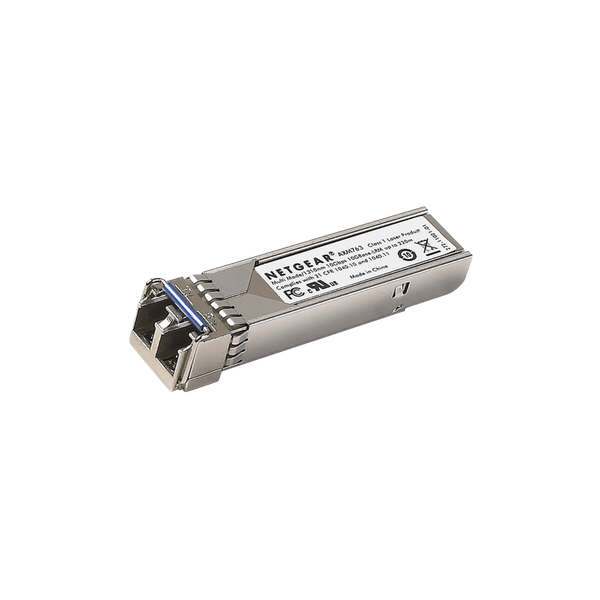

This Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches is a 10GBASE-LRM SFP+ transceiver module built for high-speed Ethernet and AV-over-IP applications requiring multimode fiber connectivity.
Supporting 10 Gbps transmission over 62.5/125 µm or 50/125 µm MMF with LC duplex connectors, it extends data links up to 220 meters while maintaining exceptional signal integrity.
Fully hot-swappable and compliant with SFP+ MSA standards, the AXM763 is ideal for enterprise, broadcast, and commercial AV environments needing reliable fiber-based uplinks between switches and networked devices.
These are NETGEAR SFP+ (small form factor pluggable) fiber optic transceiver modules for NETGEAR M4250 managed Gigabit Ethernet network switches.
They fit into the SFP+ interfaces of these switches and enable 10 Gigabit Ethernet links between NETGEAR M4250 switches to expand networked AV system capacity.
These modules can also be used to extend network connections over long distances up to 550 meters (1,800 feet) with multi mode fiber, and up to 2 km (1.2 mi) with single mode fiber.
Atlona is offering these SFP+ modules as accessories to the NETGEAR M4250 switches for customers wanting to build large OmniStream AV over IP systems spanning several network switches.
NOTE: NETGEAR SFP+ modules are available only in the United States and Canada.
Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches Feature:
- SFP+ fiber optic transceiver modules for NETGEAR M4250 network switches
- Enables 10 Gigabit Ethernet links for aggregating M4250 switches to expand networked AV system capacity
- Also can be used to transmit 10 Gigabit Ethernet long distances over fiber optic cable
- Up to 550 m (1800 ft) over multi mode fiber
- Up to 2 km (1.2 mi) over single mode fiber
- Fits into SFP+ interfaces of M4250 switches (except NETGEAR-GSM4212P)
- LC duplex connector
- Hot-swappable installation and removal
Why not buy this Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches from HDTV Supply today?
Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches Specifications:
- Ports
- Panel: IEEE 802.3aq 10GBase-LRM
- Wavelength: 1310 nm
- Max. Operating Distance:
- 62.5/125 μm multi-mode fiber (OM1): 722 ft
- 50/125 μm multi-mode fiber (OM2): 220 ft
- 50/125 μm multi-mode fiber 'laser optimized' (OM2): 722 ft
- Connectors
- Type: 1 x LC
- Power
- Consumption: < 1.5 W
- MTBF: 966,837 hours (110 years)
- Environmental Fahrenheit
- Operating Temperature: +23° to +158°
- Storage Temperature: -40° to +185°
- Operating Humidity (RH): 85% (at +25° C), non-condensing
- Dimensions (H x W x D) Inches
- Unit: 0.46 x 0.53 x 2.19
- Weight Pounds
- Unit: 0.04 / 0.018 kg
- Certification
- Device: UL 1950, CSA 22.2 No. 950, RoHS
Why not buy this Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches from HDTV Supply today?
Atlona NETGEAR-AXM763 User Manual
Why not buy this Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Modules for NETGEAR M4250 Switches from HDTV Supply today?
What is the Atlona NETGEAR-AXM763 SFP+ Fiber Optic Transceiver Module?
A: It is an SFP+ optical transceiver for compatible NETGEAR M4250 switches, providing a 10 Gigabit Ethernet fiber link.
It is intended for AV-over-IP, enterprise, and switch-aggregation links where fiber is preferred for distance, bandwidth, or electrical isolation.
What speed does it support?
A: The module supports 10 Gigabit Ethernet through an SFP+ interface.
10GbE provides high-speed aggregation capacity for multiple networked AV streams and switch-to-switch connections.
What fiber type is required?
A: This model is designed for multimode fiber using its specified optical design.
The fiber plant must match the module type because wavelength, modal behavior, and optical budget determine compatibility.
What is its maximum distance?
A: The specified reach is up to 220 meters for the intended fiber configuration.
Actual reach depends on fiber quality, connector condition, optical loss, and a compatible transceiver at the other end.
What wavelength does it use?
A: The optical design operates around multimode for the specified transmission mode.
Matching wavelength and fiber characteristics at both ends is essential for a stable optical Ethernet link.
Does it use LC duplex?
A: Yes, the module uses an LC duplex fiber connector.
The duplex connector provides separate transmit and receive paths and requires correct fiber polarity and clean connectors.
Is it hot-swappable?
A: Yes, the SFP+ module is designed for hot-swappable installation in compatible switch ports.
This makes maintenance and optical-link changes easier without replacing the network switch itself.
Is it suitable for AV-over-IP?
A: Yes, it is intended to expand high-speed optical connectivity between compatible M4250 switches in AV-over-IP systems.
Fiber uplinks can aggregate multiple AV streams and connect switches across longer physical paths.
Which switches use it?
A: It is designed as an accessory for compatible NETGEAR M4250 managed switches with SFP+ interfaces.
Always verify the exact switch and transceiver compatibility before installation and match optics at both ends.
What should installers check?
A: Installers should verify SFP+ port compatibility, fiber type, polarity, connector cleanliness, optical budget, and distance.
Following these checks helps prevent link loss and ensures the 10GbE optical connection operates within specification.
