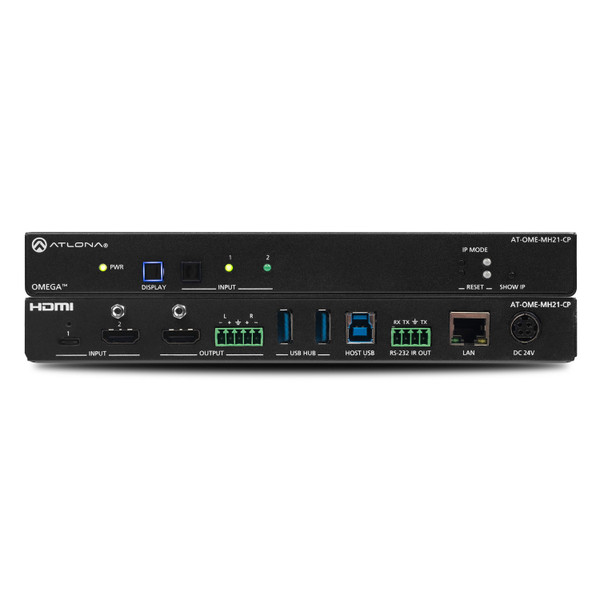

This Atlona AT-OME-MH21-CP Two-Input Switcher With USB-C & HDMI Inputs is a compact, versatile switcher with USB-C and HDMI inputs. It is equipped with features for complete AV integration in huddle rooms and small meeting spaces, including automatic switching and display control, audio de-embedding, and a USB 3.0 hub for video conferencing peripherals or touch displays. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-MH21-CP is HDCP 2.2 compliant and supports 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps.
Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available when connected to an HD display. The OME-MH21-CP includes USB 3.0 and USB-C interfaces for two host PCs, plus two peripheral devices such as a camera, microphone, speakerphone, touch-enabled display, or keyboard and mouse. The USB-C port provides up to 60 watts of device charging capability for laptops and mobile devices.
Atlona AT-OME-MH21-CP Two-Input Switcher With USB-C & HDMI Inputs Feature:
- Two-input AV switcher with USB-C and HDMI inputs
- No need to provide an adapter for USB-C to HDMI video
- USB-C input for AV, USB data, and device charging (up to 60 watts)
- Provides compatibility with laptops and tablets with USB-C ports supporting AV output
- Allows clutter-free, single cable connectivity to a PC for video conferencing and collaboration
- Integrated USB 3.0 hub
- USB type B interface for connection to a host PC, plus two USB type A ports for a peripheral device such as a microphone, speakerphone, camera, or touch display
- USB-C input is also available for data connection to a host PC
- Provides an ideal USB integration solution for software video conferencing and other applications
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
- Compatible with 4K HDR10 @ 60 Hz and Dolby Vision™ @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
- HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between authenticated devices
- Selectable 4K to 1080p downscaling
- Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p
- Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
- Ideal for applications with 1080p displays
- Automatic display control
- Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, IR, or CEC.
- Embedded, comprehensive selection of display drivers from the Velocity™ System driver database
- Enables display and volume control. CEC enables control of consumer displays (as supported by the display manufacturer).
- Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
- Enables effortless, automated system operation without the need for an external control system
- Automatic input selection using hot plug detect and video detection technology
- Selects active input when sources are connected or if there is a change in source power status
- Enables simplified, automatic system operation without user intervention
- Audio de-embedding
- De-embeds two channel PCM audio and delivers to a balanced, analog audio output*
- Provides direct interfacing into an external audio system
- * Mute control is available for analog audio output (but not volume control).
- Multi-channel audio compliant
- Passes through multi-channel audio formats from the HDMI or USB-C inputs
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
- EDID management
- Manages EDID communications with the source through a display’s EDID or internally stored EDID
- Ensures desired audio formats and video resolutions are provided to the AV system
- HDCP management
- Automatically reports HDCP compliance status to the source based on the sink device
- HDCP compliance can be disengaged through Velocity or other control system
- Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
- Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
- Intuitive GUI-based configuration using integrated web server
- Offers menu-based configuration of device settings including network access, input switching, signal processing, display control, HDCP and EDID management, and more
- Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
- TCP/IP and RS-232 control
- Flexible control options for compatibility with the Atlona Velocity™ control system, as well as other third-party control systems
- Reduces integration time and costs
- Easy to configure and manage with Velocity Device Manager
- Centralized, network-based configuration and management of Atlona IP-controllable products and systems
- Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
- Available as a part of Velocity control systems or as a free virtual machine software download
- Field-updatable firmware
- Device can be updated in the field via the web GUI or Velocity Device Manager
- Front panel power and signal status LEDs
- LED indicators provide power and input selection status information
- Low-profile, 1.02 inch (26 mm) high enclosure
- Easy installation into confined spaces below tables and in furniture
- Included accessories
- Installation guide, surface mounting hardware, 2 meter (6.5 foot) USB-C male-to-male cable (USB 3.2 Gen 1), and external universal power supply
Why not buy this Atlona AT-OME-MH21-CP Two-Input Switcher With USB-C & HDMI Inputs from HDTV Supply today?
Atlona AT-OME-MH21-CP Two-Input Switcher With USB-C & HDMI Inputs Specifications:
- Video
- Signal
- Input – HDMI, USB-C
- Output – HDMI
- Copy Protection HDCP 2.2
- Pixel Clock 600 MHz
- UHD/HD/SD
- 4096×2160@60/50/30/25/24 Hz
- 3840×2160@60/50/30/25/24 Hz
- 1920x1080p@60/59.9/50/30/29.97/25/24/23.98 Hz
- 1920x1080i@30/29.97/25 Hz
- 1280x720p@60/59.94/50 Hz
- 720x576p@50 Hz
- 720x576i@50 Hz
- 640x480p@60/59.96 Hz
- 640x480i@30 Hz
- VESA (All resolutions are 60 Hz)
- 2560×1600
- 2048×1536
- 1920×1200
- 1680×1050
- 1600×1200
- 1440×900
- 1400×1050
- 1280×1024
- 1280×800
- 1366×768
- 1360×768
- 1152×864
- 1024×768
- 800×600
- 640×480
- VESA 21:9
- 5120×2160 @ 30 Hz 4:4:4
- 3840×1600 @ 60 Hz 4:4:4
- 3840×1600 @ 30 Hz 4:4:4
- 3440×1440 @ 60 Hz 4:4:4
- 3440×1440 @ 50 Hz 4:4:4
- 3440×1440 @ 30 Hz 4:4:4
- 2560×1080 @ 60 Hz 4:4:4
- 2560×1080 @ 30 Hz 4:4:4
- Scaler(1)
- IN: 4K@24 Hz, 4K@30 Hz, 4K@60 Hz
- OUT: 1080p@24 Hz, 1080p@30 Hz, 1080p@60 Hz
- USB-C Up to 4K/UHD @ 60 Hz
- Color Space YUV, RGB
- Chroma Subsampling 4:4:4, 4:2:2, 4:2:0(2)
- Color Depth 8-bit, 10-bit, 12-bit
- HDR HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @ 60 Hz
- Signal
- Audio
- HDMI Pass-Through Formats
- PCM 2.0
- LPCM 5.1
- LPCM 7.1
- Dolby® Digital
- Dolby Digital Plus™
- Dolby TrueHD
- DTS® Digital Surround™
- DTS-HD Master Audio™
- Bit Rate 24 Mbits/s max
- Analog Audio
- Format 2-channel stereo
- Balanced Output +4 dBu, nominal gain; +20 dBu headroom
- Frequency Response 20 Hz to 20 kHz, ±0.5 dB
- Impedance 150 Ω
- Stereo channel separation > 90 dB
- THD + N < 0.004% @ 20 Hz to 20 kHz
- SNR > 94 dB @ 1 kHz, zero clipping @ 0 dBFS, unweighted
- HDMI Pass-Through Formats
- USB
- Compliance 3.0
- Maximum Data Rate 5 Gbps(3)
- USB-C Supports audio, video, device and host data, and up to 60 W power charging
- Internal Hubs 1 USB hub (when connected to USB-C or USB type B host port)
- Ethernet
- Port 1 x RJ45
- Standards and Protocols HTTP, HTTPS, Telnet, SSH, mDNS
- Speeds 10/100 Mbps
- Addressing DHCP, Static – selectable through front panel, IP, RS-232 commands, and built-in web server
- RS-232
- Port 1 x 4-pin captive screw; TX, RX, GND
- Use Device control and configuration
- Baud Rates 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Data flow Bidirectional
- IR
- Port 1 x 4-pin captive screw; TX, GND
- Use Pass-through control
- Frequency Range 30 kHz to 60 kHz
- CEC
- Port 1 x HDMI OUTPUT, Type A, 19-pin female
- Triggering Through IP, RS-232, and built-in web server
- Resolution / Distance
- HDMI IN/OUT – 4K/UHD: 15 Feet / 5 Meters | 1080p: 30 Feet / 10 Meters
- USB-C(3) – 6.6 Feet / 2 Meters (4K/UHD and 1080p)
- Buttons and Indicators
- Buttons
- DISPLAY, INPUT – 2 momentary, tact-type
- IP MODE, RESET – 2 momentary, tact-type
- Indicators
- PWR, INPUT – 3 LED, green
- IP MODE, RESET – 2 LED, green
- Buttons
- Connectors
- HDMI IN – 1 Type A, 19-pin female
- USB-C IN – 1 USB Type-C v3.1, 24-pin female, AV input (Alternate Mode)
- HDMI OUT – 1 Type A, 19-pin female
- USB HUB – 2 Type A, 4-pin female
- USB HOST – 1 Type B, female
- AUDIO OUT – 1 5-pin captive screw, balanced / unbalanced 2-channel
- RS-232 / IR OUT – 1 4-pin captive screw (bidirectional)
- LAN – 1 RJ45, 100Base-T
- PWR – 1 4-pin mini-DIN
- Environmental
- Operating Temperature +32 to +122 Fahrenheit | 0 to +50 Celsius
- Storage Temperature -4 to +140 Fahrenheit | -20 to +60 Celsius
- Operating Humidity (RH) 20% to 90%, non-condensing
- Maximum Operating Altitude 2000 meters
- Power
- Consumption Unit only: 6.0 W
- Full load: 90.4 W (while powering USB-C devices up to 60 W and USB Type A devices up to 9 W total across all ports)
- External Power Supply 100 – 240 V AC, 50/60 Hz
- Output: 24 V / 5 A DC
- Dimensions (H x W x D)
- Unit 1.02 x 8.62 x 5.98 Inches | 26 x 219 x 152 Millimeters
- Power Supply (AT-PS-245-D4) 1.59 x 2.63 x 6.17 Inches | 41 x 67 x 157 Millimeters
- Weight
- Device 2.15 Pounds | 0.975 Kilograms
- Certification
- Device CE, FCC, CB
- Power Supply CE, FCC, UL, CB
- Compliance
- NDAA-899 – Yes
