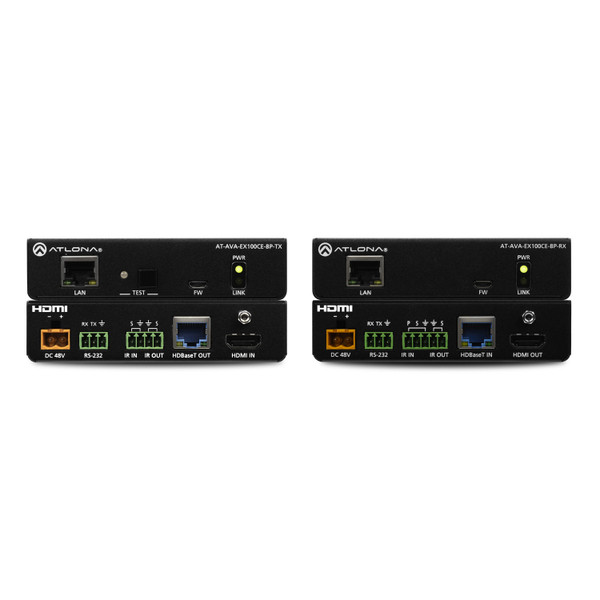

This Atlona AT-AVA-EX100CE-BP-KIT Avance 4K/UHD Extender Kit With Ethernet, Control supports Ethernet, control pass-through, and bidirectional remote power capabilities. The kit transmits 4K/UHD 60 Hz 4:2:0 video up to 330 feet (100 meters). In addition to video with embedded multi-channel audio, 100Base-T Ethernet data, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single Category 6/6A cable.
Atlona AT-AVA-EX100CE-BP-KIT Avance 4K/UHD Extender Kit With Ethernet, Control Features:
- Extends 4K/UHD 60 Hz 4:2:0 up to 100 meters (330 feet) with Category 6/6A.
- Extends bidirectional Ethernet data as well as RS-232 and IR control signals over HDBaseT.
- Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT.
- Audio Return Channel (ARC) minimizes cabling in audio return applications.
- EDID filtering prevents extension of unsupported resolutions.
- Clock stretching provides stable connections with problematic HDMI sources.
- Integrated HDBaseT link test verifies cable and link quality.
- Compliant with HDCP 2.2.
- Front panel Power and Link status LEDs.
- Front panel USB port for firmware updates.
- Multi-channel audio compliant for PCM, Dolby®, and DTS® formats.
- Compact enclosures with included mounting brackets.
- Rack mounting available with optional AT-RACK-1RU-ME.
- Kit includes transmitter, receiver, power supply, IR emitter, mounting brackets, and installation guide.
Why not buy this Atlona AT-AVA-EX100CE-BP-KIT Avance 4K/UHD Extender Kit With Ethernet, Control from HDTV Supply today?
Atlona AT-AVA-EX100CE-BP-KIT Avance 4K/UHD Extender Kit With Ethernet, Control Specifications:
- Video
- Signal: HDMI with ARC
- Copy Protection: HDCP 1.4 / 2.2
- Pixel Clock: 300MHz
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- UHD/HD/SD Resolutions:
- 4096×2160@60/50/30/25/24Hz
- 3840×2160@60/50/30/25/24Hz
- 1080p, 1080i, 720p, 576p/i, 480p/i
- VESA Resolutions: Up to 2560×1600 and 3440×1440
- Audio
- Pass-Through Formats: PCM 2.0, LPCM 5.1/7.1
- Dolby®: Digital, Digital Plus™, TrueHD, Atmos®
- DTS®: DTS Digital Surround™, DTS-HD Master Audio™, DTS:X®
- Bit Depth: Up to 24-bit
- Sample Rate: 32 kHz to 192 kHz
- Resolution / Distance
- CAT5e: Up to 295 ft (90m) at 4K, 330 ft (100m) at 1080p
- CAT6/6a/7: Up to 330 ft (100m) at 4K and 1080p
- Control
- RS-232: Pass through, up to 115200 baud
- IR: Pass through, 30kHz to 60kHz
- IP: Pass through
- CEC: Pass through
- Buttons and Indicators
- TEST button (momentary)
- Power indicator LED
- Link indicator LED
- Test indicator LED (green, yellow, multi-colored)
- Connectors
- HDMI IN (TX): 1 – Type A, 19-pin female
- HDBaseT OUT (TX): 1 – RJ45 female
- HDMI OUT (RX): 1 – Type A, 19-pin female
- HDBaseT IN (RX): 1 – RJ45 female
- Firmware: 1 – Micro-A USB
- Power: 2-pin 48V captive screw connector
- Ethernet: 1 port
- RS-232: 3-pin captive screw connector
- IR: 4-pin (TX), 5-pin (RX) captive screw connectors
- Temperature
- Operating: 32 to 122°F (0 to 50°C)
- Storage: -4 to 140°F (-20 to 60°C)
- Humidity: 20% to 60%, non-condensing
- Power
- Consumption (Kit): 13.55W
- BTU/h: 46.21
- Supply: AC 100~240V, 50/60Hz
- Output: DC 48V / 0.83A
- Dimensions
- Unit: 1.02 x 4.29 x 5.20 in (26 x 109 x 132 mm)
- Power Supply: 1.42 x 1.81 x 4.41 in (36 x 46 x 112 mm)
- Weight
- TX: 0.80 lb (0.36 kg)
- RX: 0.80 lb (0.36 kg)
- Certification
- Device: CE, FCC
- Power Supply: CE, FCC, cULus, RoHS
- Compliance
- NDAA-889: Yes
- TAA: Yes
