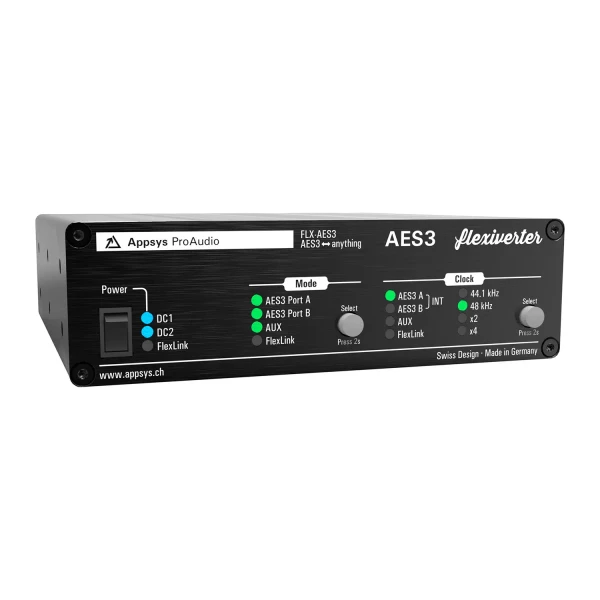

Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU

Appsys

$999.00
Part Number:
Appsys-FLX-AES3
Condition:
New
Availability:
In Stock
1:
Universal Connectivity
2:
AUX Port Accepting Any AUX Card
3:
DB-25 Connector Pinout
4:
FlexLink Port for Lowest Latency
5:
Appsys ProAudio Factory Warranty
6:
Free USA Insured Shipping
7:
Ships with the Latest Firmware
8:
Save 5% w/Check or Wire Transfer
9:
International Shipping - Call

This Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU is a compact AES3-to-anything converter.

It has 16 x 16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot.

For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port.

This makes it possible to use it as extension to the MVR-64 or another Flexiverter.

READ MORE

Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU Features:

  • Universal Connectivity
  • AUX Port Accepting Any AUX Card
  • DB-25 Connector Pinout
  • FlexLink Port for Lowest Latency

Why not buy this Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU form HDTV Supply today?

Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU Specifications:

  • General
    • Form Factor: Rackmount (Rack-Mountable with Optional Hardware)
    • Converter Type: Format Converter
    • Number of Channels:
      • 16 (at 48 kHz)
      • 16 (at 96 kHz)
      • 16 (at 192 kHz)
    • Display: LED
    • Maximum Sampling Rate: 192 kHz / 24-Bit
    • Number of Microphone Inputs: No
  • Connectivity
    • Analog Audio I/O: No
    • Phantom Power: No
    • Digital Audio I/O: 2 x DB-25 AES3 In & Out (Dual-Wire or Single-Wire Support)
    • Host Connection / USB: No
    • Host Connection Protocol: No
    • USB (Non-Host): 1 x USB-B (Update)
    • Sync I/O: No
    • Network I/O: No
    • MIDI I/O: No
    • Expansion Slots: 1 x Digital I/O Slot
    • Other I/O: 1 x HDMI Expansion Output (on Included Breakout Cable)
    • Wireless: No
  • Digital Audio
    • Sample Rates: 44.1 to 192 kHz
    • Sample Rate Conversion: No
    • Bit Depths: 24-Bit
    • Latency:
      • D/A Conversion: < 4 Samples at 44.1/48/88.2/96/176.4/192 kHz
    • Sync Sources: No
    • Clocking:
      • Internal:
      • Accuracy: ±25 ppm
      • Jitter: < 1 ps RMS
  • Compatibility
    • OS Compatibility: No
    • Mobile Device Compatibility: No
  • Power
    • Power Requirements: AC/DC Power Adapter (Included), Battery
    • DC Input Power: 12 to 15 VDC
    • Power Consumption: 9 W
  • Physical
    • Rackmount Size: 1 U (with Non-Included Hardware)
    • Storage Conditions: -40 to 185°F / -40 to 85°C
    • Dimensions: 6.4 x 6 x 1.7" / 163 x 153 x 44 mm
    • Weight: 19.8 oz / 560.0 g
  • Packaging Info
    • Package Weight: 2.845 lb
    • Box Dimensions (LxWxH): 13.6 x 10.5 x 3.8"

Why not buy this Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU form HDTV Supply today?

Can I install any AUX card in the FLX-AES3's AUX port?

A: Yes — the FLX-AES3 accepts any AUX card installed into its AUX port, letting you convert the built-in AES3 channels to the protocol provided by that AUX card.

Will the FlexLink port carry the built-in AES3 channels plus whatever the AUX card provides?

A: Yes — the FlexLink port makes the built-in channels and the AUX card’s channels available for extension or integration with other Flexiverter devices.

Does the FLX-AES3 support single-wire and dual-wire AES3 on its DB‑25 I/O?

A: Yes — the two DB-25 AES3 In & Out connections support dual-wire or single-wire AES3.

If source and destination sample rates differ, will the FLX-AES3 perform sample-rate conversion?

A: No — the FLX-AES3 does not perform sample-rate conversion, so source and destination sample rates must match or be handled elsewhere.

What latency should I plan for when converting D-to-A on this unit?

A: D/A conversion latency is under 4 samples at the listed sample rates, so expect sub-sample-frame latency measured in fewer than 4 audio samples.

What clocking accuracy and jitter are specified for the FLX-AES3's internal clock?

A: The internal clock accuracy is specified at ±25 ppm and jitter is listed as under 1 ps RMS.

Is there a way to update firmware or software on the FLX-AES3?

A: Yes — the unit includes a USB-B port intended for updates.

Does the FLX-AES3 provide any HDMI output or breakout for expansion?

A: Yes — an HDMI expansion output is available via an included breakout cable.

Can the FLX-AES3 be installed in a rack?

A: Yes — the unit is rackmountable (1 U) using optional mounting hardware.

Will this work as an extension to an MVR-64 or other Flexiverter?

A: Yes — the FlexLink port is specifically noted as making the unit usable as an extension to the MVR-64 or another Flexiverter.

Do I need extra hardware to rackmount the FLX-AES3?

A: Yes — the device is 1 U rackmountable but requires optional (non-included) rackmount hardware.

Can I rely on the FLX-AES3 for high-resolution audio up to 192 kHz?

A: Yes — the unit supports sample rates up to 192 kHz and 24-bit audio, but it does not perform sample-rate conversion.

Is the FLX-AES3 suitable where very low jitter is required?

A: Yes — the internal clock jitter is specified at under 1 ps RMS, which is a low-jitter figure for digital audio clocking.

Why not buy this Appsys ProAudio FLX-AES3 16 x 16 Channel Format Converter for AES/EBU from HDTV Supply today?
