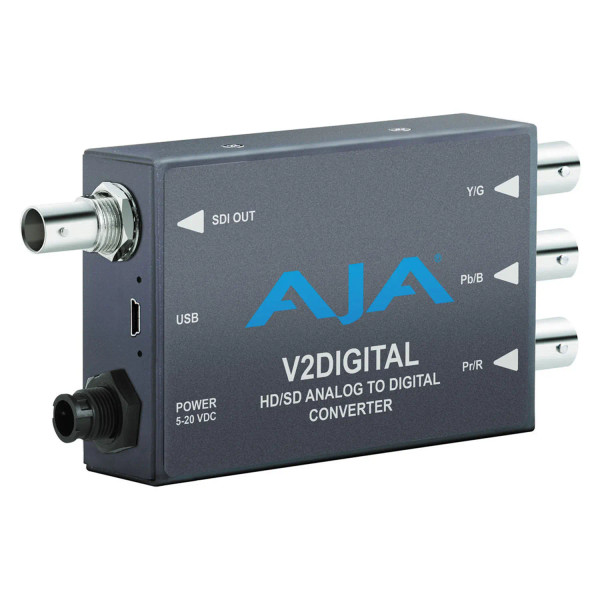

This AJA V2Digital Analog to HD/SD-SDI Mini-Converter is a high-quality, cost-effective analog to digital video converter that’s perfect for facilities needing to integrate signal types.
V2Digital provides AJA’s high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price.
V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources.
Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.
AJA V2Digital Analog to HD/SD-SDI Mini-Converter Features:
- 10-bit AJA quality analog to digital conversion
- Low power, compact size
- YPbPr/RGB component or composite input
- HD/SD-SDI output
- Configure via DIP switch or USB port and supplied Mini-Config software
- Five year warranty
Why not buy this AJA V2Digital Analog to HD/SD-SDI Mini-Converter from HDTV Supply today?
AJA V2Digital Analog to HD/SD-SDI Mini-Converter Specifications:
- Video Formats
- (HD) 1080i 50, 59.94, 60
- (HD) 1080PsF 23.98, 24, 25
- (HD) 720p 50, 59.94, 60
- (SD) 625i
- (SD) 525i
- Video Inputs
- HD component YPbPr, RGB (SMPTE-274), 1x BNC
- SD component (Betacam, EBU-N10)/composite/YC(S-Video), 1x BNC
- Video Output
- HD/SD-SDI, SMPTE-259/292/296M, 1 x BNC
- User Controls
- External Dipswitch
- Control (Local/Remote)
- Component/Composite (SD Only)
- Format (YPbPr/YC or RGB)
- Pedestal Present (on/off) (SD Only)
- Size (w x d x h)
- 5.1” × 2.4” × 1.0” (129.54 × 60.96 × 25.4 mm)
- Power
- +5-20 VDC, 3 watts
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
