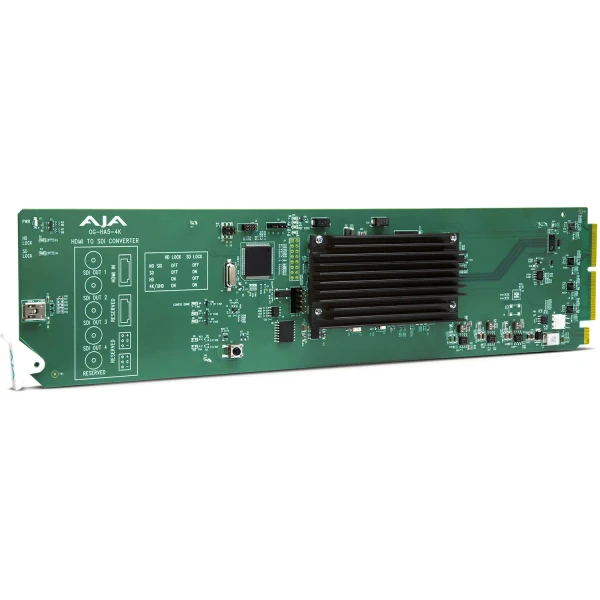

This AJA OG-HA5-4K openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion featuring four 3G-SDI outputs, the openGear compatible OG-HA5-4K enables high quality conversion of HDMI 2.0 video to 4K/UltraHD 3G-SDI for use in professional workflows.
OG-HA5-4K is also capable of displaying HDR Infoframe data coming in over HDMI when used with DashBoard software.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA OG-HA5-4K openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion Features:
- openGear compatible card
- Convert HDMI 2.0 to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
- Supports Two Sample Interleave (2SI) and Square Division (Quadrant) output pixel mapping
- EDID Emulation
- Displays HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
- HDR Metadata VPID Pass-through and optional override
- Simple Frame Rate Conversion (FRC)
- Embedded audio support 8-channel 24-bit
- Embedded audio pass-through of AC-3 (Dolby Digital Plus) and E-AC-3 compressed audio, including DD+ Atmos (aka DD+ JOC)
- Remote Ethernet configuration through Ross DashBoard software
- Power: 10 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-HA5-4K openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion from HDTV Supply today?
AJA OG-HA5-4K openGear 4K/UltraHD/2K/HD/SD HDMI 2.0 to 3G-SDI Conversion Specifications:
- Video Formats
- (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 720x576p
- (SD) 720x576i
- (SD) 720x480p
- (SD) 720x480i
- Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in the Download / Documents section of the website product page.
- Video Input Digital
- 1x HDMI Type A connector, HDMI v2.0b
- HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
- HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
- YCbCr 4:2:2/4:4:4/4:2:0
- RGB 4:4:4, SMPTE or Full level
- 24, 30, or 36-bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 720x576p 50
- (SD) 720x576i 50
- (SD) 720x480p 59.94
- (SD) 720x480i 59.94
- HDCP Decryption
- Not supported. By definition, SDI outputs are unencrypted.
- Video Output Digital
- 4x 3G-SDI BNC, SMPTE-259/292/424
- YCbCr 4:2:2/4:4:4
- RGB 4:4:4, SMPTE or Full level
- 10-bit
- Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping
- 4x 3 Gb SDI (Level A or B Dual Link)
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 4x 1.5 Gb SDI
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
- 2x 3 Gb SDI (Level B Dual Stream)
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
- 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
- (HD) 1920x1080p 50, 59.94, 60
- 1x 3 Gb SDI (Level A or B Dual Link)
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p** 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
- *PsF is Level B Dual Link
- **1280x720p is Level A Only
- Audio Pass-Through Formats
- PCM
- Dolby Digital (AC-3)
- Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
- Audio Input Digital
- HDMI embedded audio, 24-bit, 8-channel
- Audio Output Digital
- SDI embedded audio, 24-bit, 8-channel
- User Interface
- openGear DashBoard network control software via Windows, macOS, or Linux
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 10.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
