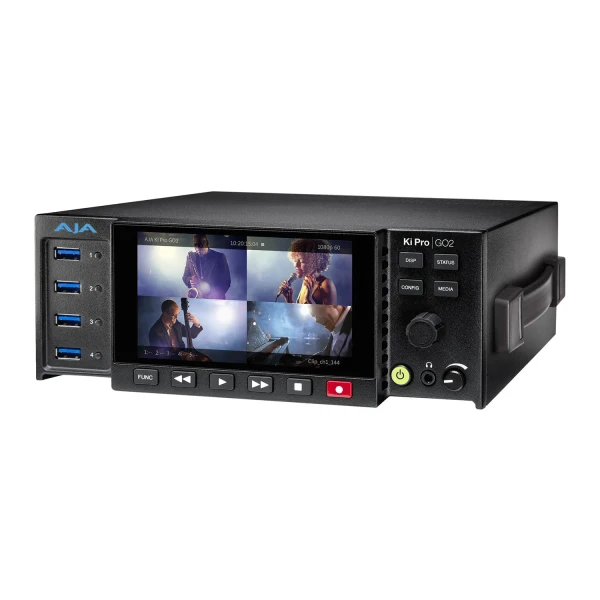

This AJA Ki Pro GO2 Next Generation Digital Recorder featuring HEVC is a portable multi-channel H.265 (HEVC)* and H.264 (AVC) recorder offering up to 4-channels of simultaneous HD or SD recording to qualified USB drives and/or network storage with redundant recording capabilities.
4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provide connections to a wide range of video sources, including any 3G-SDI signal from a router for example, professional and prosumer cameras and DSLRs.
Incoming video sources do not have to be genlocked due to Ki Pro GO2's input frame synchronizers.
Ki Pro GO2 also features AJA's high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs.
High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel.
Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI or SDI display, and Enhanced Super Out offers timecode, media status and audio meter overlays over the SDI and HDMI monitor outputs.
Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO2 is well suited for use in any production environment be it a global concert tour or your local house of worship.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- Multi-channel H.265 (HEVC) and H.264 (AVC) recording
- Up to 4 channels of HD recording, with single-channel playback
- Easy-to-use web UI, compatible with standard web browsers
- Front panel button controls with integrated HD resolution screen
- 5x USB recording media ports, compatible with off-the-shelf USB 3.2 Gen 1 media
- Onboard exFAT drive formatting
- Real time recording to network (SMB) storage
- Redundant recording to user selectable destinations – USB or SMB
- Built-in Frame Syncs
- 4x 3G-SDI inputs
- 4x 3G-SDI outputs
- 1x 3G-SDI monitoring output
- 4x HDMI inputs
- 1x HDMI monitoring output
- HDMI and SDI multi-channel matrix monitoring
- HDMI and SDI Enhanced Super Out for monitoring: timecode, media status and audio levels
- Single-channel H.265 or H.264 playback
- Selectable VBR recording settings with 5 options
- Timecode SDI RP-188 Input Support: Time of Day or Timecode Value
- LTC Support, available using 1-channel of Analog Audio In
- Balanced XLR analog audio inputs, mic/line/48v switchable
- 2-channel embedded audio per video input
- Network web UI based file downloads
- Stand-alone operation
Why not buy this AJA Ki Pro GO2 Next Generation Digital Recorder featuring HEVC from HDTV Supply today?
- Video Formats
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60*
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30*,**
- (HD) 720p 50, 59.94, 60
- (SD) 525i 59.94*
- (SD) 625i 50*
- * Recording will be converted to progressive
- ** PsF input support only
- Note: Multi-channel recording requires the same frame rate and resolution for all input sources.
- Video Codec Support
- Supports H.265/HEVC, up to 15 Mbps recorded output
- Supports H.264/MPEG-4, up to 25 Mbps recorded output
- Audio Codec Support
- 4x audio compression codecs
- 2-channel audio support for each
- Up to 320 kbps
- MPEG-4 AAC-LC
- Codec Container
- .MP4
- Removable Storage
- 5x USB 3.2 Gen 1 (5 Gbps) ports
- USB 2.0 (480 Mbps) compatible
- USB 3.0 (5 Gbps) compatible*
- USB 3.2 Gen 1 (5 Gbps) compatible*
- 5V, 1A max current per port
- *Also referred to as SuperSpeed USB
- Removable Storage File System Support
- FAT16
- FAT32
- exFAT
- In-system formatting support for exFAT only
- Network Storage
- SMB support via GigE port*
- Only 1 network storage device can be used at any one time
- Connection via IP address or DNS entry
- Requires domain name, domain user name, and user password
- Customer must ensure sufficient bandwidth is available for recording*
- *GigE network connectivity to storage is required, with 150 Mbps of bandwidth permanently available for media storage
- SMB Protocols Supported
- SMB 3.1.1
- SMB 3.0.2
- SMB 3.02
- SMB 2.1
- SMB 2.0
- Video Input
- 4x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
- 4x HDMI Type-A connectors
- HDMI v1.4a
- 4:4:4 RGB 8/10-bit (Deep Color)
- 4:2:2 YCbCr 8/10/12-bit
- 4:2:0 YCbCr 8-bit
- Video Output
- 5x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
- 1x HDMI Type-A connector
- HDMI v1.4a
- 4:4:4 RGB 8/10-bit (Deep Color)
- 4:2:2 YCbCr 8/10/12-bit
- 4:2:0 YCbCr 8-bit
- Audio Input
- 4x SDI audio inputs
- 2-channel, 24-bit embedded audio
- 48 kHz sample rate, synchronous
- Sample rate converted to 48 kHz internally
- 4x HDMI audio inputs
- 2-channel, 24-bit HDMI embedded audio
- 32 kHz, 44.1 kHz, 48 kHz sample rates, synchronous
- Sample rate converted to 48 kHz internally
- 2x XLR inputs
- Line, Mic, and +48V Phantom Power Mic levels supported (selectable by rear switch)
- +24 dB full scale digital
- ±0.3 dBFS 20 Hz to 20 kHz response
- THD+N ≤ -90 dB
- Audio Output
- 5x SDI embedded outputs
- 2-channel, 24-bit embedded audio
- 48 kHz sample rate, synchronous
- 1x HDMI embedded output
- 2-channel, 24-bit embedded audio
- 48 kHz sample rate, synchronous
- 1x Stereo unbalanced headphone jack (3.5mm) with volume control
- 2-channel unbalanced RCA connectors
- Video Conversion
- Deinterlacing for recording
- Interlacing for playback (optional)
- PsF to progressive conversion
- Timecode
- SDI RP 188 / SMPTE 12M via SDI BNC
- LTC input (via Analog Audio XLR In R)
- TC Super Out
- Reference Input
- External, 2x BNC
- Looping, nonterminating
- HD Tri-level Sync and SD Analog Composite supported
- 525i 59.94 and 625i 50 reference formats supported
- Network Interface
- 1x LAN connector (RJ-45, 10/100/1000)
- Embedded web server for remote control
- Configuration and Transport Control via Web Interface
- Clip download via Web Interface
- Remote control via REST
- User Interface
- Rotary Selector knob
- Dedicated backlit transport controls and menu buttons
- Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status overlays
- Size (W x D x H)
- 8.64" x 10.59" x 3.31" (219.46 x 268.90 x 84.08 mm)
- Weight
- 5.1 lbs (2.3 kg)
- Power
- External power supply required
- Enclosure: Dual, redundant, 12-18VDC regulated, 4-pin XLR, 55W typical, 90W max
- AC adapter included: 100-240VAC, 50/60 Hz, universal input, 12V, 7A output
- Optional redundant AC adapter sold separately, KPU-PWR-SUPPLY
- Environment
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
