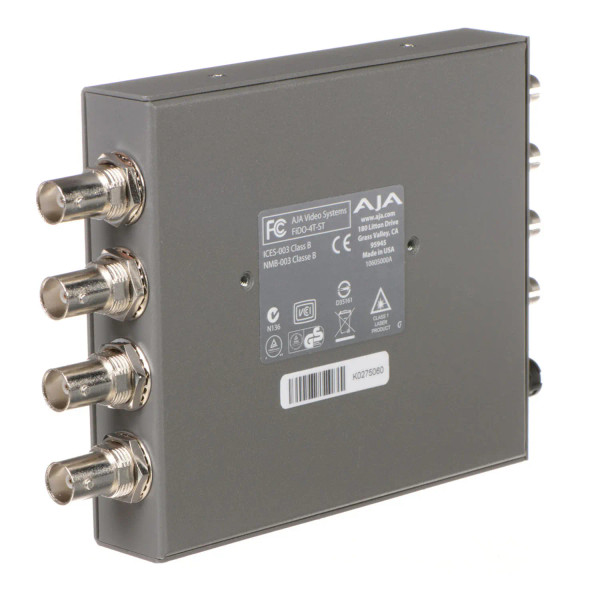

This AJA FiDO-4T-ST 4-Channel 3G-SDI to Single-Mode ST Fiber Transmitter offers unmatched flexibility and cost efficiency for SDI to Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
AJA FiDO-4T-ST 4-Channel 3G-SDI to Single-Mode ST Fiber Transmitter Features:
- 4-Channel 3G-SDI to Single Mode ST Fiber Transmitter
- 4 simplex output connection (ST connector)
- 4 independent channels of 3G/HD/SD-SDI input
- 4K/UltraHD-SDI over 4 fiber links
- Supports pass-through of SDI metadata, including HDR
- Uses 5-20VDC power (Universal power supply included)
- Five year warranty
Why not buy this AJA FiDO-4T-ST 4-Channel 3G-SDI to Single-Mode ST Fiber Transmitter from HDTV Supply today?
AJA FiDO-4T-ST 4-Channel 3G-SDI to Single-Mode ST Fiber Transmitter Specifications:
- Video Formats
- 150 Mbps - 3 Gbps, format agnostic
- Video Input Digital
- 4-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
- Video Output Digital
- 4-channel independent 3G-SDI Single Mode ST Fiber Output connectors, SMPTE-297
- Nominal Wavelength: 1310 nm
- Optical Power: -8dBm (Min), -3dBm (Max)
- Extinction Ratio: 9dB (Typ)
- Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- All other rates are passed through and not reclocked
- Size (w x d x h)
- 4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6mm)
- Weight
- 0.8 lb (0.4 kg)
- Power
- 5 watts, max
- Uses 5-20VDC power, universal power supply included
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
