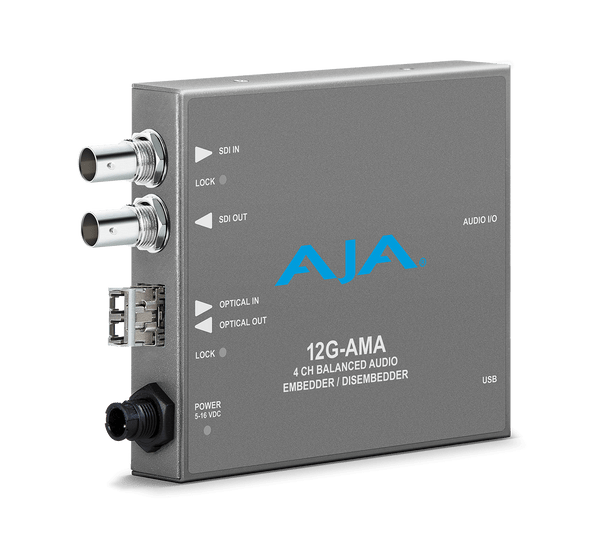

AJA 12G-AMA-R 12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver Quick Technical Summary
The AJA 12G-AMA-R is a professional 12G-SDI fiber receiver and audio embedder/disembedder supporting SD, HD, 2K, UltraHD, and 4K workflows.
It supports SMPTE-compliant 12G-SDI transmission over LC fiber with embedded audio, HDR pass-through, and automatic video format detection
Core Specifications
- Product Type: 12G-SDI Fiber Receiver
- Brand: AJA
- Model: 12G-AMA-R
- Video Resolution: Up to 4K/UltraHD
- Video Input: 1x 12G-SDI BNC
- Video Output: 1x 12G-SDI BNC
- Fiber Connector: LC Fiber
- HDR Support: Yes
- Audio Support: Embedded Audio up to 16 Channels
- Power Supply: +5-16VDC
- Warranty: 5 Years
Supported Video Formats
- 4K 4096x2160p up to 60fps
- UltraHD 3840x2160p up to 60fps
- 2K 2048x1080p
- HD 1080p and 720p
- SD 525i and 625i
Video Standards
- SMPTE 259
- SMPTE 292
- SMPTE 424
- SMPTE 2081
- SMPTE 2082
Audio Features
- 4-channel balanced analog audio embedder/disembedder
- 24-bit embedded audio support
- Supports up to 16 audio channels
- XLR breakout cable included
Connectivity
- 12G-SDI BNC input/output
- LC Fiber connectivity
- USB configuration port
- DIP switch configuration
Recommended Applications
- Broadcast production
- Professional AV installations
- 4K video infrastructure
- Fiber-based SDI transmission
- Live event video transport
Compatibility
- Compatible with SMPTE-compliant broadcast systems
- Supports professional SDI workflows
- Designed for professional AV environments
- Supports HDR production workflows
This AJA 12G-AMA-R 12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.
Fiber models offer single link fiber I/O including LC and ST options.
Audio disembedding is always functional, providing four analog outputs.
Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.
Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.
AJA 12G-AMA-R 12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver Features:
- 12G-SDI Input and Output up to 4K/UltraHD
- 4-channel balanced audio Embedder/Disembedder
- Ships with a Fiber LC single channel SFP Receiver for extending 4K/UltraHD signals over long distances
- Audio Disembedding is always functional with four Analog outputs
- Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
- Selectable Analog audio levels
- Supports HDR pass-through
- Automatically detects and configures the input video standard
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 4-channels In and 4-channels over eight XLR connectors
- Configure via USB port and supplied AJA Mini-Config software
- DIP Switch configuration
- +5-16 VDC Power
- Five year warranty
READ MORE
Why not buy this AJA 12G-AMA-R 12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver from HDTV Supply today?
AJA 12G-AMA-R 12G-SDI Input and Output up to 4K/UltraHD with LC Fiber Receiver Specifications:
- Video Formats
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Note: Raster and frame rate dependent. Please see 12G-AMA Video Formats in Documents and Manual.
- Video Input
- Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
- Fiber Input (12G-AMA-R, 12G-AMA-TR)
- 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
- Fiber Input (12G-AMA-R-ST)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
- Digital
- Video Output
- Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A, B DL, or B DS, SMPTE 425
- Fiber Output (12G-AMA-T, 12G-AMA-TR)
- 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
- Fiber Output (12G-AMA-T-ST)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 2 dBm (max)
- Extinction Ratio: 3.4 dB (min)
- Digital
- Cable Equalization (Belden 1694A coax)
- 12 Gbps, 65m
- 6 Gbps, 125m
- 3 Gbps, 190m
- 1.5 Gbps, 200m
- 270 Mbps, 405m
- Video Path Delay
- Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc.
- Video Out is undefined when no input.
- Video Latency, time measured between video input and video output connector:
- 12G = 3.2 µsec
- 6G = 3.2 µsec
- 3G level B (Dual Stream HD mode) = 6.3 µsec
- 3G level A = 3.2 µsec
- HD (1.5 Gb) = 6.3 µsec
- SD (270 Mb) = 17.2 µsec
- Audio Inputs and Outputs
- Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
- Breakout cable provided with 1x 25 pin D male connector:
- 4x XLR female input breakout connectors
- 4x XLR male output breakout connectors
- Digital Audio Converters
- 24-bit Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Up to 16-channels supported
- Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
- Path Audio Latency
- Embed Path 1100 µsec
- Disembed Path 1200 µsec
- Analog Audio Levels
- Configured via Mini-Config software:
- Pro 1: 0 dBfs = +24 dBu
- Pro 2: 0 dBfs = +18 dBu
- Pro 3: 0 dBfs = +15 dBu
- Consumer 1: 0 dBfs = +12 dBu
- User Interface
- External DIP switch
- USB port used with Mini-Config software application to configure the device via PC/Mac
- Size (w x d x h) 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
- Weight 0.6 lb (0.3 kg)
- Power +5-16VDC, 10 watts. power supply required, included with purchase
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
