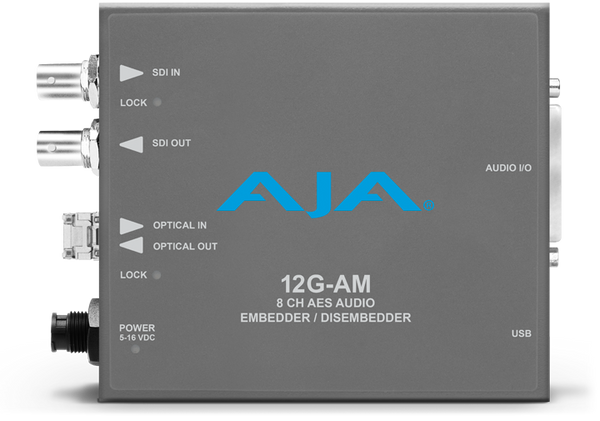

This AJA 12G-AM-R 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.
Fiber models offer single link fiber I/O including LC and ST options.
AES Audio disembedding is always functional, providing four AES outputs.
Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.
The 12G-AM automatically detects and configures the input video standard.
READ MORE
AJA 12G-AM-R 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP Features:
- 12G-SDI Input and Output up to 4K/UltraHD
- 8-channel balanced AES audio Embedder/Disembedder
- Ships with a LC Fiber single channel SFP Receiver for extending 4K/UltraHD signals over long distances
- AES audio Disembedding is always functional with four AES outputs
- AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
- Selectable AES audio levels
- Supports HDR pass-through
- Automatically detects and configures the input video standard
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 8-channels In and 8-channels Out over?ight XLR connectors
- USB connectivity via AJA Mini-Config software
- DIP Switch configuration
- 5-16 VDC Power
- Five year warranty
Why not buy this AJA 12G-AM-R 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP from HDTV Supply today?
AJA 12G-AM-R 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP Specifications:
- Video Formats
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Note: Raster and frame rate dependent. Please see 12G-AM Video Formats in Documents and Manual.
- Video Input Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A or B DL, SMPTE 425
- Fiber Input (12G-AM-R, 12G-AM-TR)
- 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
- Fiber Input (12G-AM-R-ST)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Wavelength: Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
- Overload Power: -2 dBm (min)
- Video Output Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A or B-DL, SMPTE 425
- Fiber Output (12G-AM-T, 12G-AM-TR)
- 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 0.5 dBm (max)
- Extinction Ratio: 5.4 dB (min)
- Fiber Output (12G-AM-T-ST)
- 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 2 dBm (max)
- Extinction Ratio: 3.4 dB (min)
- Cable Equalization (Belden 1694A coax)
- 12 Gbps, 65m
- 6 Gbps, 125m
- 3 Gbps, 190m
- 1.5 Gbps, 200m
- 270 Mbps, 405m
- Video Path Delay
- Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
- Video Latency, time measured between video input and video output connector:
- 12G = 3.2 ?ec
- 6G = 3.2 ?ec
- 3G level A = 3.2 ?ec
- 3G level B-DL = 6.3 ?ec
- HD (1.5 Gb) = 6.3 ?ec
- SD (270 Mb) = 17.2 ?ec
- Audio Inputs and Outputs
- AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs
- Breakout cable provided with 1x 25 pin D male connector:
- 4x XLR female input breakout connectors (AES3 110 ohm)
- 4x XLR male output breakout connectors (AES3 110 ohm)
- Audio Data Formats
- AES3-2003
- Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Up to 16-channels supported
- Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
- Embed Path Audio Latency
- (Time measured between audio input and video output connector):
- 1500 ?ec (SRC ON)
- 400 ?ec (SRC OFF)
- Disembed Path Audio Latency
- (Time measured between video input and audio output connector):
- 210 ?ec
- User Interface
- External DIP switch
- USB port used with Mini-Config software application to configure the device via PC/Mac
- Size (w x d x h)
- 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
- Weight
- 0.6 lb (0.3 kg)
- Power
- +5-16VDC, 10 watts, power supply required, included with purchase
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
