We are sorry but the AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black is no longer available and has been discontinued by the manufacturer. We've left this page up for reference only.
Please call us at 833-965-3722 immediately for the replacement product.

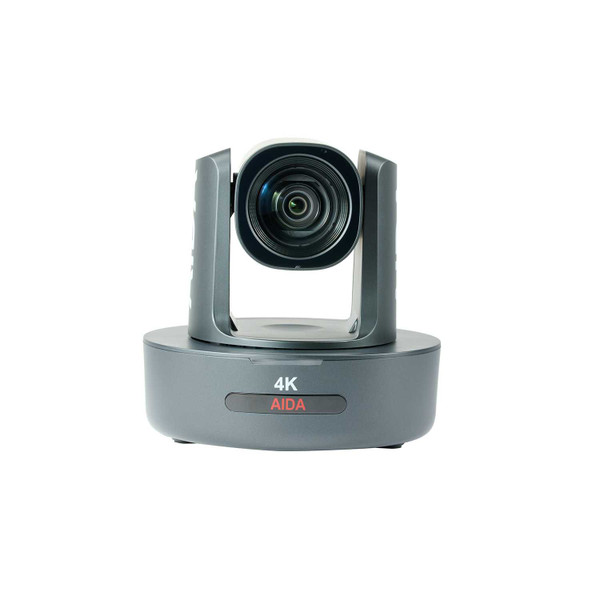

The AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black, bought from HDTV Supply, introduces a powerful entry point into 4K video workflows.
With a wide-angle field of view that transitions into a precise 12X optical zoom, this camera delivers stunning 2160p resolution via NDI|HX, HDMI, or both.
Capture your audience’s attention with the exceptional detail and clarity that define the PTZ4K-NDI-X12B.
This PTZ camera features automatic target tracking—no additional equipment required—thanks to its advanced A.I.
Facial Algorithm for smooth and intelligent motion detection. While Full-HD streaming often suffers from compression artifacts, downscaling from 4K to 1080p offers a noticeable boost in image quality, even to the untrained eye.
AS ALWAYS, HDTV SUPPLY OFFERS FREE SHIPPING, FREE RETURNS, FREE LIFETIME TECHNICAL SUPPORT, SHIPPING ON THE SAME DAY, GIVES YOU TRACKING NUMBERS, ALWAYS SHIPPED PRODUCTS WITH THE LATEST FIRMWARE, AND MORE.
AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black Features:
- NDI® HX streaming capable for low latency video streaming and PTZ control over NDI® HX Protocol.
- 4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
- Advanced digital image processor provides vivid and detailed images with full access feature sets.
- Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
- Simultaneous 4K60p over HDMI and NDI®|HX/SRT/RTSP/RTMP*
- Simultaneous 4K60p over HDMI and USB3.0
- 4K 12X optical zoom module with wide viewing angle, perfect up to 80ft.
- 3.5mm Line-in for no audio/video delay over HDMI/IP/NDI protocols.
- Built-in OSD controls for customizable image settings.
- Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
- Comes in either a White or Black shell for further customization
- Features our new AI algorithm operated Motion autotracking feature
Why not buy this AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black today?
AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black Specifications:
- VIDEO
- Image Sensor: 1/1.8” Progressive CMOS
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 2.0 μm (H) x 2.0 μm (V)
- Resolution: 2160, 1080p & 1080i: 3840x2160, 1920 x 1080
- Resolution Rate:
- 2160 60p/59.94p/50p/30p/29.97p/25p/ 24p/23.98p/ 1080 60p/59.94p/50p/30p/29.97p/25p/ 24p/23.98p
- 1080 60i/59.94i/50i/ 720 60p/59.94p/50p/30p/29.97p/25p
- Output: HDMI, NDI® HX / RTSP / RTMP / SRT, USB 3.0
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.1Lux
- White Balance: Auto & Manual (9000 - 11,000 K)
- FUNCTION
- White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor, Temperature
- Focus: Auto, Manual
- Shutter Speed: 1 to 1/10,000 Sec
- Autotracking: A.I. Algorithm Facial Target Tracking
- LENS
- Lens: 12X 4K Optical Zoom
- Focal length: 3.4~40.3mm
- Viewing Angle: 80.5° (wide) ~ 7.6° (tele)
- PTZ
- Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
- Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s
- Presets: 128 Positions (via web), 10 Positions (via remote)
- AUDIO
- Sample Rate: 16/24/32 Bits
- Input: 3.5mm TRS Stereo Audio Port
- PHYSICAL
- Camera Control: Protocol: VISCA Over IP, Interface: RS-232C IN & OUT, RJ-45, Remote Controller
- Operation Temp: 32°F - 104°F
- Dimension: 197mm x 197mm x 186mm, 7.75” x 7.75” x 7.3”
- Weight: 2.1kg / 4.63 lb
- Power: 12VDC (+9 - +15VDC), PoE+ (standard IEEE802.3at)
Why not buy this AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black today?
AIDA Imaging PTZ4K-NDI-X12B Spec Sheet
Why not buy this AIDA Imaging PTZ4K-NDI-X12B NDI|HX 4K NDI/IP/SRT/HDMI PoE PTZ Camera 12X Zoom Black today?
Can this camera stream over NDI and other network protocols, and which protocols are listed?
A: Yes — the camera supports NDI® HX streaming and also lists RTSP, RTMP, and SRT as network output options.
Can the camera output 4K60 video on more than one interface at the same time?
A: Yes — the product lists simultaneous 4K60p output over HDMI and NDI|HX/SRT/RTSP/RTMP, and also lists simultaneous 4K60p over HDMI and USB3.0.
Will the camera track faces automatically without extra hardware or software?
A: Yes — it includes an A.I. facial target autotracking feature that operates onboard.
Does the camera accept a line-level audio input and embed it in the video outputs?
A: Yes — the camera has a 3.5mm TRS stereo audio input and the page states 3.5mm Line-in for no audio/video delay over HDMI/IP/NDI protocols.
What PTZ movement limits and speeds should I plan for when mounting or programming tours?
A: Plan for pan up to 340° and tilt from +90° to -30°, with pan speeds up to 120°/s and tilt speeds up to 80°/s.
Does the camera provide adjustable white balance and manual focus options for studio color control?
A: Yes — it supports multiple white balance modes including Auto and Manual, and both Auto and Manual focus.
What image resolutions and frame rates does the camera list for output?
A: The camera lists 3840x2160 (2160) and 1920x1080 (1080) with frame rates including 2160 at up to 60p and multiple 1080/720 progressive and interlaced rates.
What control protocols and physical control interfaces are available for integration?
A: You can control it over VISCA Over IP and via RS-232 (IN & OUT) and it also lists RJ-45 and a remote controller as control interfaces.
Is there a stated minimum illumination level for low-light planning?
A: Yes — the camera lists a minimum illumination of 0.1Lux.
