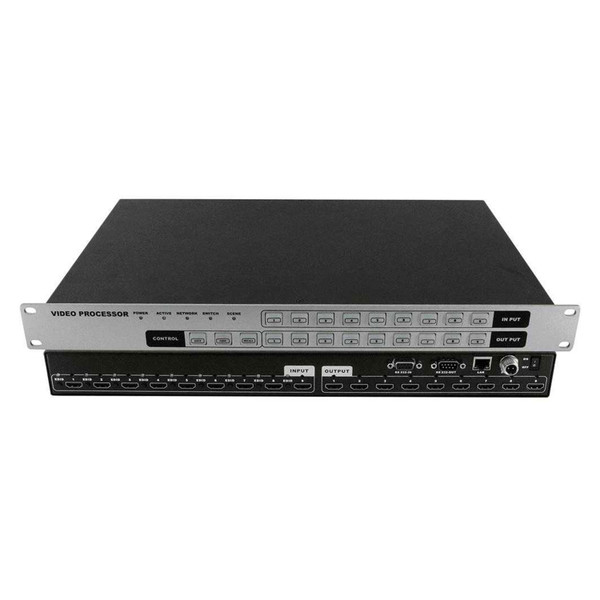

4K 9x9 HDMI Matrix Router w/Apps & WEB GUI


Part Number:
Contact us for Availability
4K 30Hz 9x9 HDMI Matrix Switch
iOS, Android & WEB GUI Control
Supports Channel Fast Closure
Crestron, URC, Elan, RTI & Control4 Drivers
Supports EDID One Key Handshakes
WolfPack HDMI Switchers HDTV Supplys WolfPack™ 4K 9x9 HDMI Matrix Router is a new generation HDMI matrix switchers developed to meet with the large market needs. Users can control the switchers via mobile phone, iPad and WEB bi-directional control. Also support Centralized management by IOS/ Android APPs, compatible with HDMI 1.4a, HDCP compatible, support EDID management functions. High-performance with resolution up to 4K2K30Hz switchers support audio video simultaneously switching are widely used in conference room, control center, multimedia room and other applications.

Traditional video matrices usually generate flashing, black, jitter, delay and signal interruption and other shortcomings in the switching process. Our WolfPack 4K 9x9 HDMI Matrix Router allows fast switching to completely overcome the shortcomings of traditional matrices with no flicker, no black, no delay and no signal interruption in the switching process.

This 4K 9x9 HDMI Matrix Switcher allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. It supports optional Control4 & Elan drivers. You can easily control our WolfPack 9x9 HDMI Matrix Switch via only the front panel controls, RS232, included Control4 drivers and a furnished remote control. Most applications of the 9x9 HDMI Matrix Switcher are used in bars and server rooms.

4K 9x9 HDMI Matrix Router Features:

  • No fan, completely silent operation so you can use nearby
  • Supports APP(MCS), WEB GUI, RS232, Front buttons Control
  • Support 2-key fast switching between all the signals
  • 4-core 4 links processing chipset provides up to 6.5 GBPS signal switching processing ability
  • Front buttons with background lights, easier to operate at any time
  • Support EDID one-key handshaking and compatible with HDCP
  • Compatible with 4K2K30Hz 3D@60Hz
  • Deep Color support 48/36/30/24-bit
  • Support LPCM 7.1CH, Dolby True HD, Dolby digital + and DTS-HD Master Audio output
  • Support any signal source displayed simultaneously on multiple displays
  • Support any HDMI signal sources to be viewed on any HDMI displays at any time
  • Support WEB control and APP management, more flexible and user friendly
  • Two-key control method enabling easier and more effective controlling, support 1 port input and multiple ports output when switching images
  • Support channel fast closure
  • Indicator lights of visual buttons enabling the input and output channel operation status to be visible
  • Broadcast level exchange chip increased integration enabling image switching can be realized by a single chip
  • Bi-directional control enabling images can be switched simultaneously by WEB and APP in real time
  • Centralized control function enabling multiple matrices can be controlled by a single control unit. No need to manually modify configuration data
  • Opening Web control codes enabling secondary development
  • Supports EDID learning and EDID adaptive function enabling it to meet the needs of field diversification display devices, and also improved compatibility
  • Support RS-232, front-panel, TCP and IP control
  • Front LCD displays feedback the real-time status
  • Spiral power connectors guaranteed stable power supplying
  • Using broadcast class silent button with blue background lights

Why not buy this 4K 9x9 HDMI Matrix Router today?

4K 9x9 HDMI Matrix Router Specification:

  • Model: CCTV-HDMI-99
  • Description: 9x9 HDMI matrix switcher
  • Input: 9 - HDMI inputs
  • Output: 9 - HDMI outputs
  • Protocol: Support HDMI1.4a, HDCP compatible, EDID Learning
  • Resolution: 4K2K@30Hz and under
  • Transmission Distance: HDMI: 10m
  • Control: Dual RS232(In/ out), LAN(WEB GUI), front buttons, APP
  • Dimension: 480x252x44(mm)
  • Weight: 4KG
  • Consumption: 23W
  • Power Supply: AC 110V-240V 50/60HZ
  • Working Humidity: 10%-90%
  • Working Temperature: -10degC - 50degC
  • Storage Temperature: -25degC - 55degC

Why not buy this 4K 9x9 HDMI Matrix Router today?

Reasons To Buy an HDTV Supply WolfPack Product

Control Drivers

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Free iPad App (iOS)
  2. Free iPhone App (iOS)
  3. Free iPod App (iOS)
  4. Free Android Tablet App
  5. Free Android Phone App
  6. Free Samsung Galaxy Tablet App
  7. Free Samsung Galaxy Phone App
  8. Free Web GUI from any browser is standard
  9. Front panel push-buttons are standard
  10. Optional $100 7" Color Touch Screen on select models (Call)
  11. Dual RS232 ports are standard on select models
  12. Dual TCPIP ports are standard on select models
  13. DTVGame Sports Bar DirecTV™ Control System (Call)
  14. Allonis Sports Bar DirecTV™ Control System (Call)
  15. Free One-Way Control4 Drivers
  16. Optional $99 2-Way Control4 Drivers
  17. Optional $99 URC Drivers
  18. Optional $99 Elan Drivers
  19. Optional $99 RTI Drivers
  20. Optional Harmony Remote Control Codes for select models (Call)
  21. Free Windows PC Control Software
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

DirecTV Controller


HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Why not buy this 4K 9x9 HDMI Matrix Router today?

Q: Does this HDMI Matrix Switch support remote IR from remote TVs?
No. We recommend using RF remote controls.

Q: I see the the optional HDMI extenders come with 2-remote IR cables, will the remote IR work with this matrix?
No, the cables are used when the application has one source and one widescreen. They can't be used with this matrix and need to be set aside and not used.

Q: You have a great selection of 8x8 HDMI Matrix Switchers, do you have a comparison of them?
Yes, see our UNDER $2,000 8X8 HDMI MATRIX COMPARISON to help you make a decision.

Q: Can I use unpowered HDMI over CAT6/6 extenders with this matrix?
We don't recommend them with our matrices, or anyone elses, due to them consuming power from the matrix and the matrices are not designed to power many external devices.

Consider the example of 9 - HDMI balun transmitters that need 0.5a amp each to power it times 9 or 4.5 amps the matrix would have to supply. The power supply of this matrix is rated at 12v at 3.5 amp so in that example the matrix would probably break down and your warranty may be voided. See the companion powered HDMI extenders in the above OPTIONS that have 2-AC adapters.

Q: Would I be able to used an HDMI connection for audio only going to my audio receiver. This way I could get True HD Audio. Will this output work how I am describing?
Yes, provided you do not turn On a display device that might be connected to the Output of your audio receiver. Some older displays do not have the ability to decode anything other than 2 channel stereo and when connected to a receiver via HDMI.

Q: I have a PC with HDMI out, how do I set it up?
When your computer boots up, it looks for an EDID (extended display identification data) from the display to tell it what monitor is connected and what resolution to output. During boot up of the computer you should have ONLY one output selected to one input at a time so that the computer gets the EDID of the display that is selected. If you have multiple outputs selected to one computer, the computer will read the EDID of the last output selected to it. If all your displays are the same, or all displays are capable of running at the same resolution then this step does not matter.

Q: How does the EDID learning function work?
The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

In this case, a 720p stereo HDMI signal output would be probably the safest choice. Nevertheless, the user can force the matrix to learn the EDID of the lowest capable HDMI display among others to make sure all displays are capable to play the HDMI signals normally.

Why not buy this 4K 9x9 HDMI Matrix Router today?

HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.

If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com

For Questionnaire Click Here
